Component Locations

NOTE: Under-dash fuse/relay box may also be referred to as passenger compartment fuse/relay box.
COMPONENT LOCATIONS

Component Location
Driver's Seat Belt Switch In Driver's Seat Belt Buckle.
Integrated Control Unit In Under-Dash Fuse/Relay Block. See Figure .
Under-Dash Fuse/Relay Box Behind Driver's Side Of Instrument Panel. See Fig 1 .
Under-Hood Fuse/Relay Box Passenger's Side Rear Corner Of Engine Compartment. See Fig 2 .
G201 Passenger's Side Of Engine Compartment. See Fig 3 .
G401 Behind Driver's Side Kick Panel. See Fig 4 .
G551 Behind Driver's Side Rear Quarter Trim Panel. See Fig 5 .
G552 Behind Driver's Side Kick Panel. See Fig 5 .

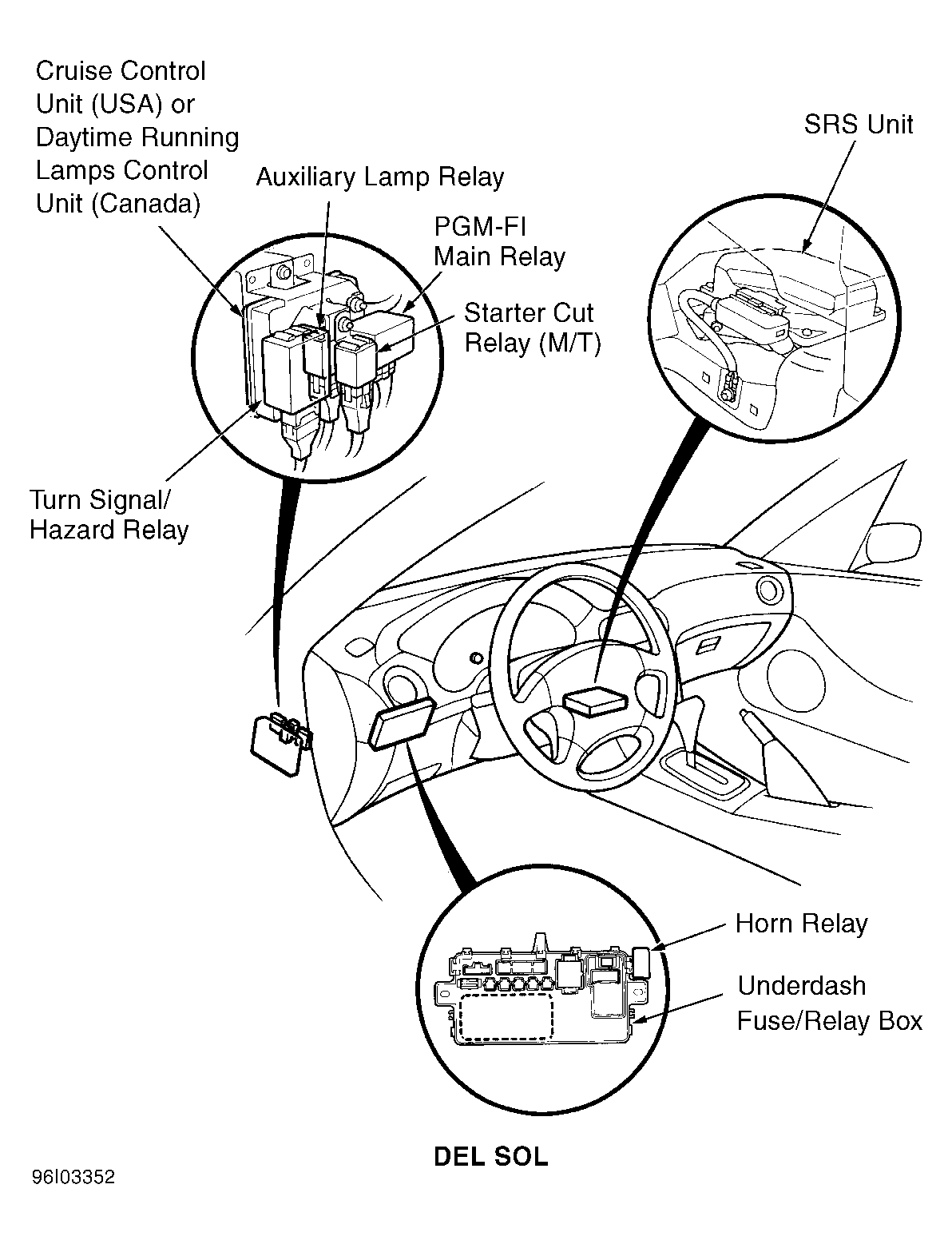

Fig 1: Locating Under-Dash Fuse/Relay Box
G96I03352Courtesy of AMERICAN HONDA MOTOR CO., INC.

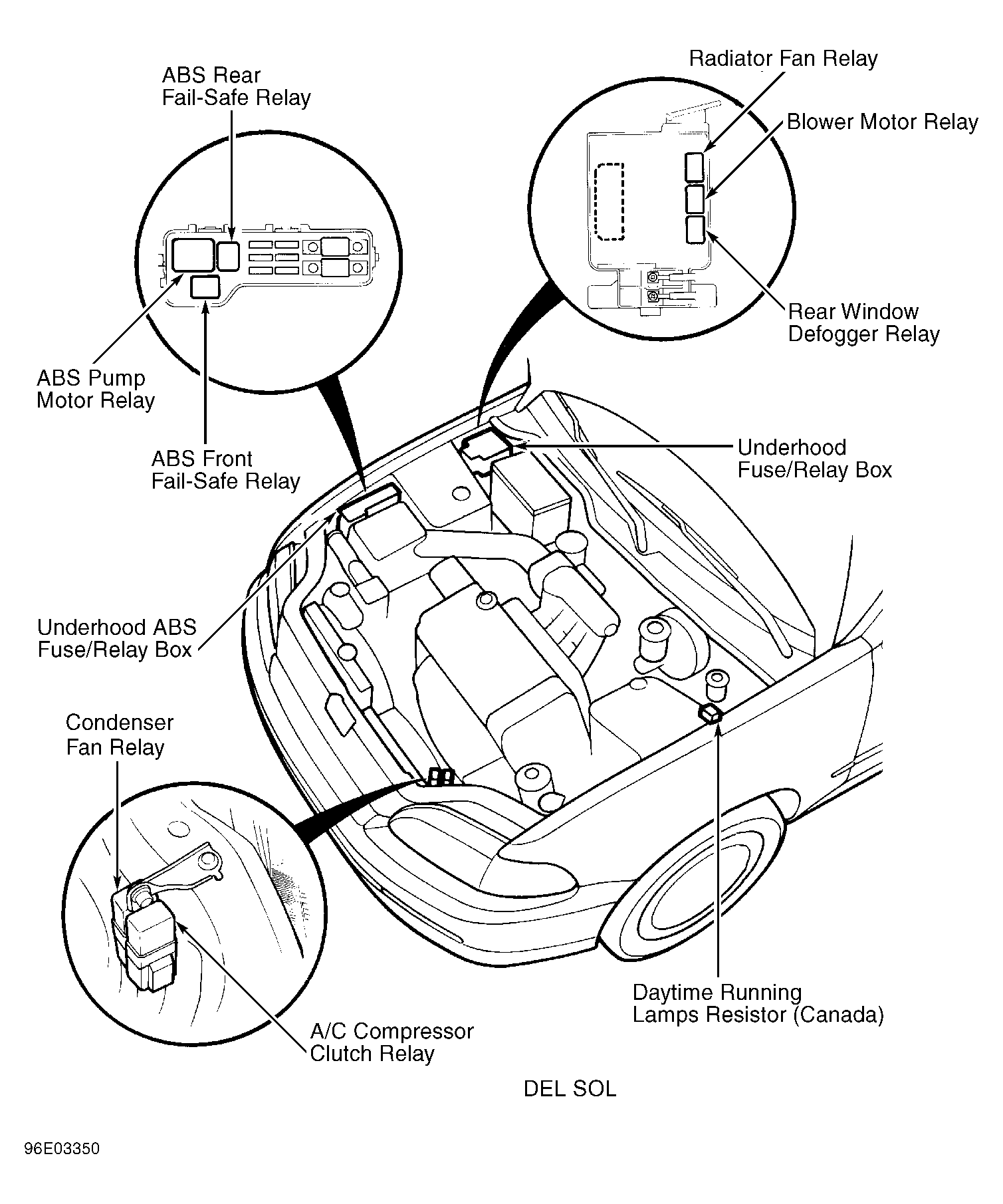

Fig 2: Locating Under-Hood Fuse/Relay Box
G96E03350Courtesy of AMERICAN HONDA MOTOR CO., INC.

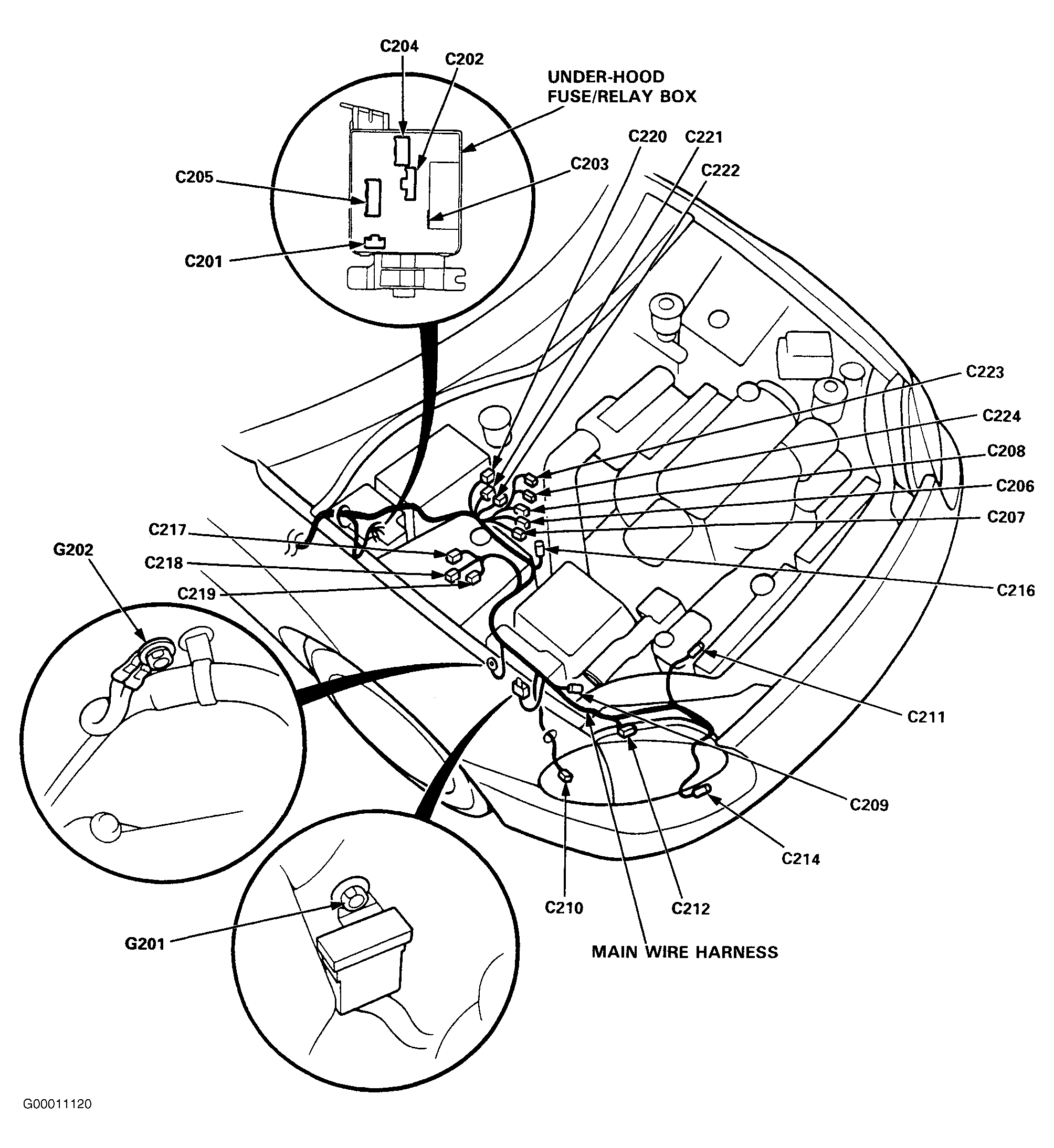

Fig 3: Locating Ground G201
G00011120Courtesy of AMERICAN HONDA MOTOR CO., INC.

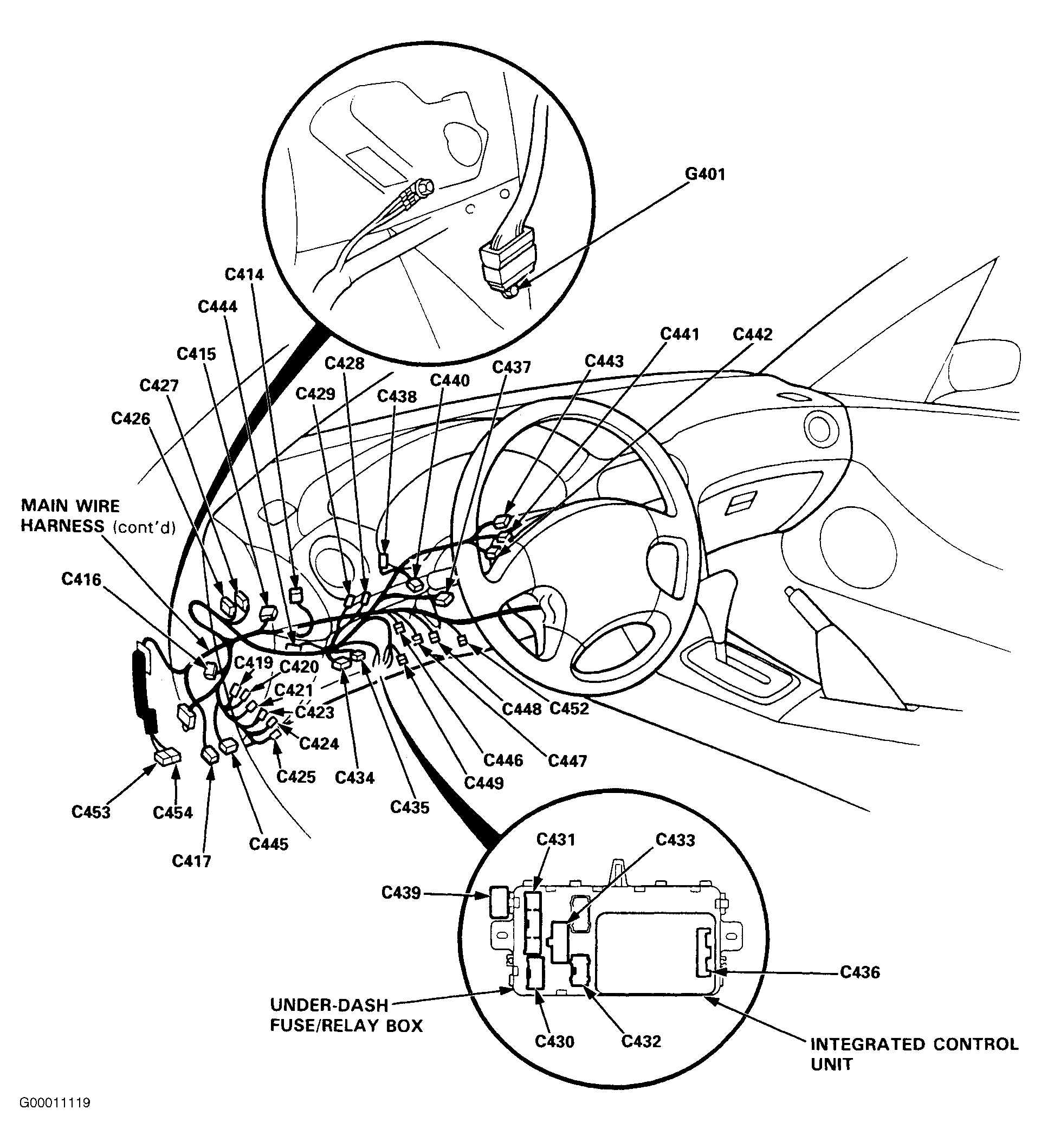

Fig 4: Locating Ground G401
G00011119Courtesy of AMERICAN HONDA MOTOR CO., INC.

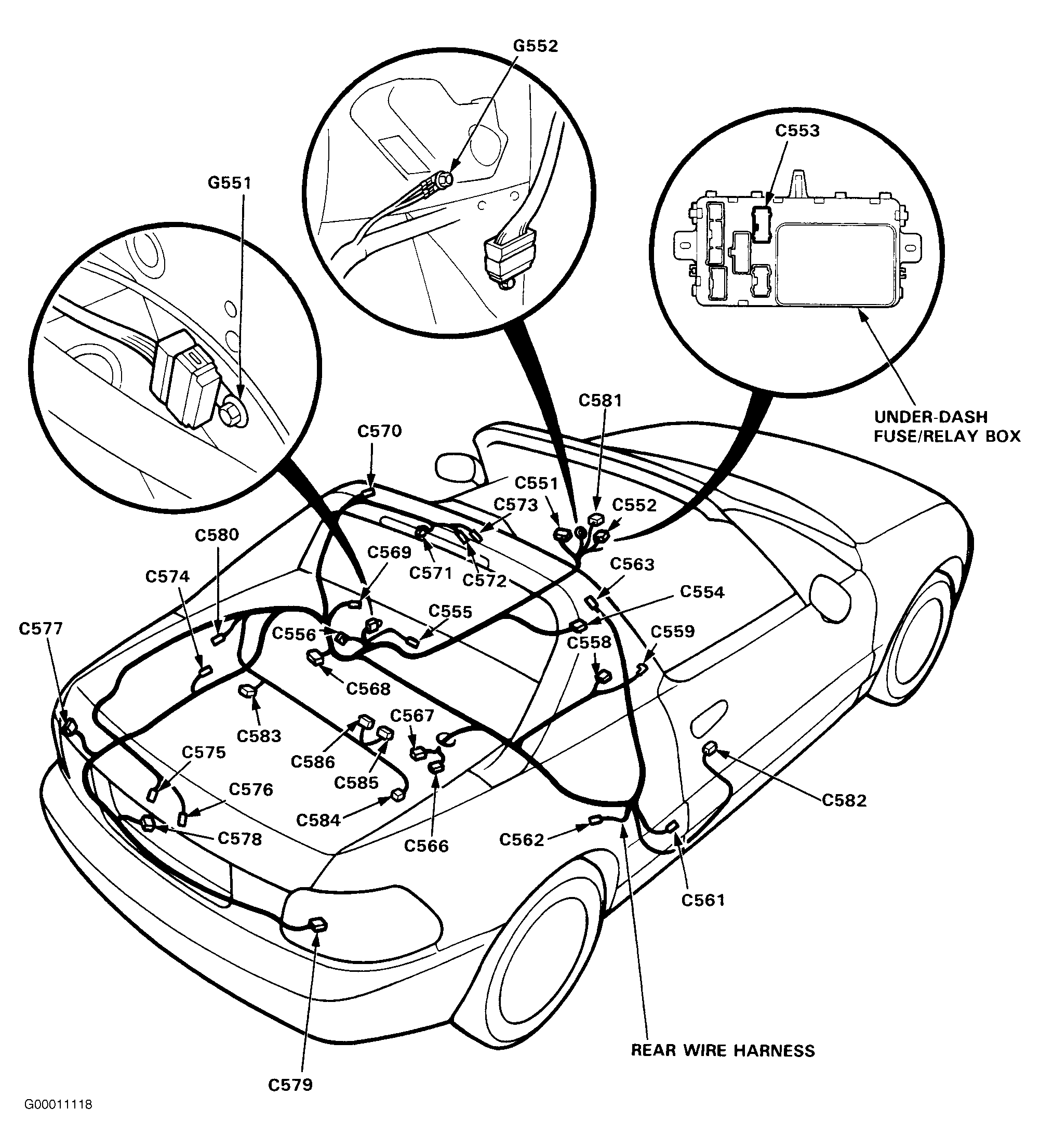

Fig 5: Locating Grounds G551 & G552
G00011118Courtesy of AMERICAN HONDA MOTOR CO., INC.
