Ignition Coil Resistance (Internal Coil)

  1. Turn ignition off. Remove distributor cap. Remove primary leads from ignition coil. Using an ohmmeter, check primary resistance between ignition coil terminals "A" (+) and "B" (-). See Fig 1. Resistance should be as specified. See IGNITION COIL RESISTANCE .
  2. Check secondary resistance between ignition coil terminal "A" (+) and secondary output terminal (coil tower). See IGNITION COIL RESISTANCE . If readings are not as specified, replace ignition coil.

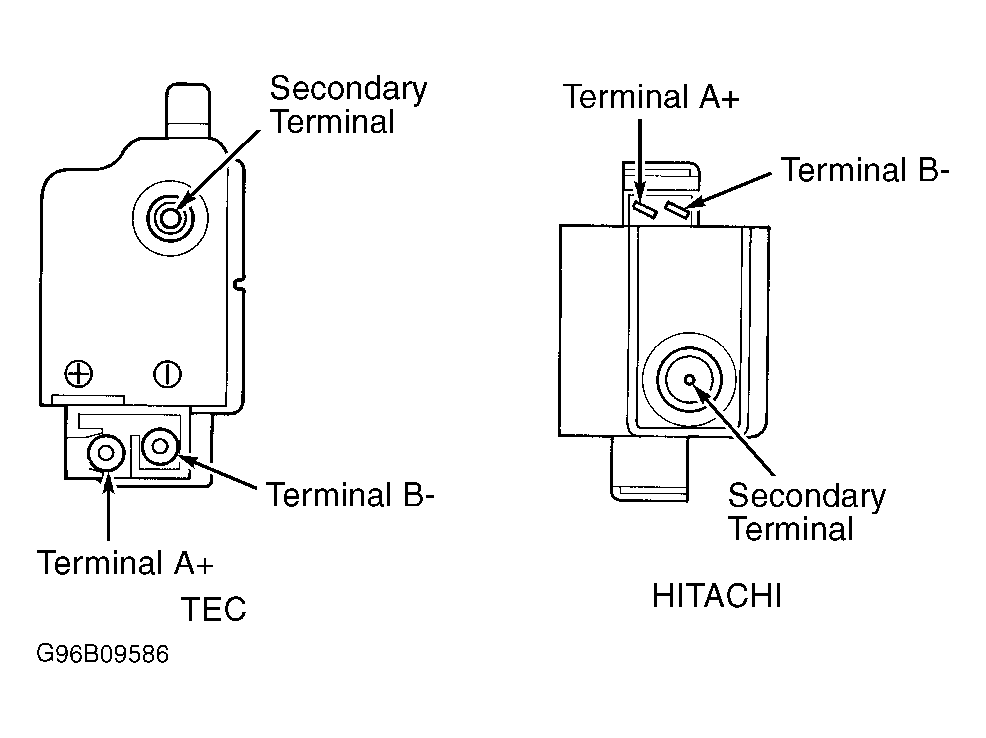

    Fig 1: Identifying Typical Internal Ignition Coil Terminals
    G96B09586Courtesy of AMERICAN HONDA MOTOR CO., INC.
    IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

    Application Primary Secondary
    Civic
    Hitachi .5-.6 22,400-33,600
    Tec .6-.8 12,800-19,200
    Civic Del Sol .6-.8 12,800-19,200
