Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit (Civic) | Behind right kick panel. |
| ABS Control Unit (Del Sol) | Behind seats. See Figure. |
| ABS Modulator Unit | Lower right rear of engine compartment. |
| Cruise Control Unit (Del Sol) | Behind dash, left of steering column. See Figure. |
| Daytime Running Lamps (DRL) Control Unit (Canada) (Del Sol) | Behind left side of dash. See Figure. |

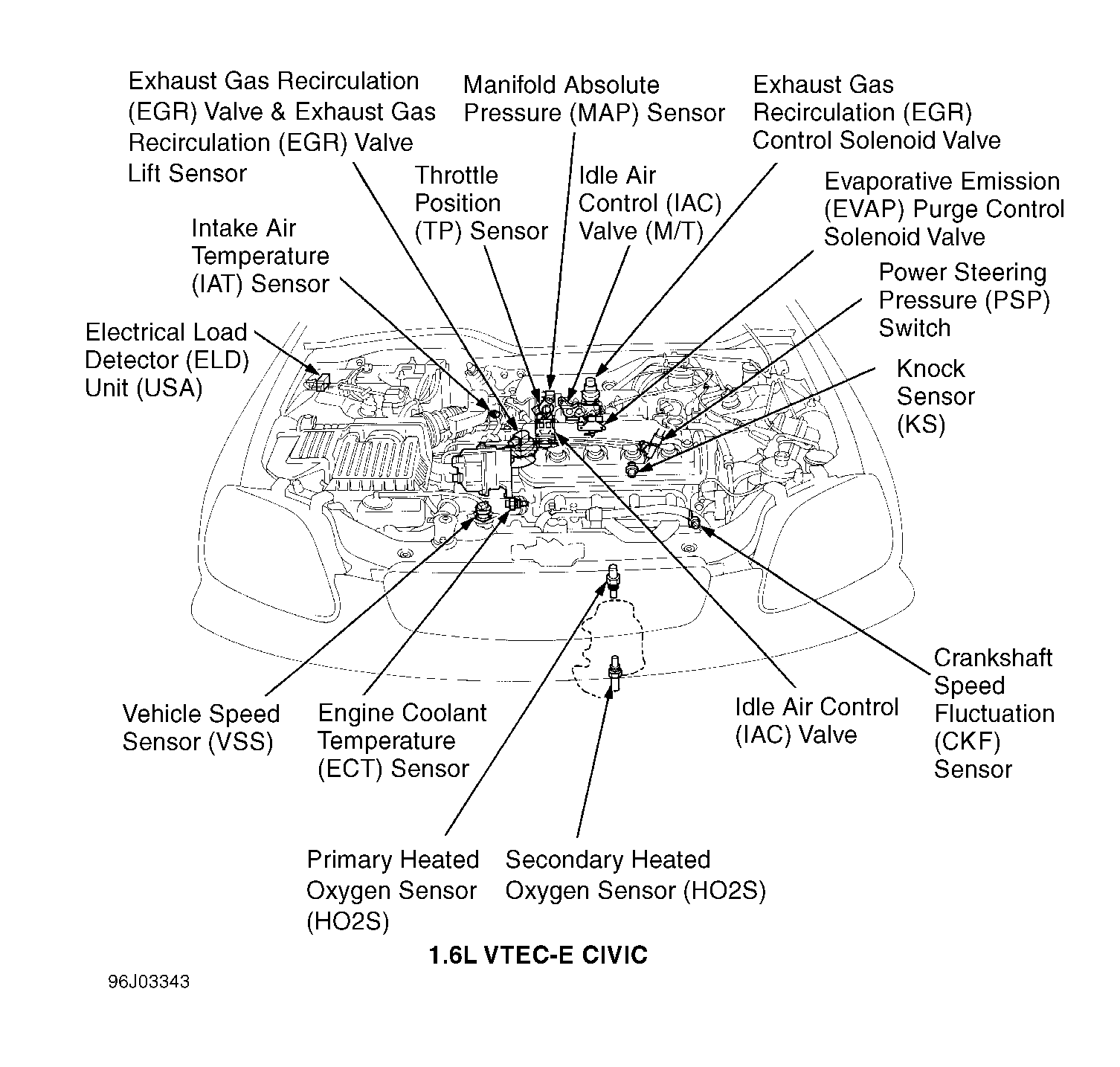

| Electrical Load Detector (ELD) Unit (1.6L VTEC-E) (Civic) | Right rear of engine compartment, underside of under-hood fuse/relay box. See Figure. |

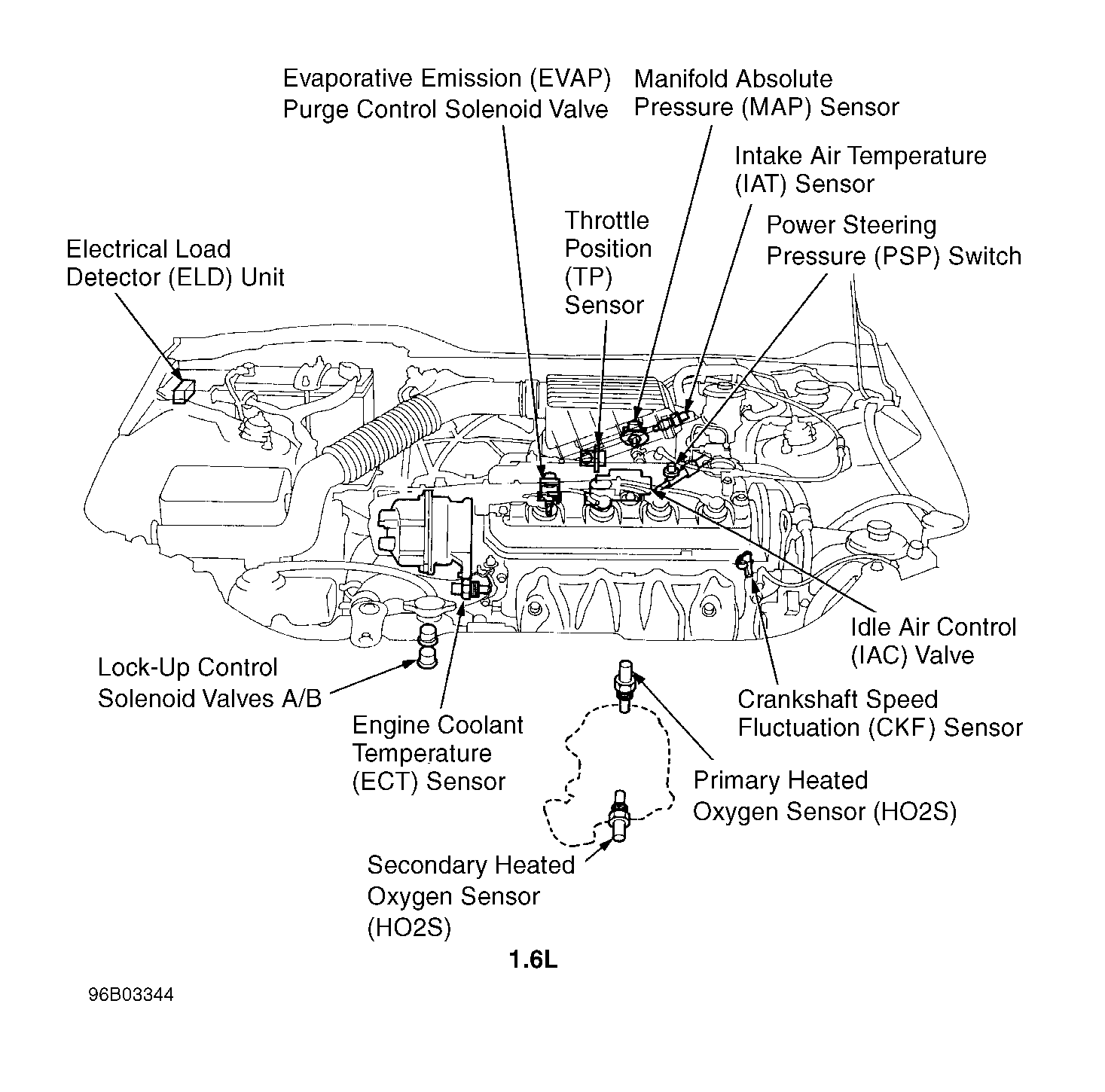

| Electrical Load Detector (ELD) Unit (1.6L) (Del Sol) | Right rear of engine compartment, underside of under-hood fuse/relay box. See Figure. |
| Engine Control Module (ECM) (M/T) | Behind right kick panel. See Figure. |
| Integrated Control Unit (Civic) | Behind left side of dash, on rear of under-dash fuse/relay box. See Figure. |
| Interlock Control Unit (Civic) | Behind dash, left of steering column. See Figure. |

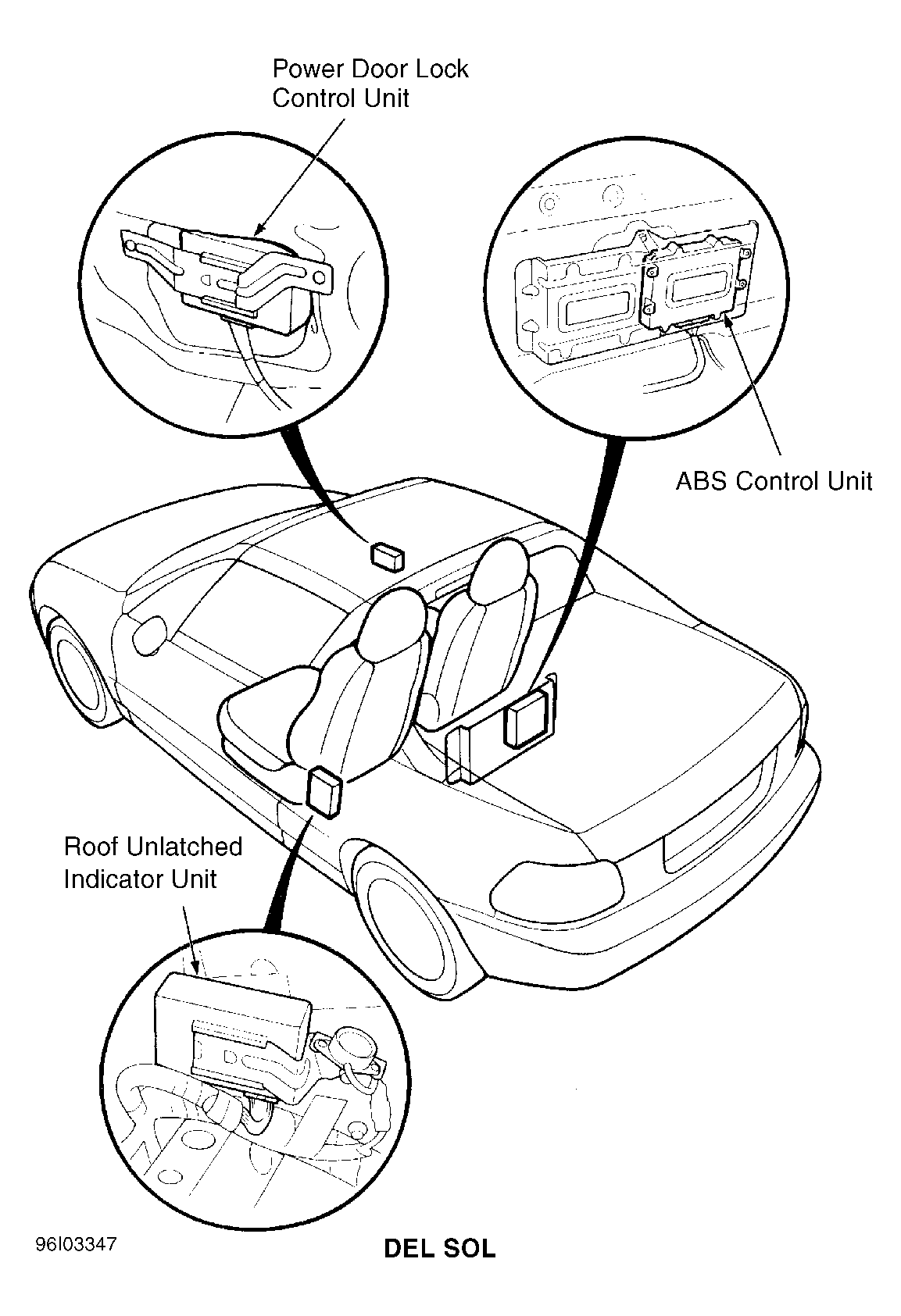

| Power Door Lock Control Unit (Del Sol) | In front of driver's door. See Figure. |
| Powertrain Control Unit (PCM) (A/T) | Behind right kick panel. See Figure. |
| Roof Unlatched Indicator Unit (Del Sol) | Behind left side of driver's seat. See Figure. |
| Security Control Unit (Civic) | Behind left side of dash. |
| Security Control Unit (Del Sol) | Underside of driver's seat. |
| SRS Unit (Del Sol) | Behind center of dash, below radio. See Figure. |
| Transmission Control Module (TCM) (Civic) | Behind left kick panel. See Figure. |
