Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
A/C Compressor Thermal Protector Lower left front of engine, on A/C compressor.
A/C Diode Left front of engine compartment, on bracket.
Fog Lamp In-Line Fuse Holder Behind left side of dash, taped to harness.
Security In-Line Fuse Holder Behind left side of dash, taped to harness.
SRS Fuse Block Behind left side of dash, on front of under-dash fuse/relay box.

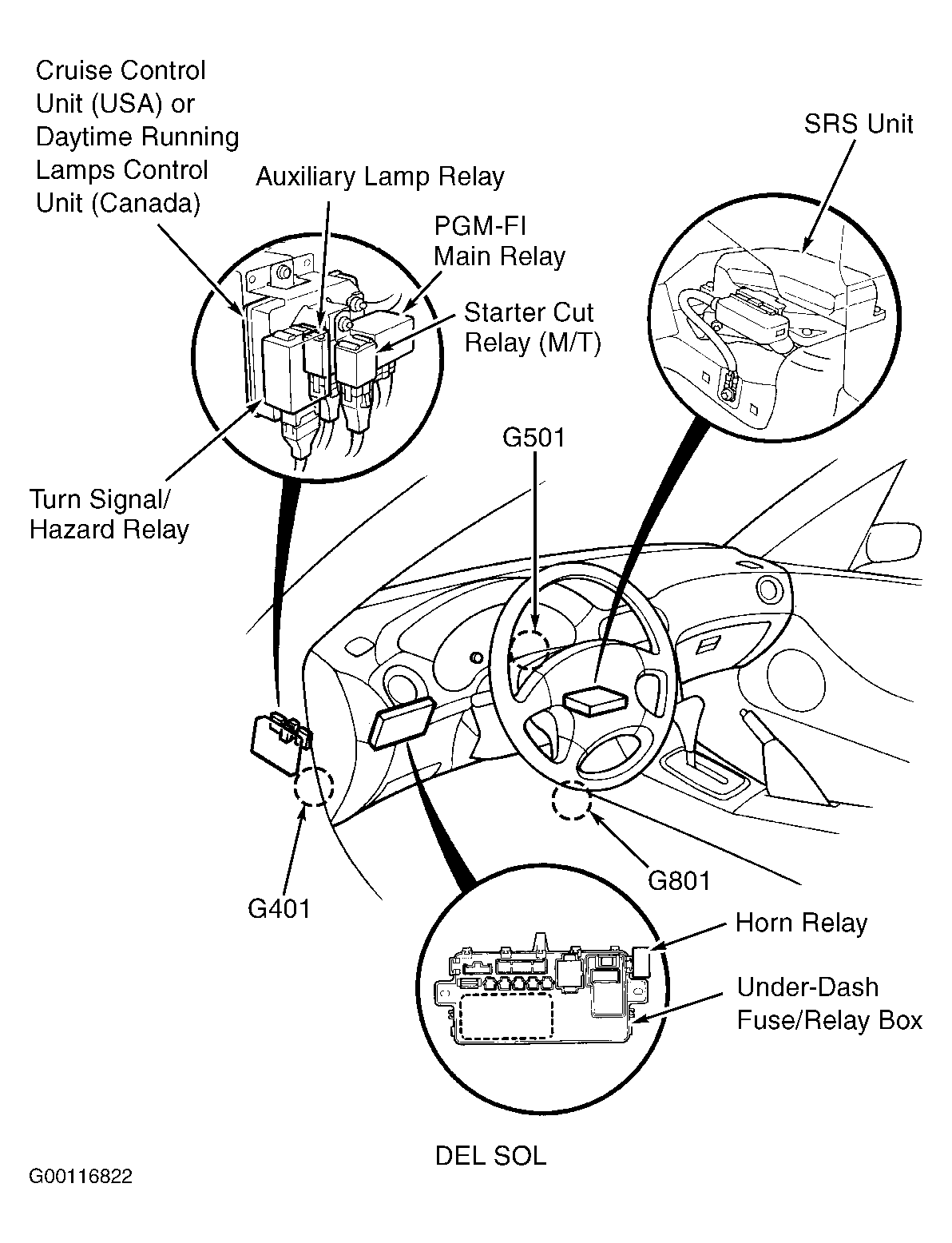

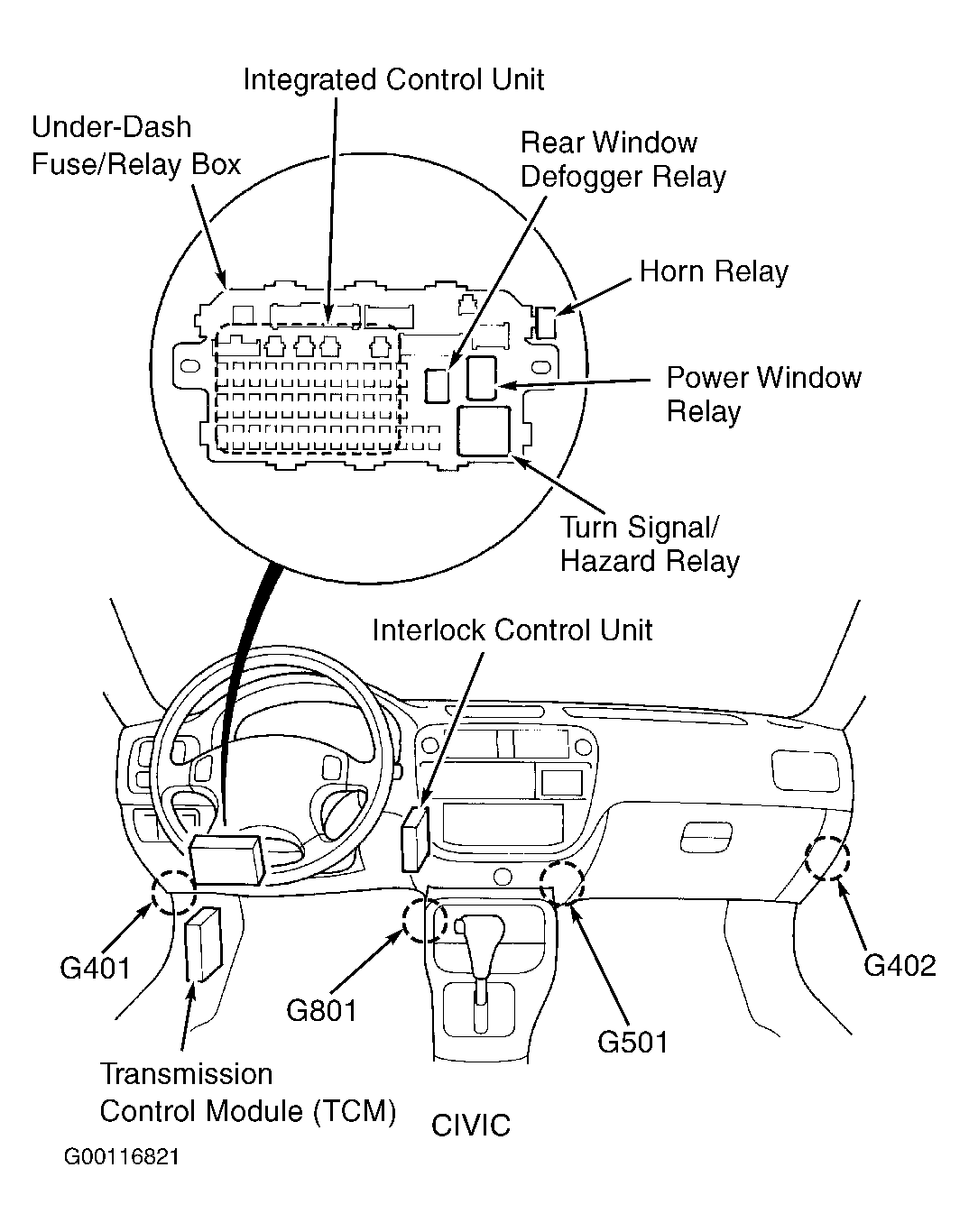

Under-Dash Fuse/Relay Box (Civic) Behind left side of dash. See Figure.
Under-Dash Fuse/Relay Box (Del Sol) Behind left side of dash. See Figure.
Under-Hood ABS Fuse/Relay Box (Civic) Right side of engine compartment. See Figure.

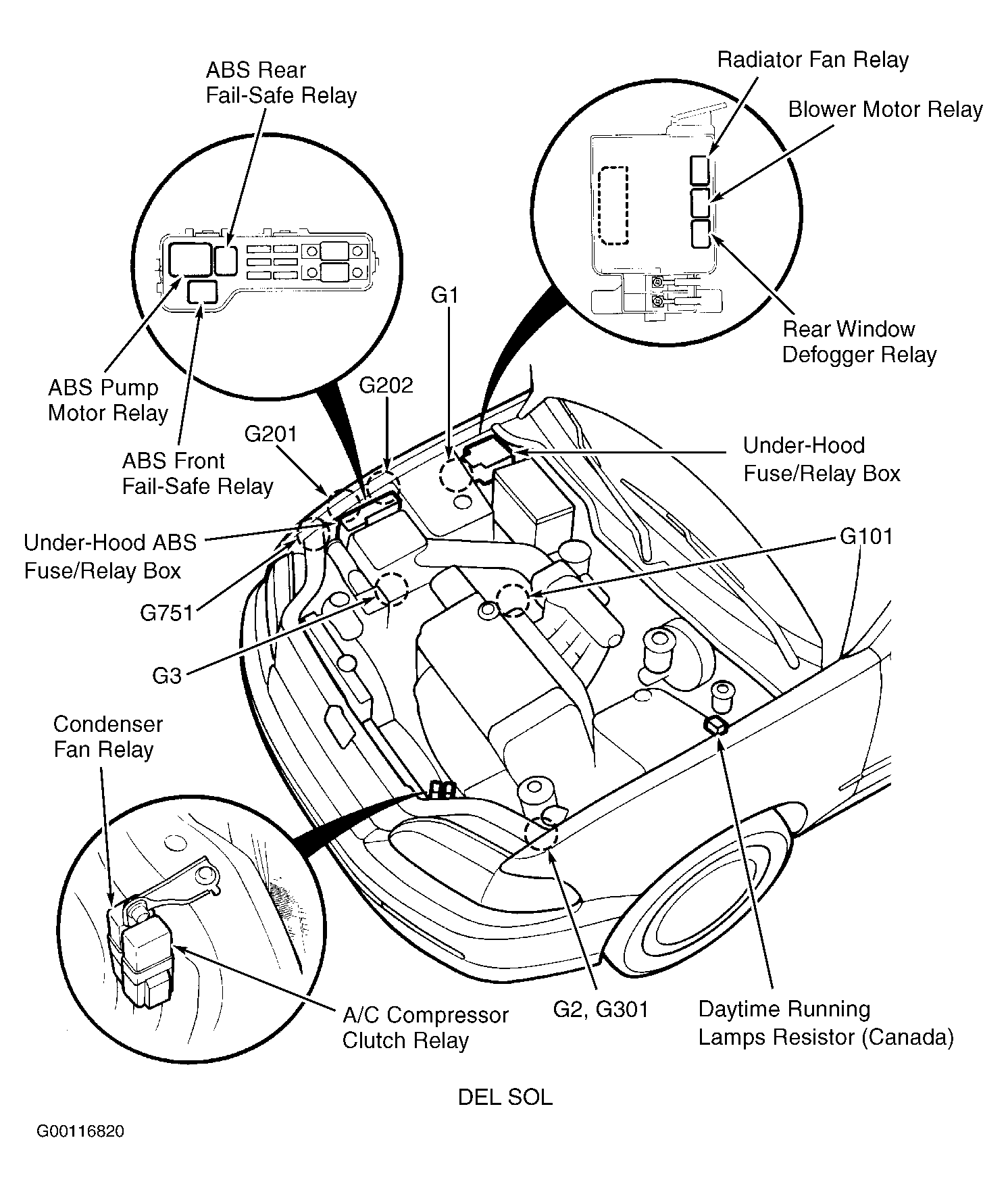

Under-Hood ABS Fuse/Relay Box (Del Sol) Right side of engine compartment. See Figure.

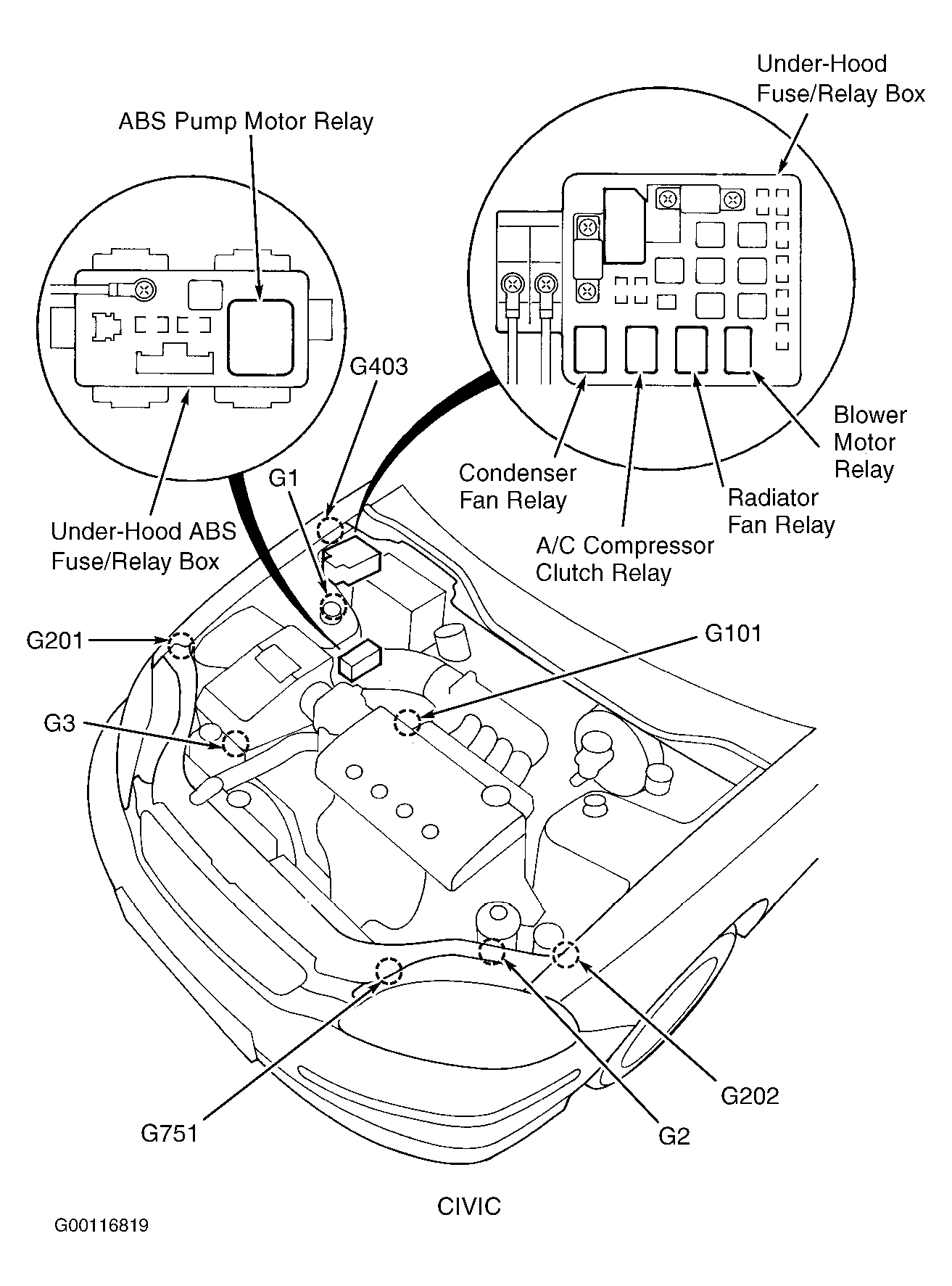

Under-Hood Fuse/Relay Box (Civic) Right rear corner of engine compartment. See Figure.
Under-Hood Fuse/Relay Box (Del Sol) Right rear corner of engine compartment. See Figure.
