Gear Position Switch Test
WARNING: This page is about a different car, the 1997 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

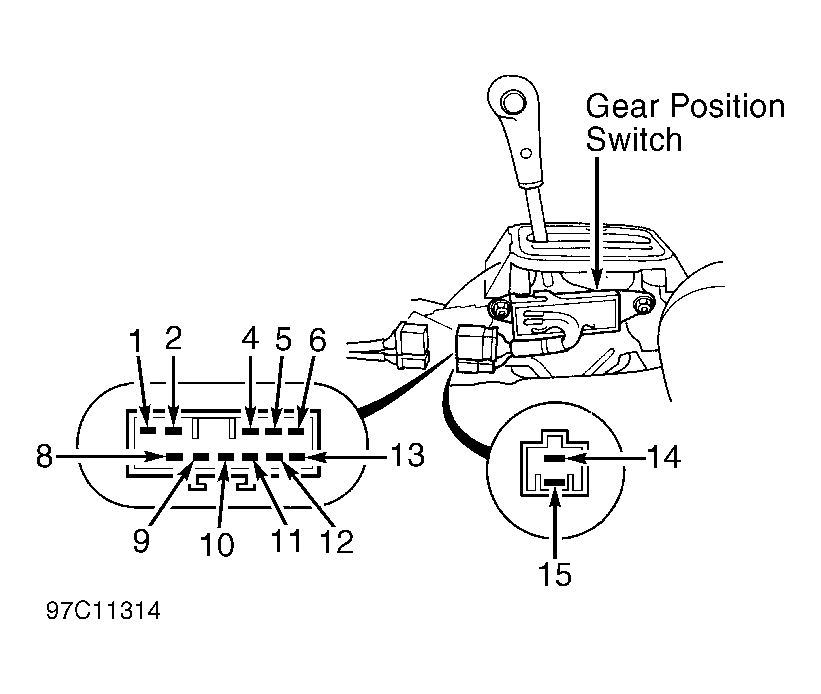

- Remove center console. Disconnect shifter gear position switch connector(s). See Figure .
- Using a DVOM, check for continuity between specified terminals of gear position switch terminals, with gear selector in appropriate position. See GEAR POSITION SWITCH CONTINUITY table. Replace gear position switch if continuity is not as specified.
GEAR POSITION SWITCH CONTINUITY
| Shifter Position | Continuity Between Terminal No. |
|---|---|
| Park (P) | 8 & 11; 14 & 15 |
| Neutral (N) | 11 & 13; 14 & 15 |
