Clutch Switch

WARNING: This page is about a different car, the 1997 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect 3-pin connector from clutch switch. Using a DVOM, check for continuity between clutch switch terminals "B" and "C". See Fig 1 . Continuity should exist. Depress clutch pedal and hold. Check f or continuity between terminals "B" and "C". Continuity should not exist. If continuity exists, check clutch pedal height. See CLUTCH PEDAL HEIGHT under ADJUSTMENTS. If clutch pedal height is okay, replace clutch pedal switch.

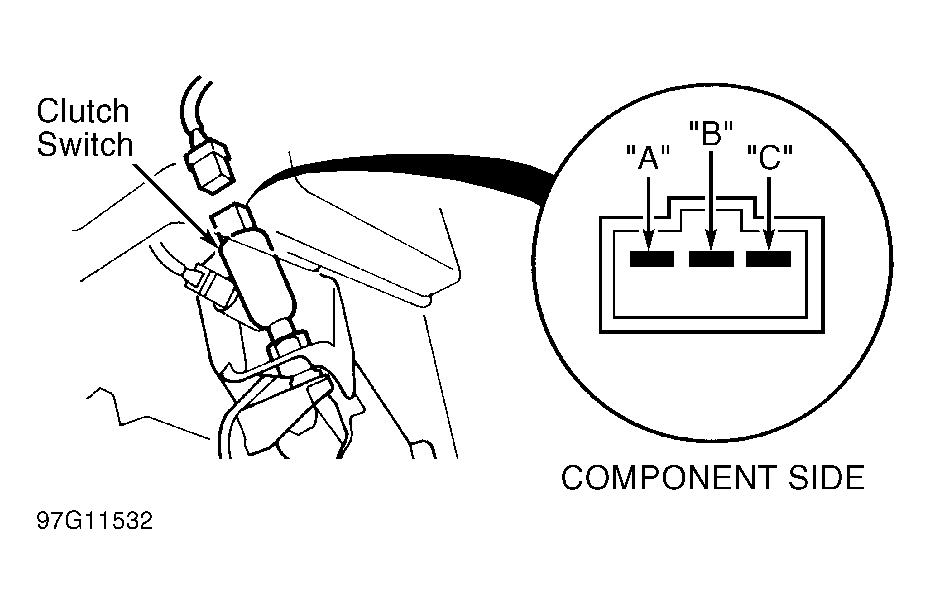

Fig 1: Identifying Clutch Switch Terminals
G97G11532Courtesy of AMERICAN HONDA MOTOR CO., INC.
