Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

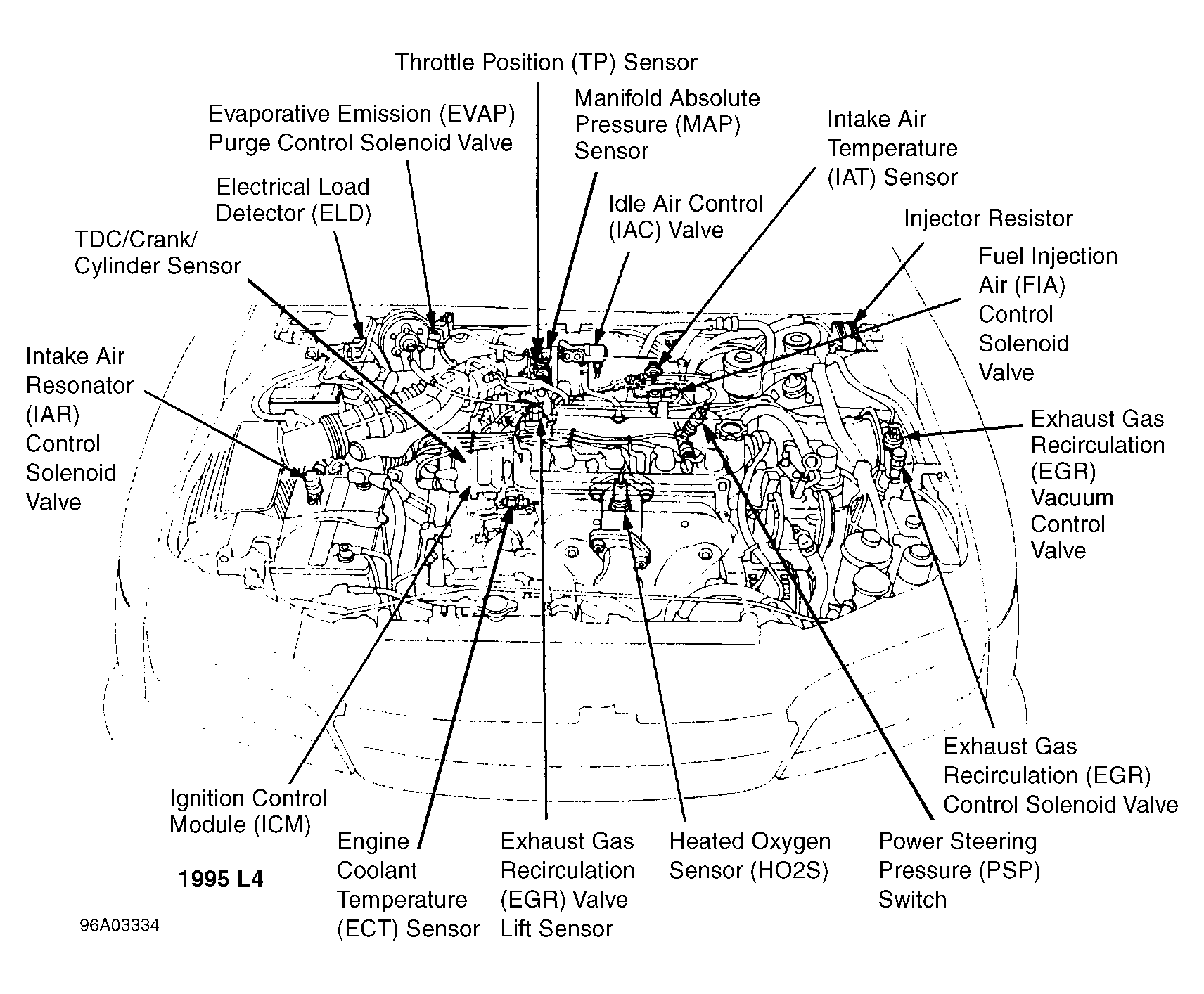

Fig 1: Engine Compartment (1995) (2.2L)

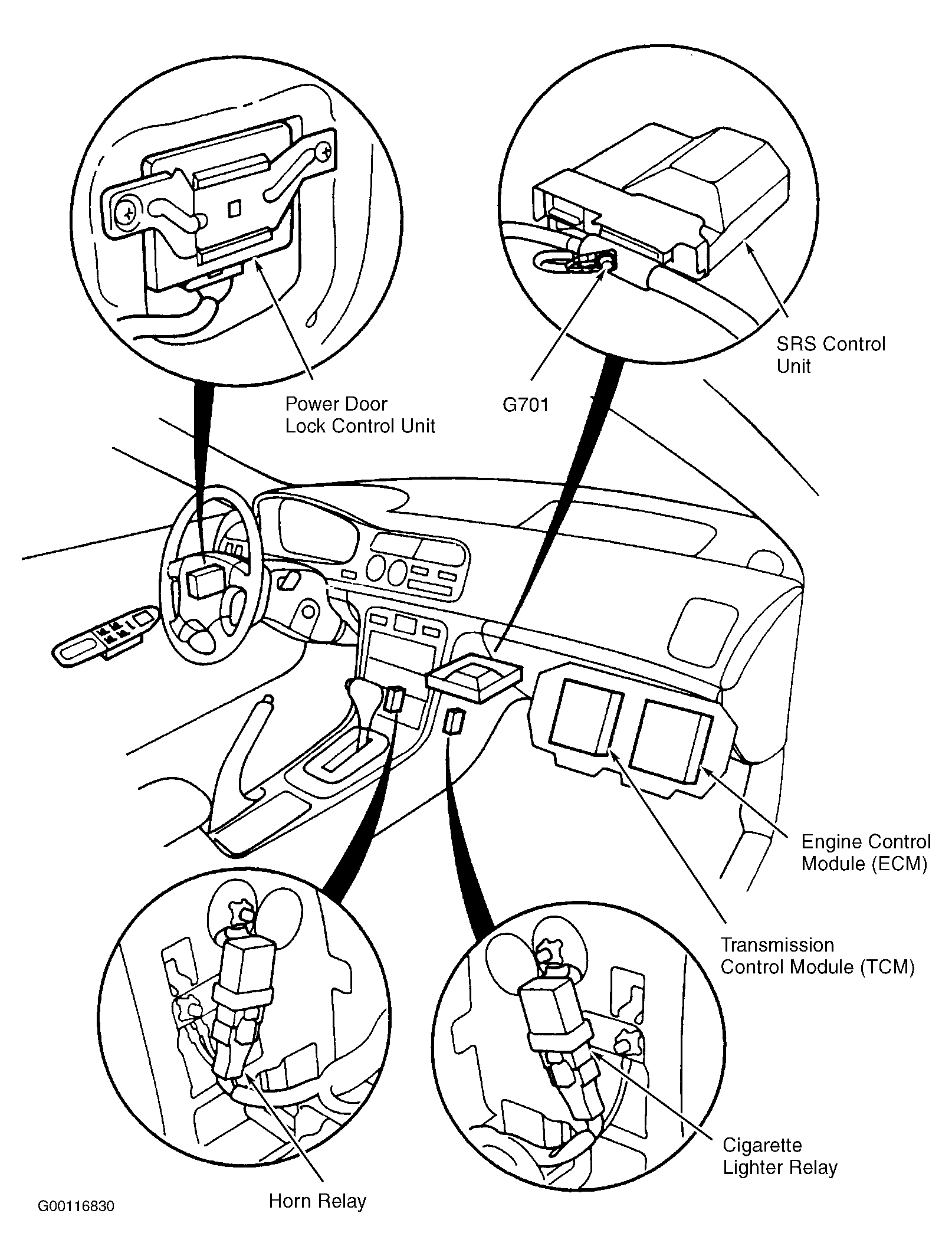

Fig 2: Front Of Dash

Fig 3: Engine Compartment (2.2L)

Fig 4: Right Side Of Dash

Fig 5: Engine Compartment (1996) (2.2L)

Fig 6: Engine Compartment (1996) (2.2L VTEC)

Fig 7: Engine Compartment (2.7L)

Fig 8: Engine Compartment (2.7L)
