Component Locations
Component Locations

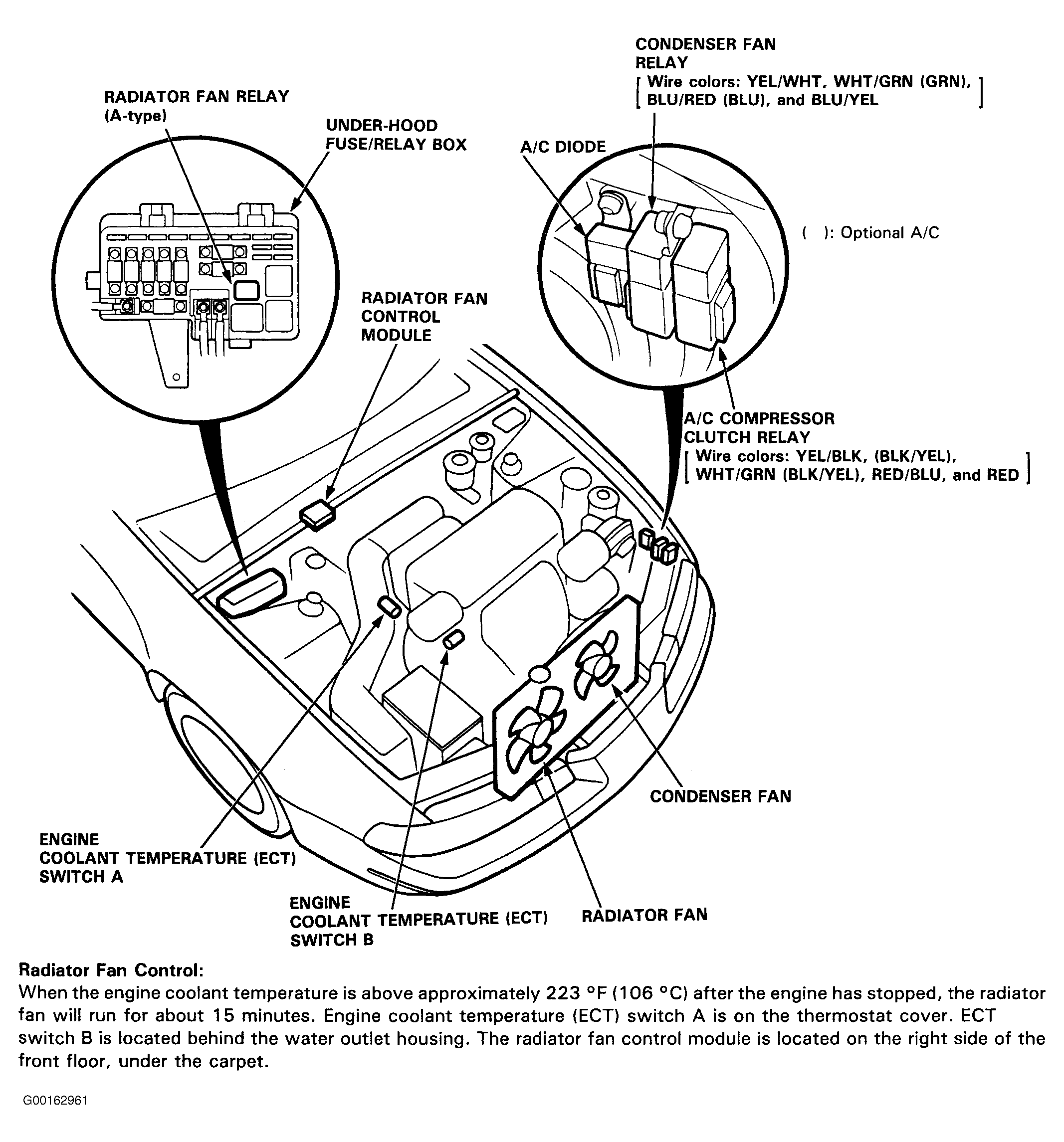

Fig 1: Cooling System Electrical Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Cooling Fan System Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of GENERAL MOTORS CORP.
