Door Lock Switch Test
- Remove the inside handle. See steps 1 and 2 of DOOR TRIM PANEL under REMOVAL & INSTALLATION.

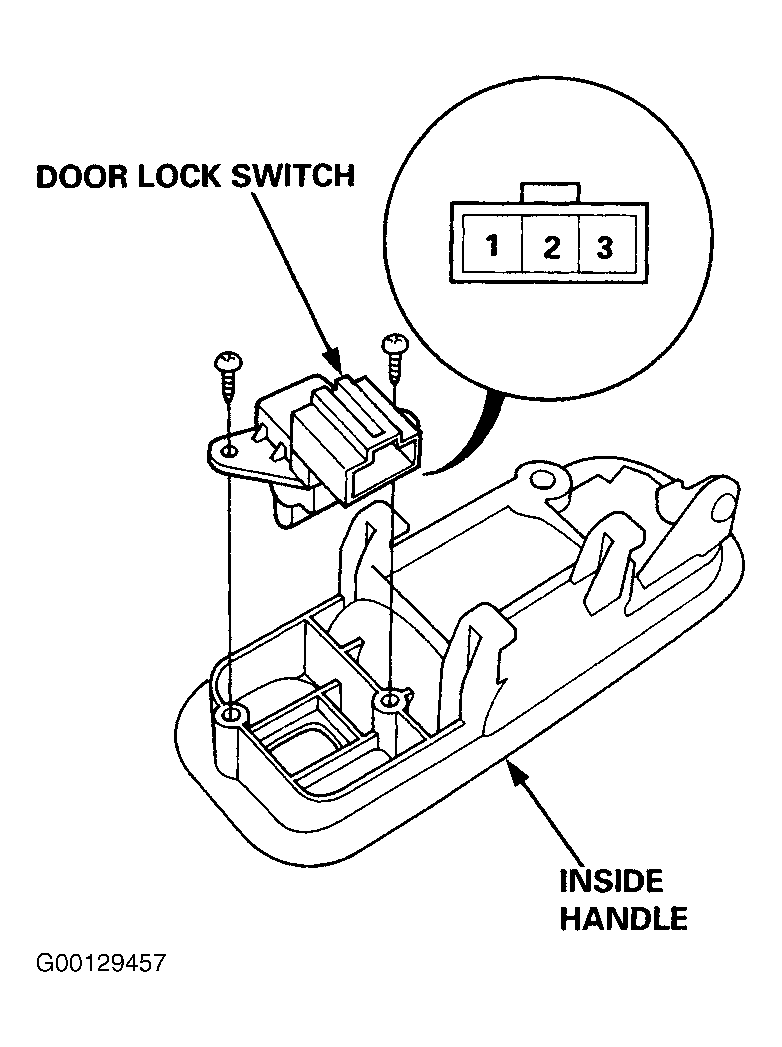

- Disconnect the 3-P connector from the switch. See Fig 1 .
- Check for continuity between the terminals in each switch position according to the table. See DOOR LOCK SWITCH POSITIONS table.
DOOR LOCK SWITCH POSITIONS
| Position | Continuity Between Terminals No. |
|---|---|
| Lock | 1 & 2 |
| Neutral | ..... |
| Unlock | 1 & 3 |
