Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Switches | On Appropriate Door Panel Arm Rest |

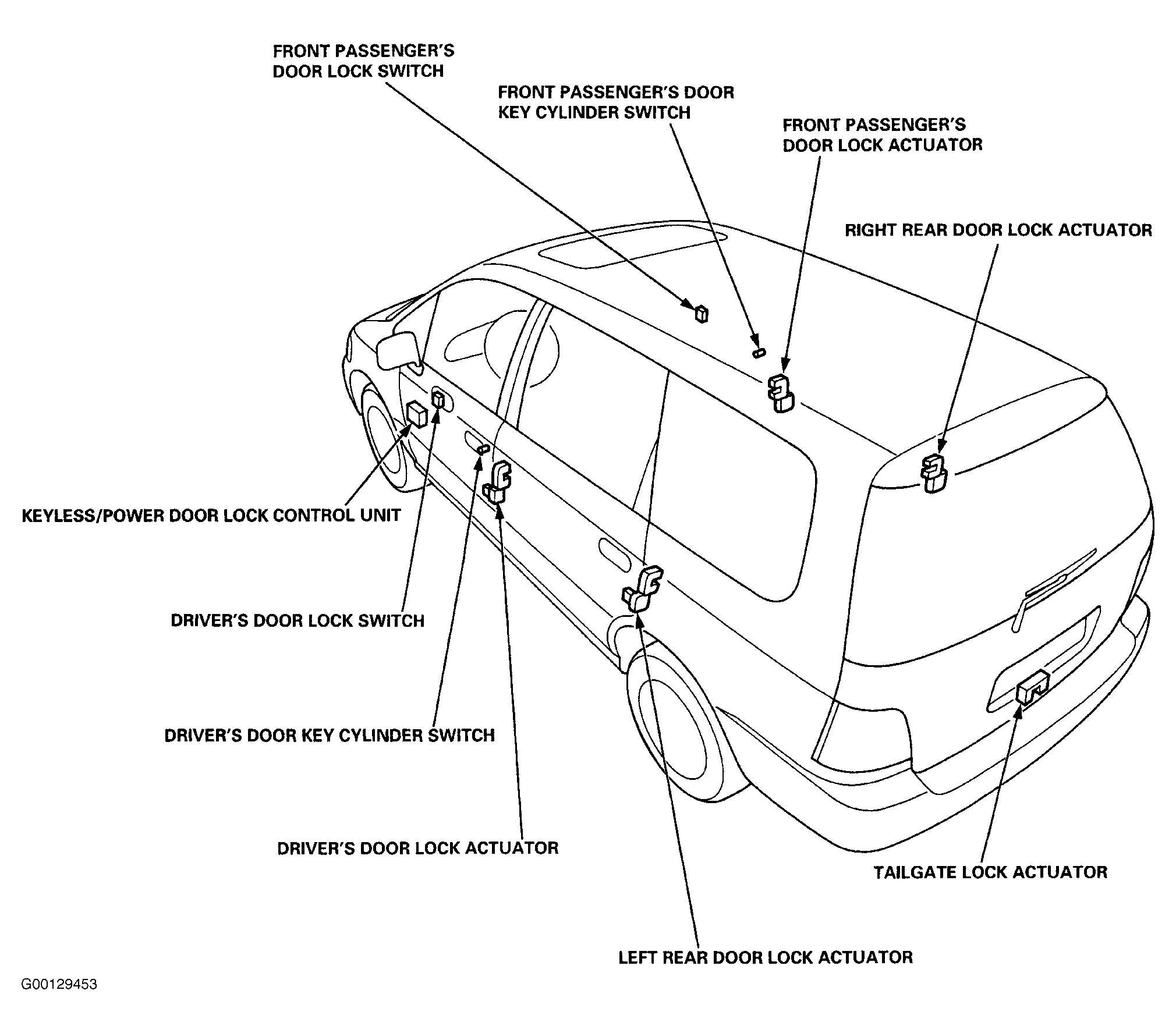

| Power Door Lock Control Unit | Front Corner Of Driver's Door, Behind Door Panel. See Fig 1 . |
| G401 | Behind Driver's Side Kick Panel |
| G402 | Rear Of Under-Dash Fuse/Relay Box |
| G404 | Behind Passenger's Side Glove Box |
