Wiper/Washer Switch Test: Civic

WARNING: This page is about a different car, the 1994 Honda Civic del Sol and 1994 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

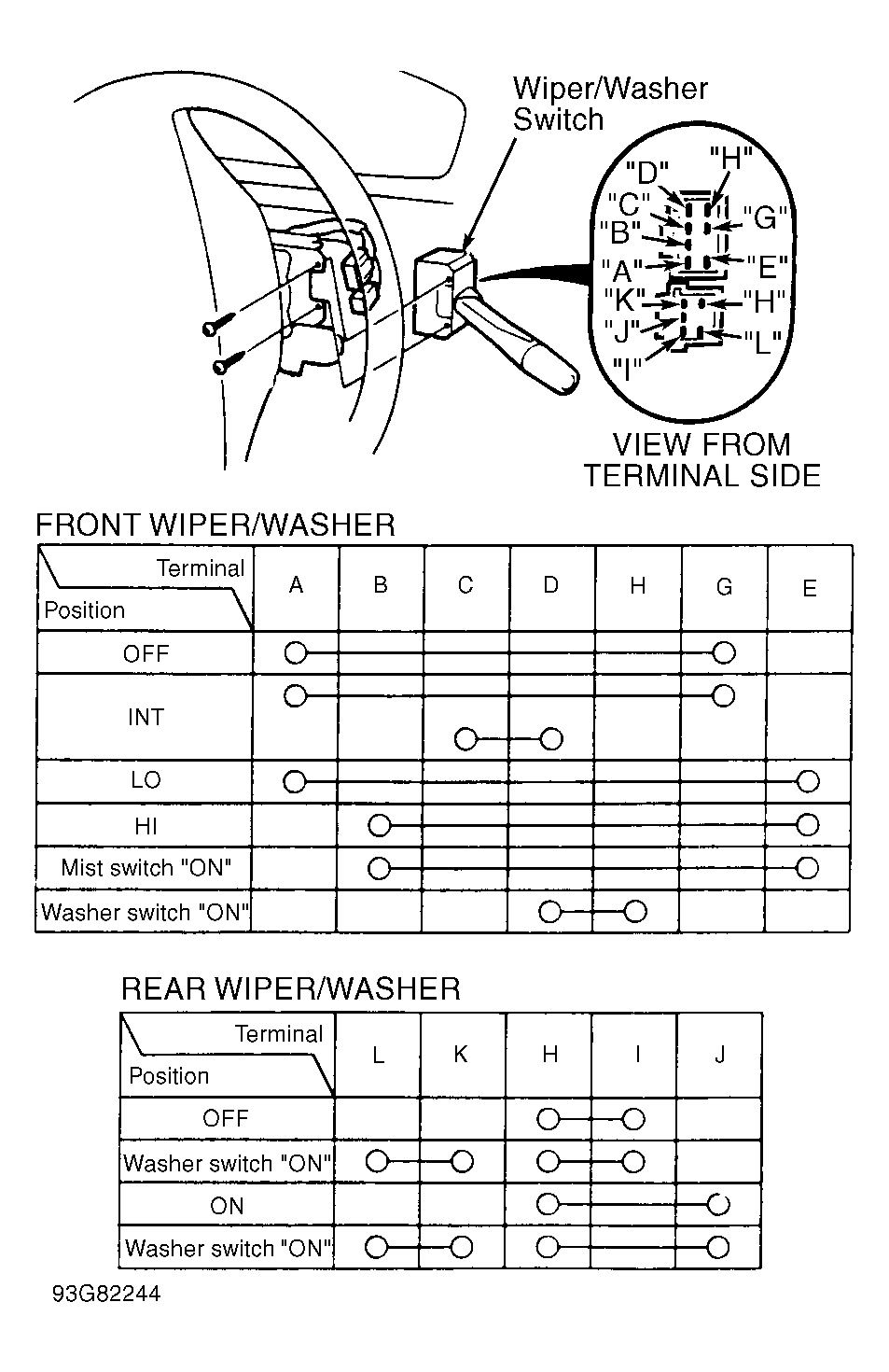

Remove steering column covers. Disconnect 6-pin and 8-pin connectors from wiper/washer switch. Check continuity between specified terminals with switch in indicated positions. See Figure . If continuity is not as specified, replace wiper/washer switch.
