Rocker Arm Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

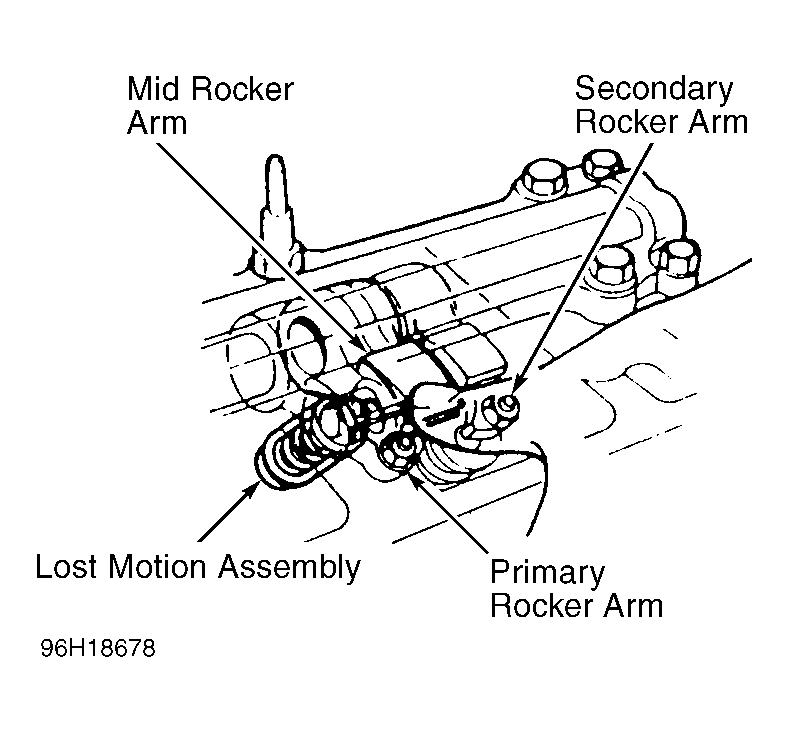

NOTE: As rocker arm assembly components are removed, identify original location for reinstallation. Reused Components must be reinstalled in original location. See Figure. When removing rocker arm assembly, leave camshaft holder bolts in place to keep camshaft holders, springs, and rocker arms on shaft.

NOTE: On non-VTEC engines, ensure valve clearance is correct. See VALVE CLEARANCE SPECIFICATION under ADJUSTMENTS. See ENGINE IDENTIFICATION CODES table under ENGINE IDENTIFICATION .

NOTE: VTEC-E engine rocker arm assembly has 2 rocker arms (primary and secondary), one synchronizing piston and a spring-loaded timing plate.
