Door Switch

  1. Open the door.
  2. Remove the screw, then pull out the door switch. See Fig 1 .
  3. Disconnect the 1-P connector from the switch.
  4. There should be continuity between the positive terminal and base plate (ground) with the switch released (door open). There should be continuity with the switch pushed (door closed).

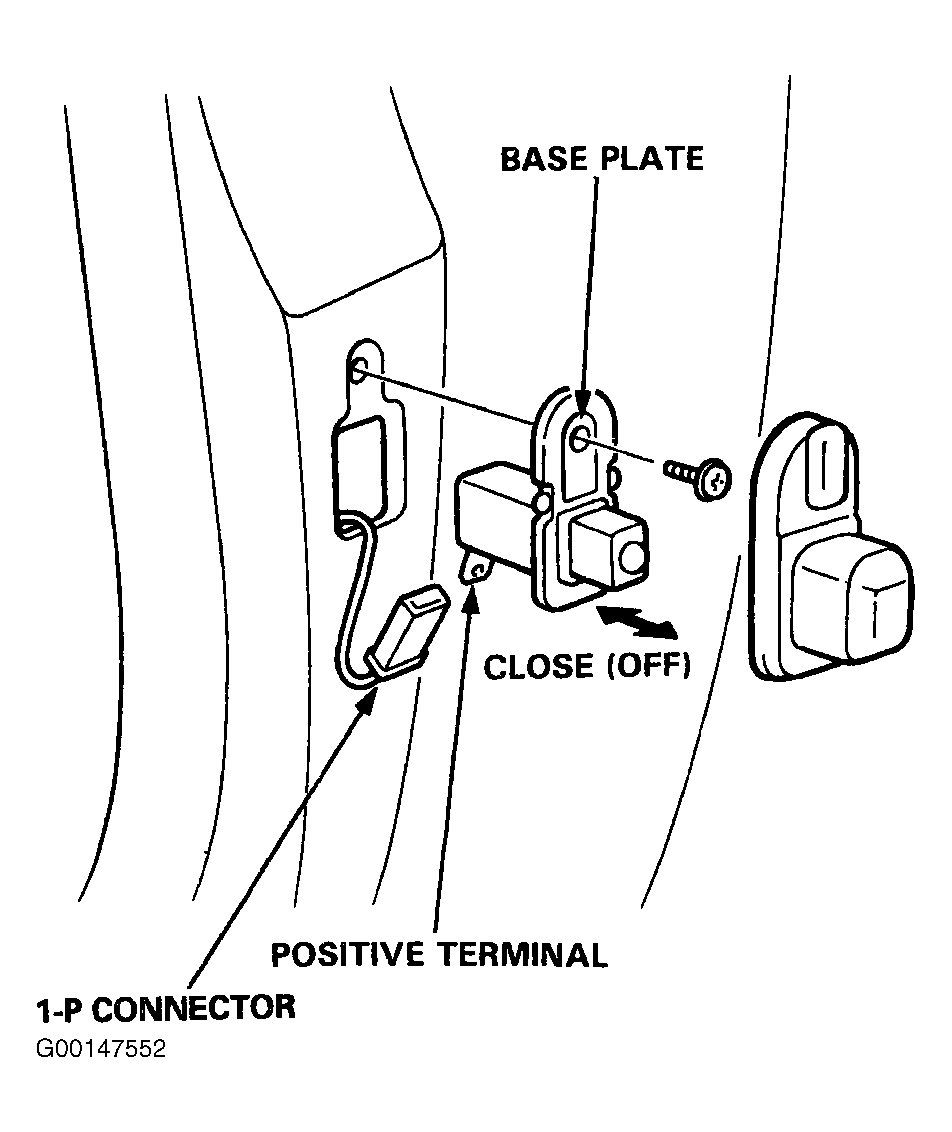

Fig 1: Identifying Door Switch & 1-P Connector
G00147552Courtesy of AMERICAN HONDA MOTOR CO., INC.
