Component Locations

COMPONENT LOCATIONS

Component Location
Driver's Seat Belt Switch In Driver's Seat Belt Buckle.
Ground G401 Behind left kick panel.
Integrated Control Unit In Under-Dash Fuse/Relay Box. See Fig 1 .
Under-Dash Fuse/Relay Box Behind Left Side Of Dash. See Fig 1 .
Under-Hood Fuse/Relay Box On Right Rear Corner Of Engine Compartment, Near Firewall. See Fig 2 .
Fig 1: Locating Under-Dash Fuse/Relay Box & Integrated Control Unit
G96D03340

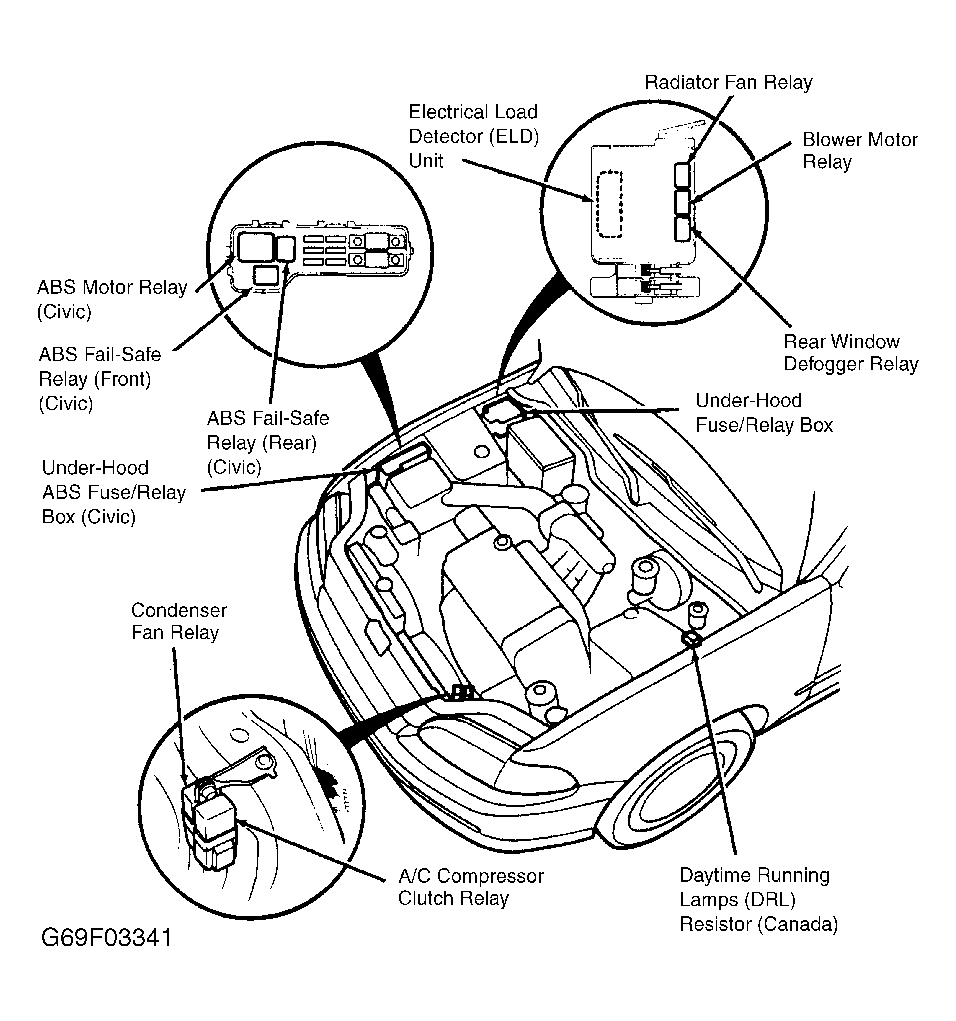

Fig 2: Locating Under-Hood Fuse/Relay Box
G96F03341
