Blower Motor Switch
WARNING: This page is about a different car, the 1997 Honda Civic del Sol and 1997 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

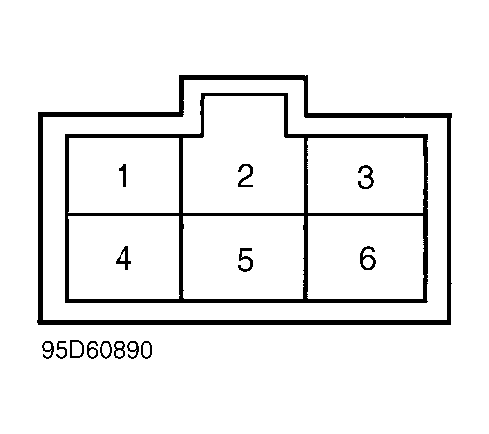

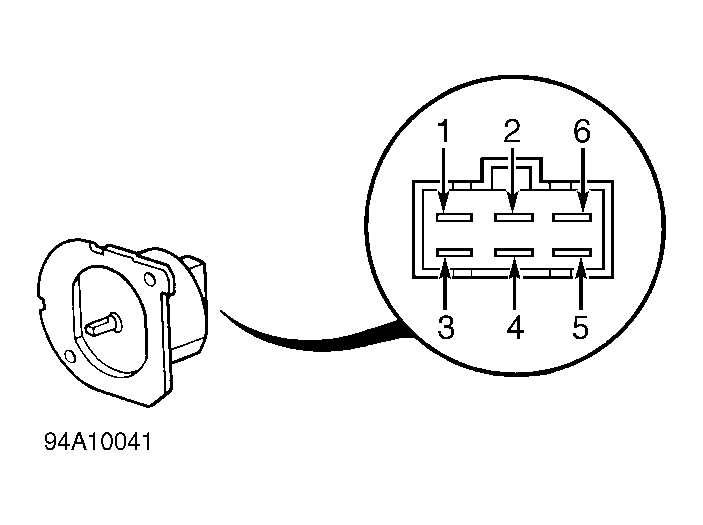

Remove blower motor switch. Check for continuity between specified terminals of blower motor switch. See BLOWER MOTOR SWITCH TEST table. See Fig 1 or Fig 2. If continuity does not exist, replace blower motor switch.
BLOWER MOTOR SWITCH TEST
| Switch Position | Continuity Should Exist Between Terminals | ||
|---|---|---|---|
| Civic Del Sol | |||
| OFF | (1) | ||
| Low | 1, 2 & 3 | ||
| Medium-Low | 1, 2 & 4 | ||
| Medium-High | 1, 2 & 5 | ||
| High | 1, 2 & 6 | ||
| Civic | |||
| OFF | (1) | ||
| Low | 1, 4 & 6 | ||
| Medium-Low | 1, 2 & 6 | ||
| Medium-High | 1, 5 & 6 | ||
| High | 1, 3 & 6 | ||
|
|||
