Component Locations
WARNING: This page is about a different car, the 1996 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Engine Oil Pressure Switch (4-Cylinder) | On center of engine block, above oil filter. |
| Engine Oil Pressure Switch (V6) | Lower front of engine, above oil filter. |
| Integrated Control Unit | In under-dash fuse/relay box. |
| Seat Belt Switch | On driver's seat belt buckle. |
| Under-Dash Fuse/Relay Box | Behind left kick panel. |

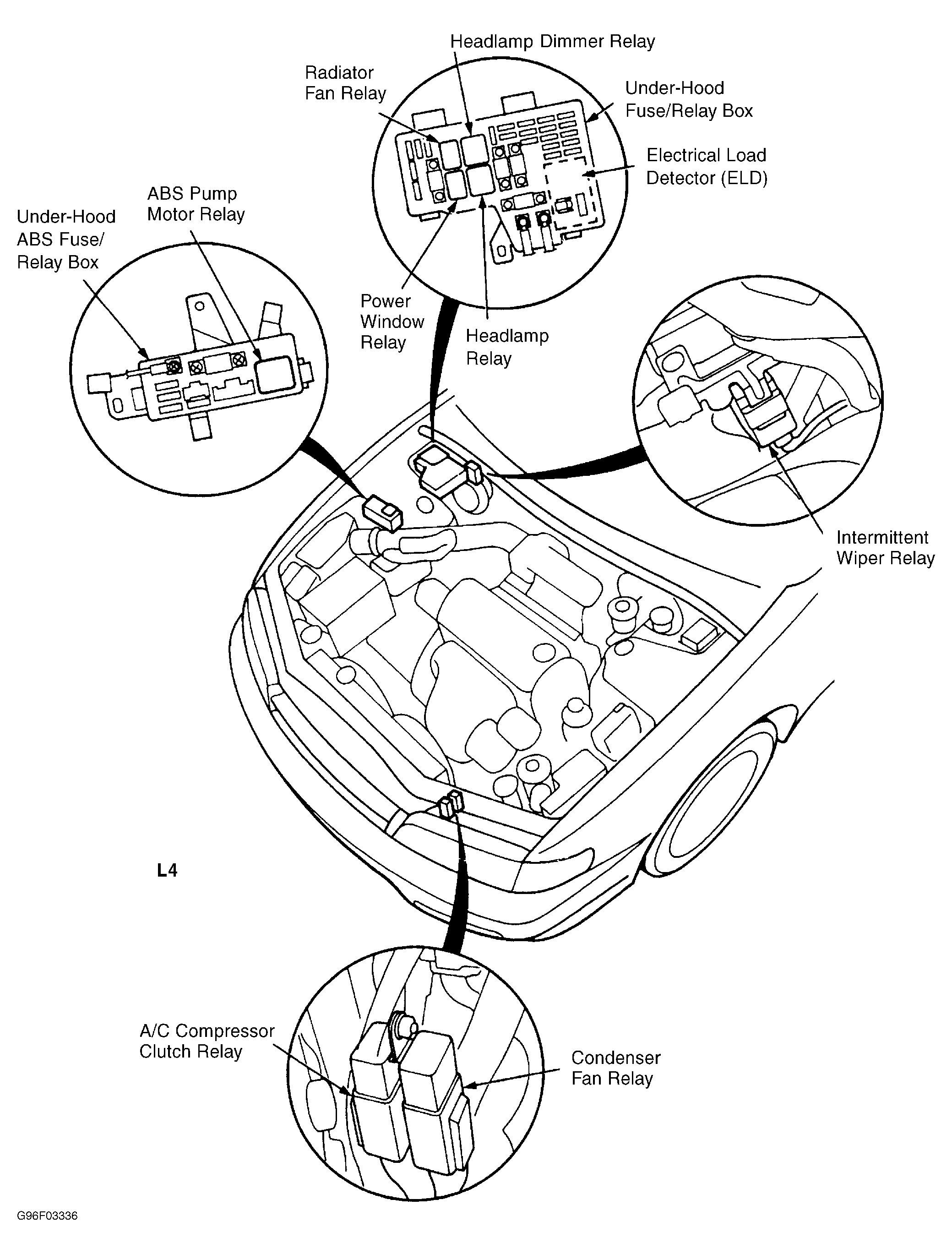

| Under-Hood Fuse/Relay Box | On right rear corner of engine compartment, behind strut tower. See Fig 1 . |
