Engine Controls - Tests W/Codes
>>
Diagnostic Trouble Code Charts
>>
Code 20 - Electrical Load Detector (Eld)
Code 20 - Electrical Load Detector (Eld)

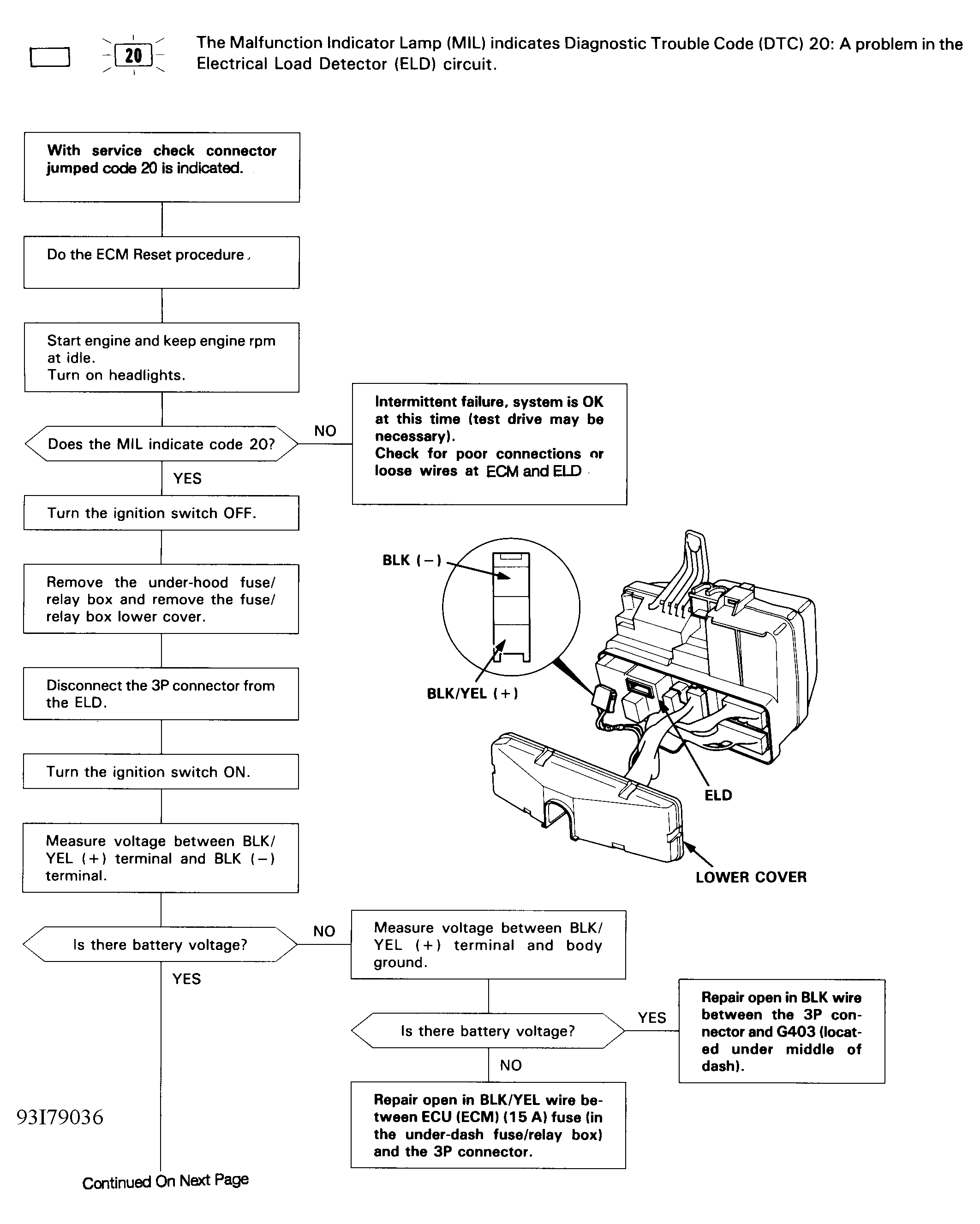

Fig 1: Code 20 Flow Chart (1 Of 2) Electrical Load Detector (ELD)

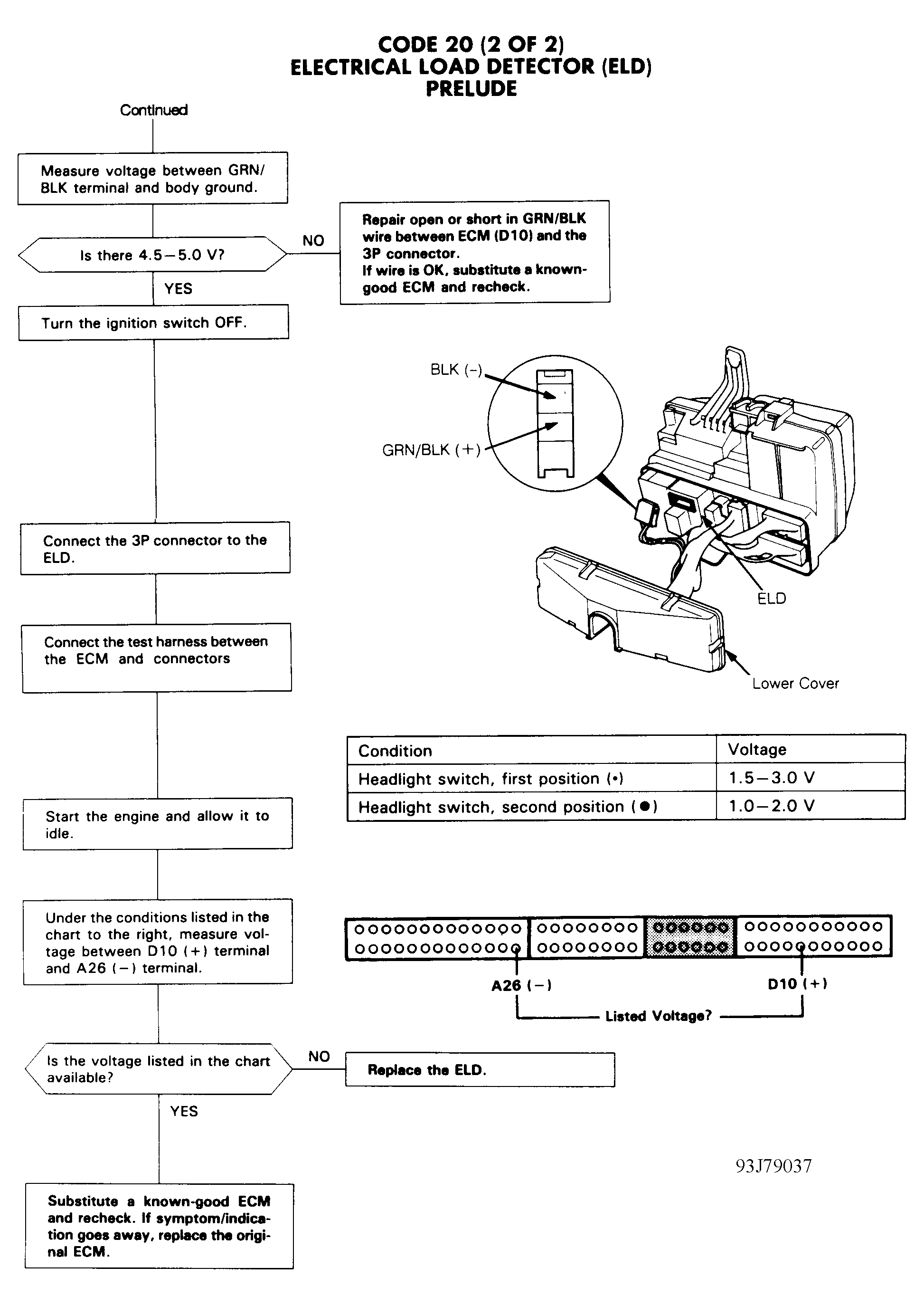

Fig 2: Code 20 Flow Chart (2 Of 2) Electrical Load Detector (ELD)
