Code 17 - Vehicle Speed Sensor (VSS)

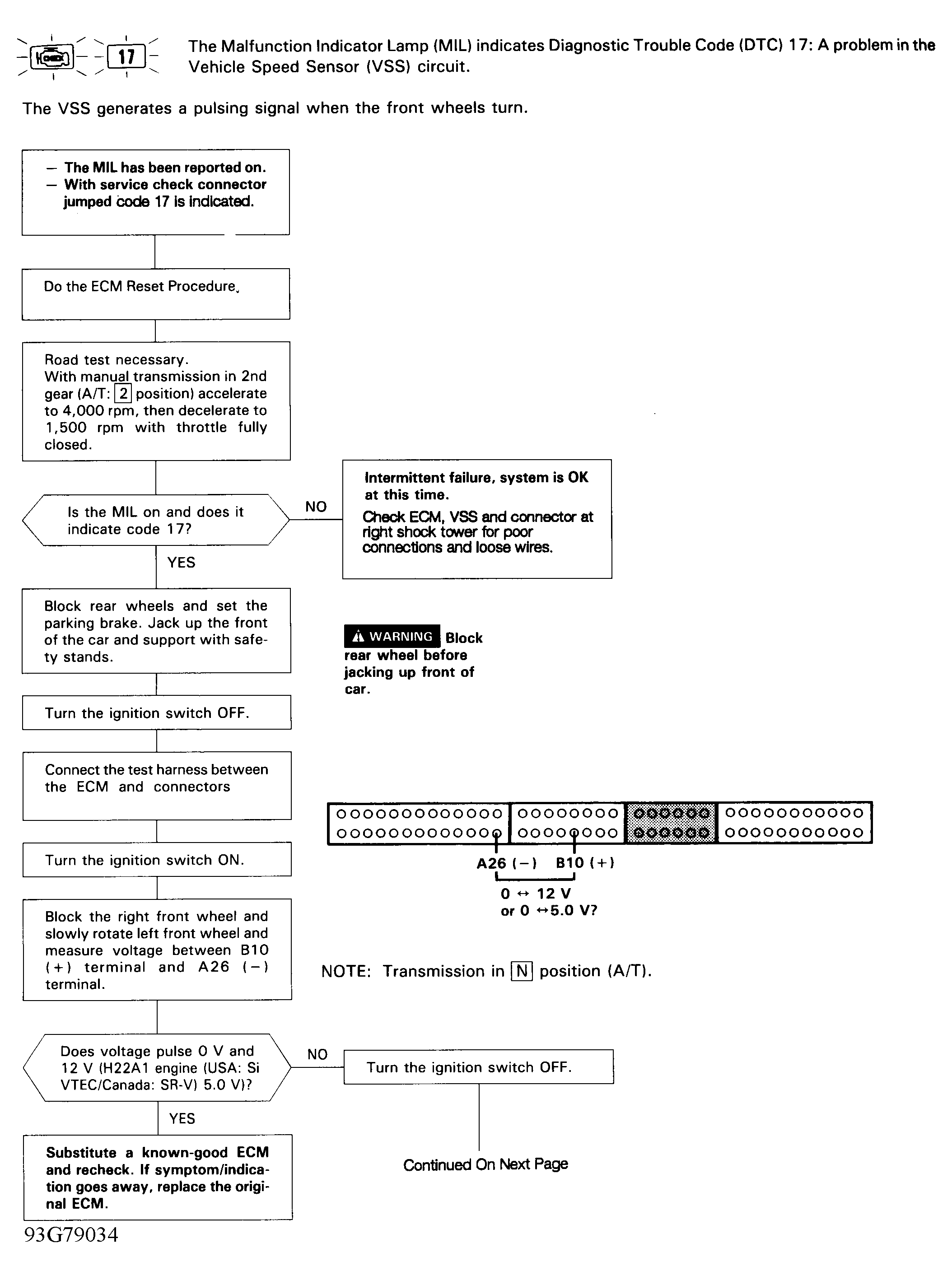

Fig 1: Code 17 Flow Chart (1 Of 2) Vehicle Speed Sensor (VSS)

G93G79034

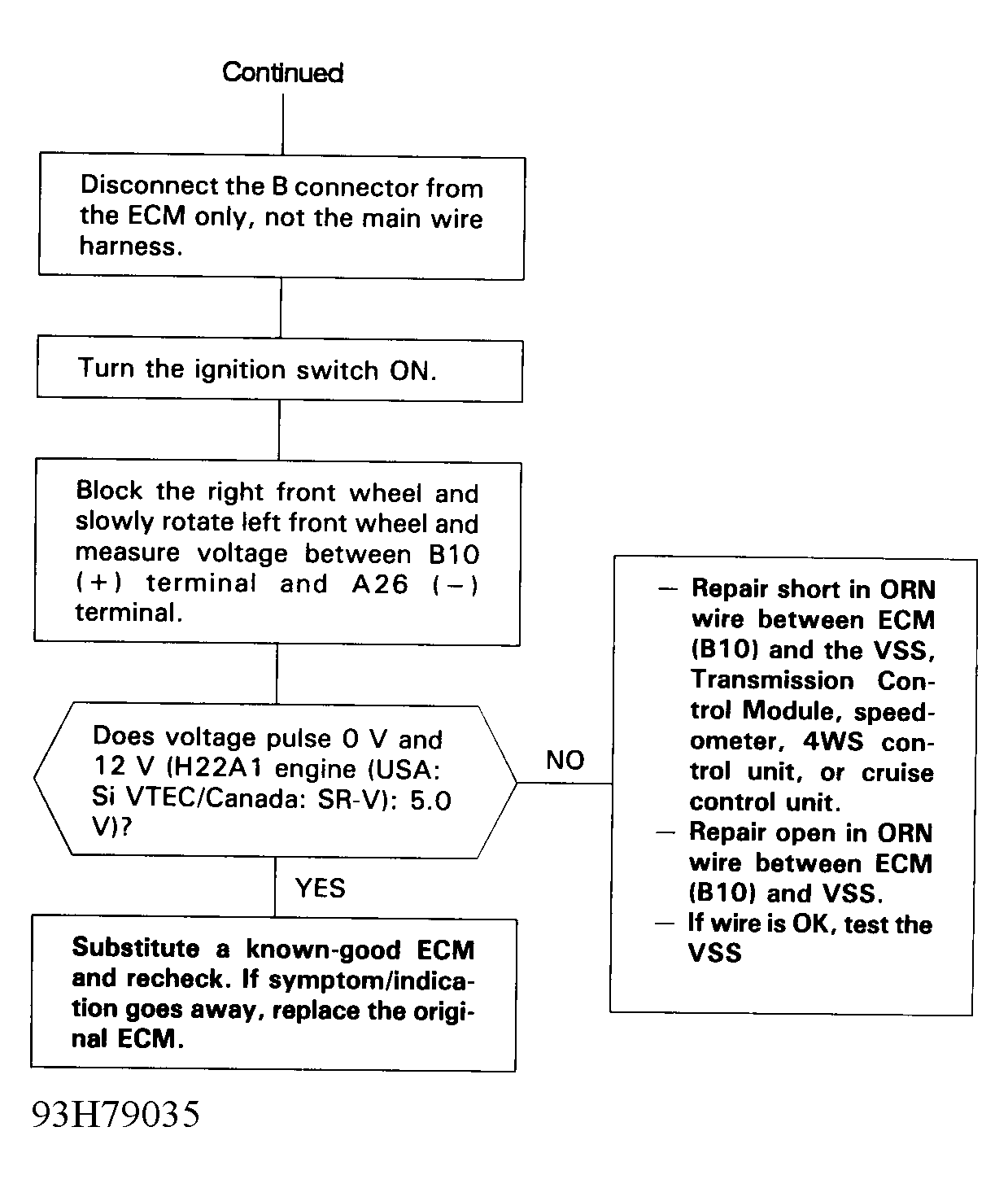

Fig 2: Code 17 Flow Chart (2 Of 2) Vehicle Speed Sensor (VSS)

G93H79035
