Engine Controls - Tests W/Codes
>>
Diagnostic Trouble Code Charts
>>
Code 15 - Ignition Output Signal
Code 15 - Ignition Output Signal

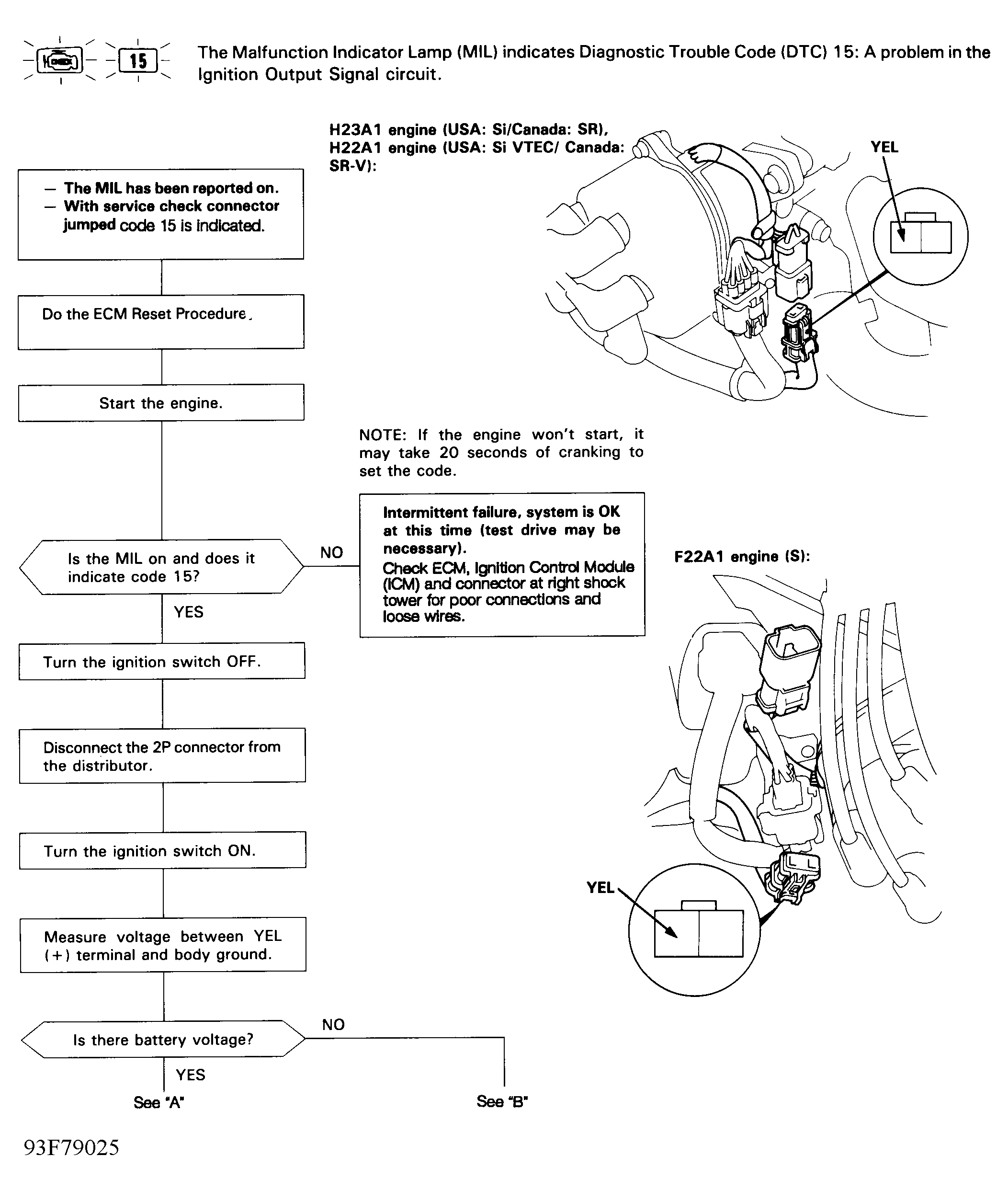

Fig 1: Code 15 Flow Chart (1 Of 2) Ignition Output Signal

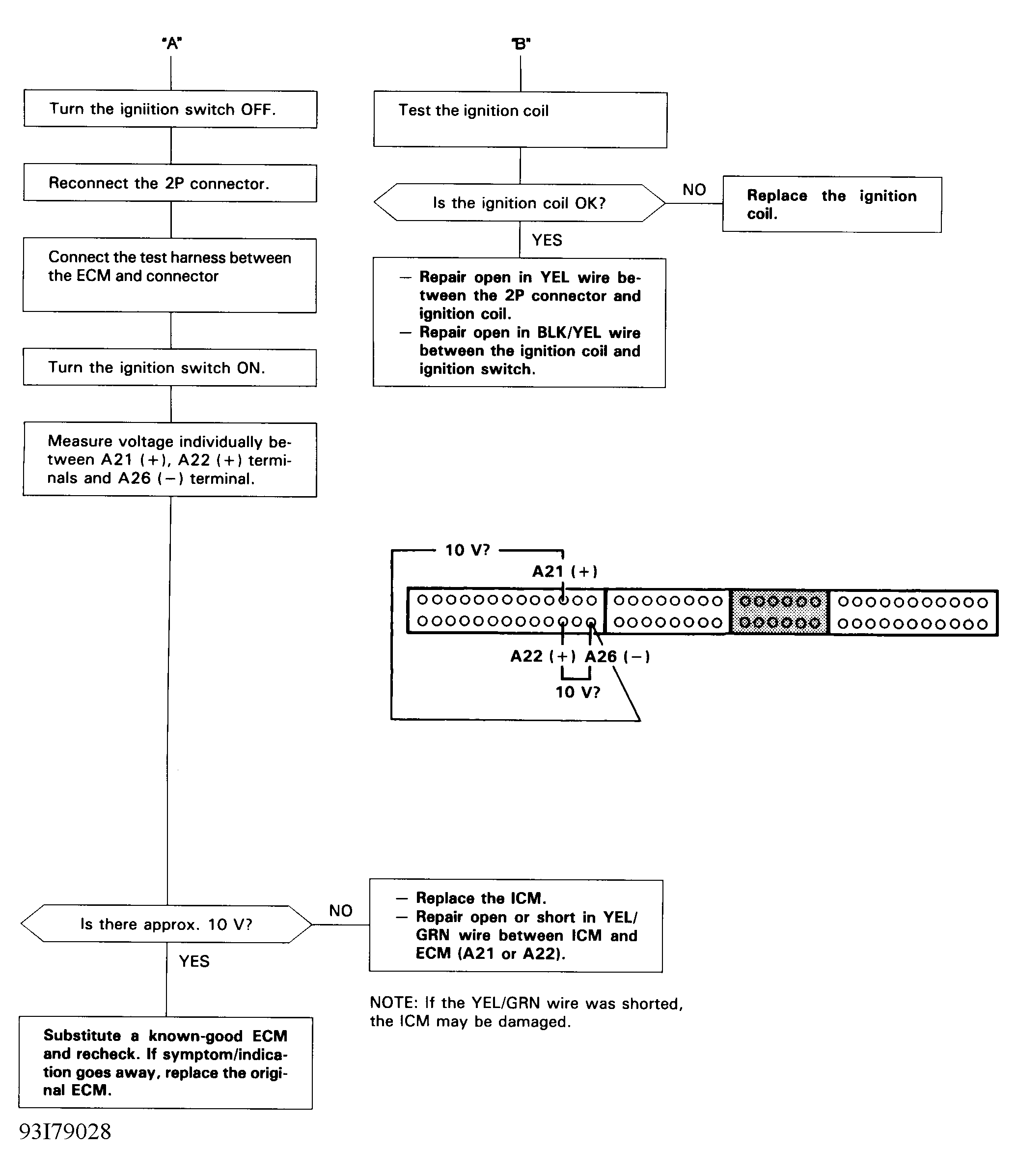

Fig 2: Code 15 Flow Chart (2 Of 2) Ignition Output Signal
