Shift & Key Interlock Systems: Notes

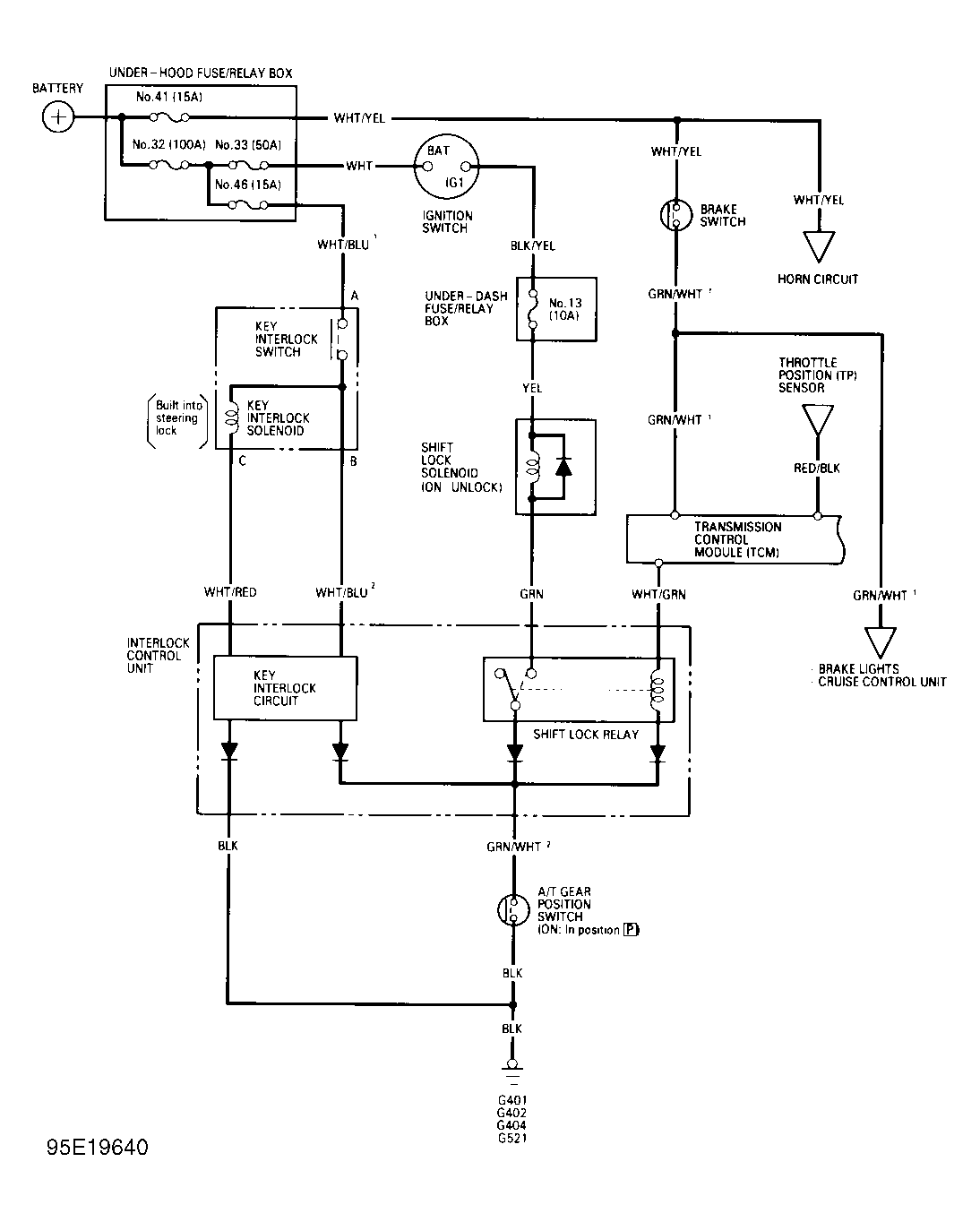

NOTE: If necessary, refer to wiring schematic when checking component wiring. See Figure .
