WARPED CONSOLE - MODIFY AND INSTALL SPRING CLIPS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 94-044

Model: 1992-94 Honda Prelude

Category: Body

Bulletin No.: 94-044

Date: December 12, 1994

The front console is warped at the seam with the center console. See Fig 1 .

Modify and install new spring clips.

Remove the front console. See Fig 2 .
Use a bench grinder to remove each new spring clip. See Fig 3 .
Install the modified spring clips in the slots in the front of the center console. See Fig 4 .
Reinstall the front console.

Fig 1: Front Console Warped Area

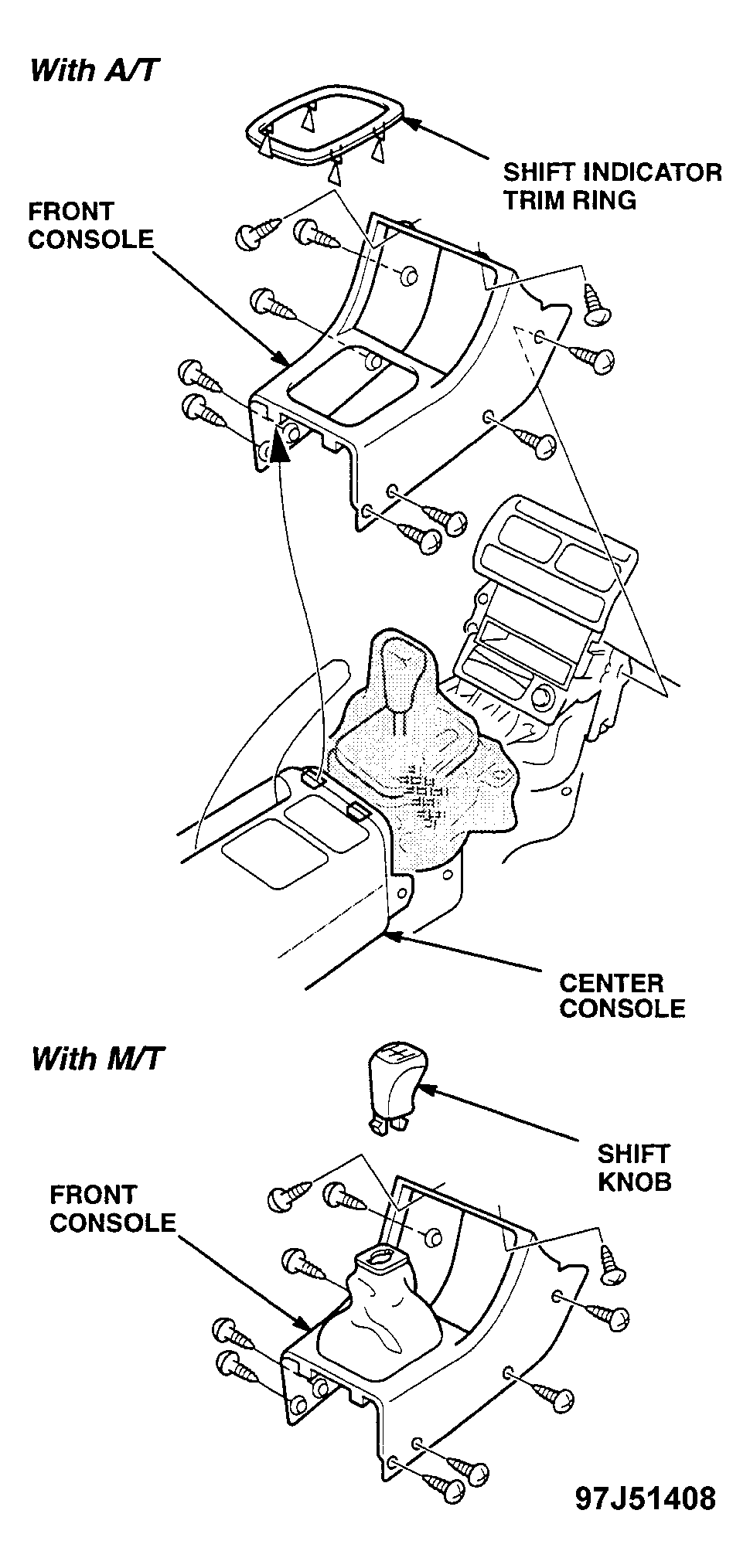

Fig 2: Front Console Removal

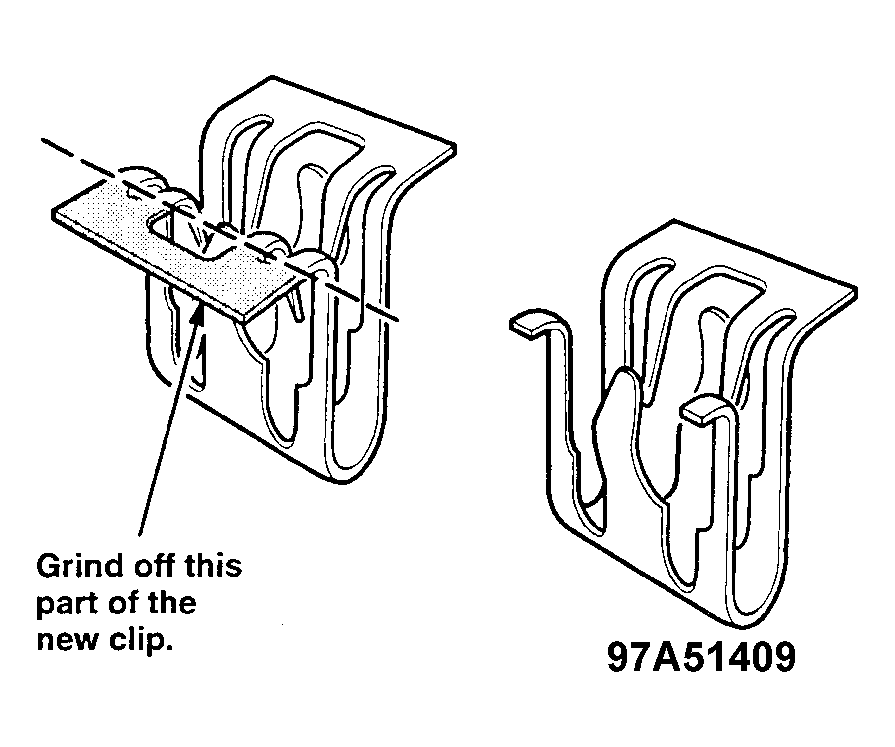

Fig 3: Spring Clip Modification

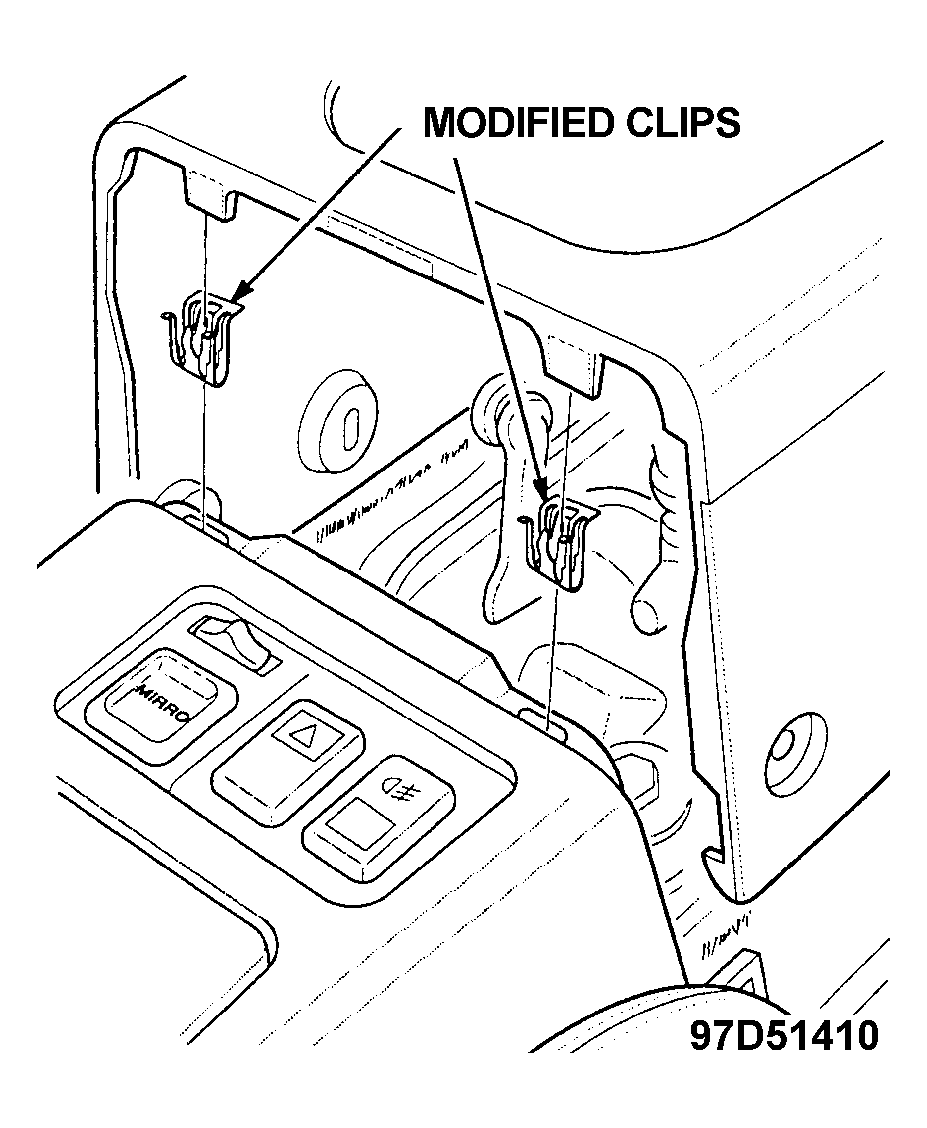

Fig 4: Center Console Spring Clip Mounting Locations

Description	Qty.	P/N	Honda Code
Spring clip	2	90610-SR3-003	3964475

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may

be eligible for goodwill consideration by the

District Service Manager or your Zone Office. You

must request consideration, and get a decision,

before starting work.

Operation Number: 841006

Flat Rate Time: 0.4 hr.

Failed Part: P/N 77291-SS0-010ZA

H/C 4115762 Defect Code: 004 Contention Code: A01
