Code 11 - BRAKELIGHT Switch Circuit

Fig 1: Code 11 - Defective Brakelight Switch Circuit (1 Of 2)
G93I01188Courtesy of ISUZU MOTOR CO.

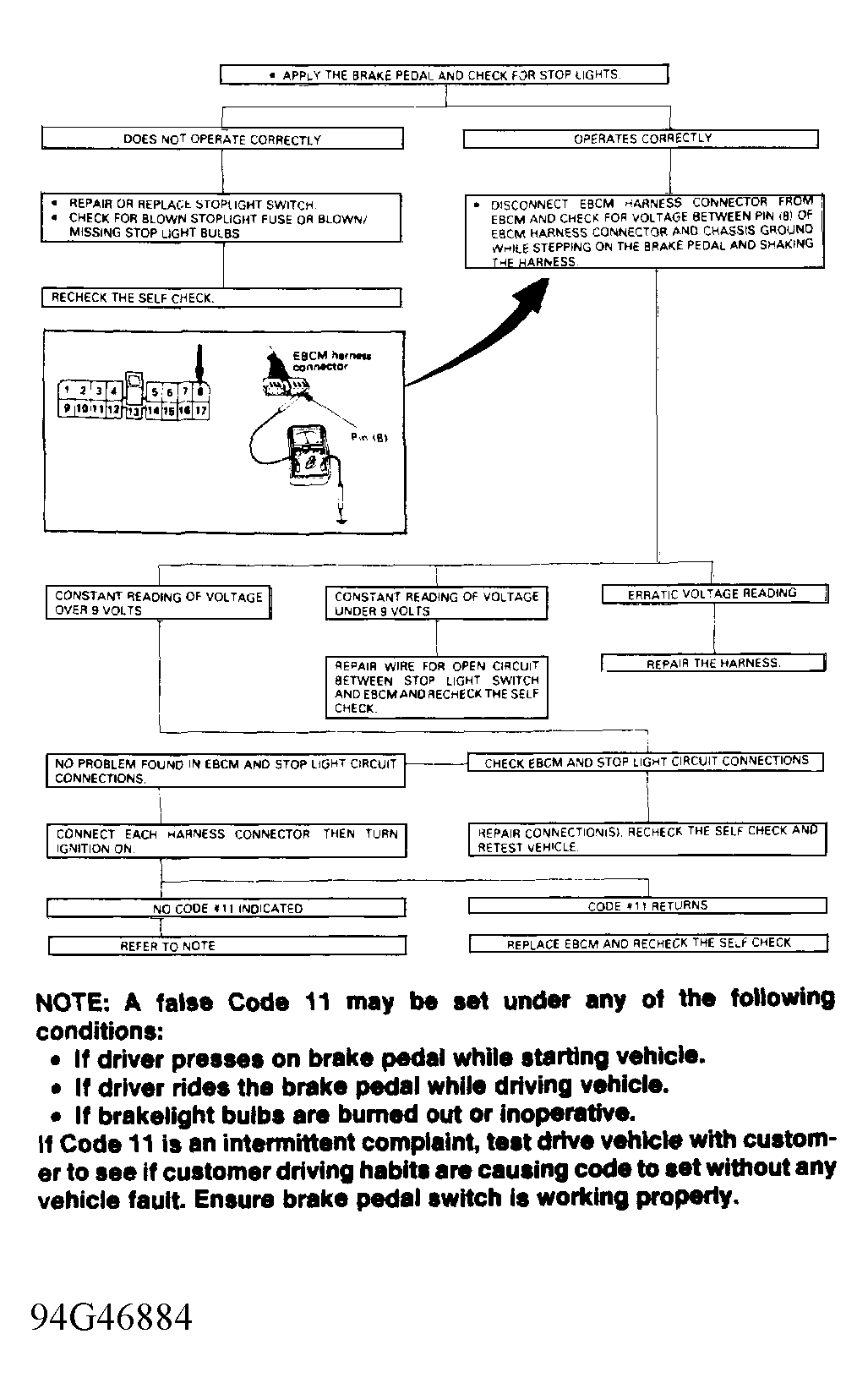

Fig 2: Code 11 - Defective Brakelight Switch Circuit (2 Of 2)
G94G46884Courtesy of ISUZU MOTOR CO.
