Hazard Warning Switch Test

WARNING: This page is about a different car, the 1996 Honda Civic del Sol and 1995 Honda Civic del Sol. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry hazard warning switch and rear window defogger switch from dash. Disconnect switch connectors. With hazard switch in specified position, use ohmmeter to check continuity between switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

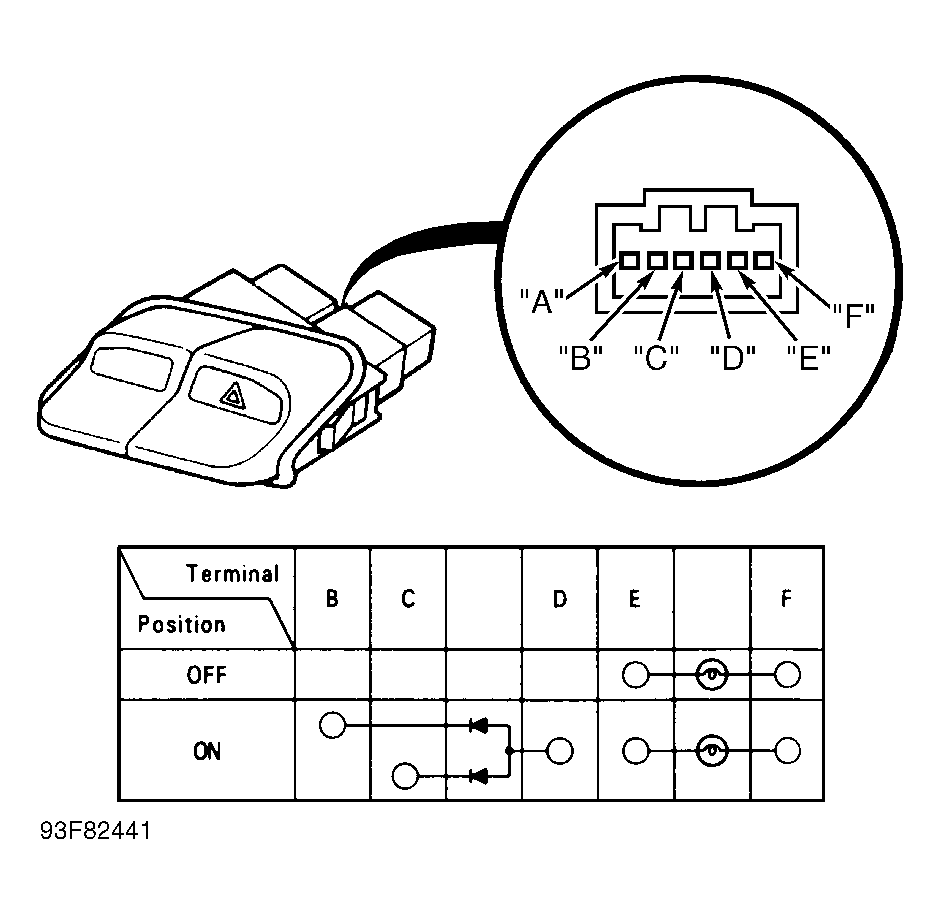

Fig 1: Testing Hazard Warning Switch
G93F82441Courtesy of AMERICAN HONDA MOTOR CO., INC.
