Code 21 - VTEC Solenoid Valve
Code 21 - VTEC Solenoid Valve
Fig 1: Code 21 Flow Chart (1 of 2) VTEC Solenoid Valve

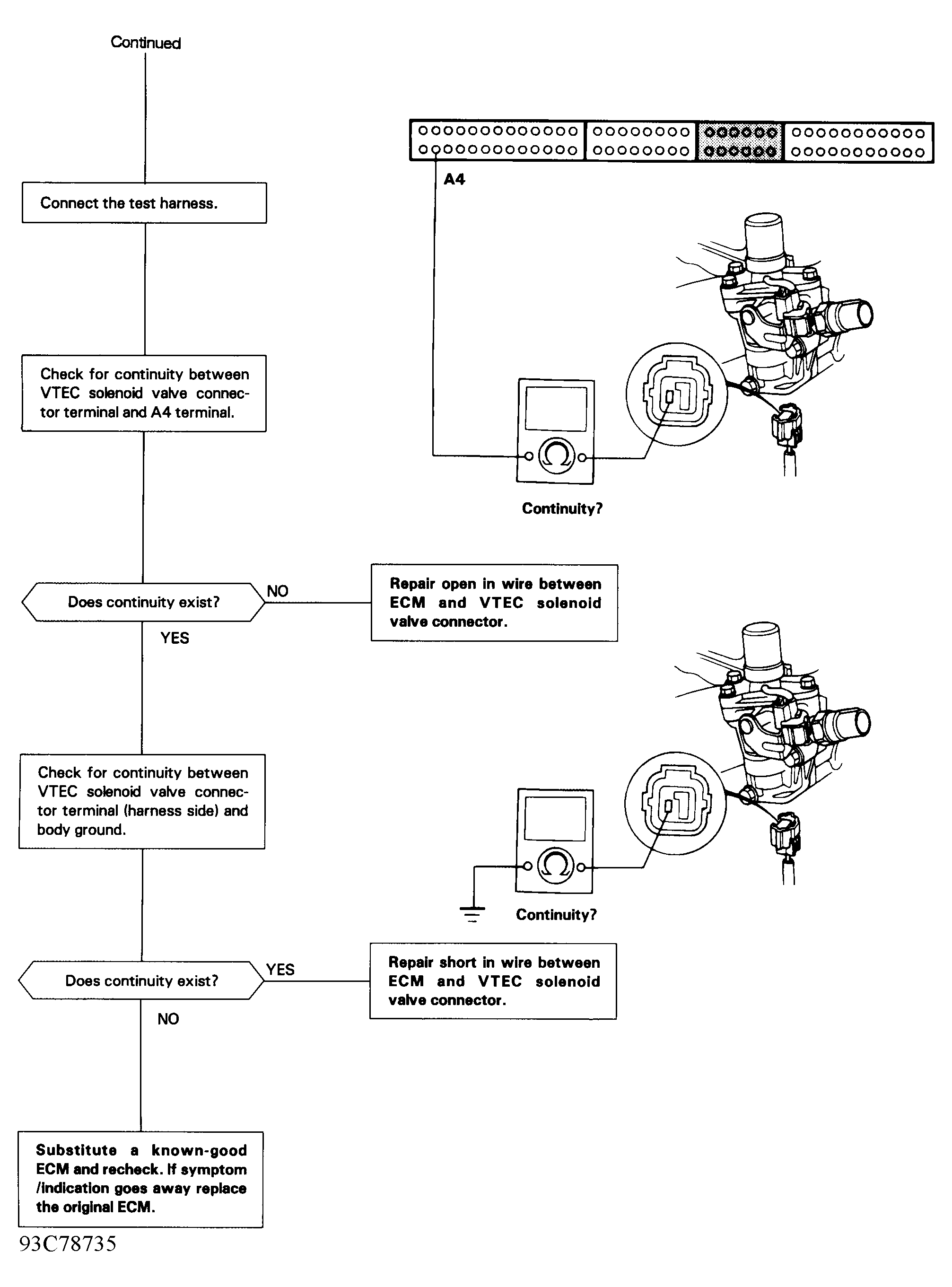

Fig 2: Code 21 Flow Chart (2 of 2) VTEC Solenoid Valve
