Seat Belt Switch

  1. Slide the drivers seat back. Disconnect the 2-P connector from the seat belt switch. See Fig 1 .
  2. There should be continuity between the A and B terminals when the seat belt is unbuckled. There should be no continuity when the seat belt is buckled.

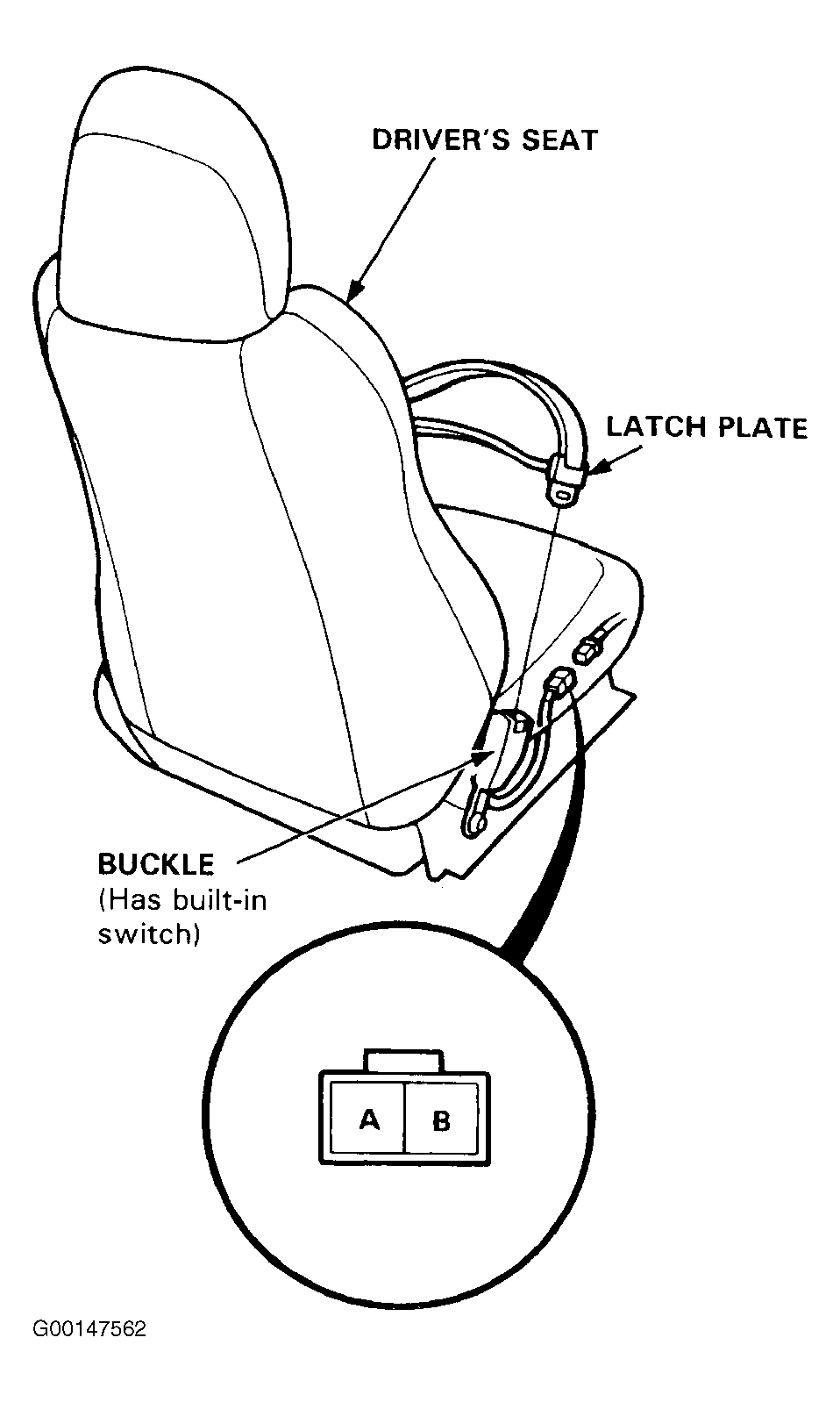

Fig 1: Locating & Identifying Seat Belt Switch 2-P Connector
G00147562Courtesy of AMERICAN HONDA MOTOR CO., INC.
