Switch Test

WARNING: This page is about a different car, the 1996 Honda Civic and 1995 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

Carefully remove sun roof switch from instrument panel. See SWITCH  under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 .

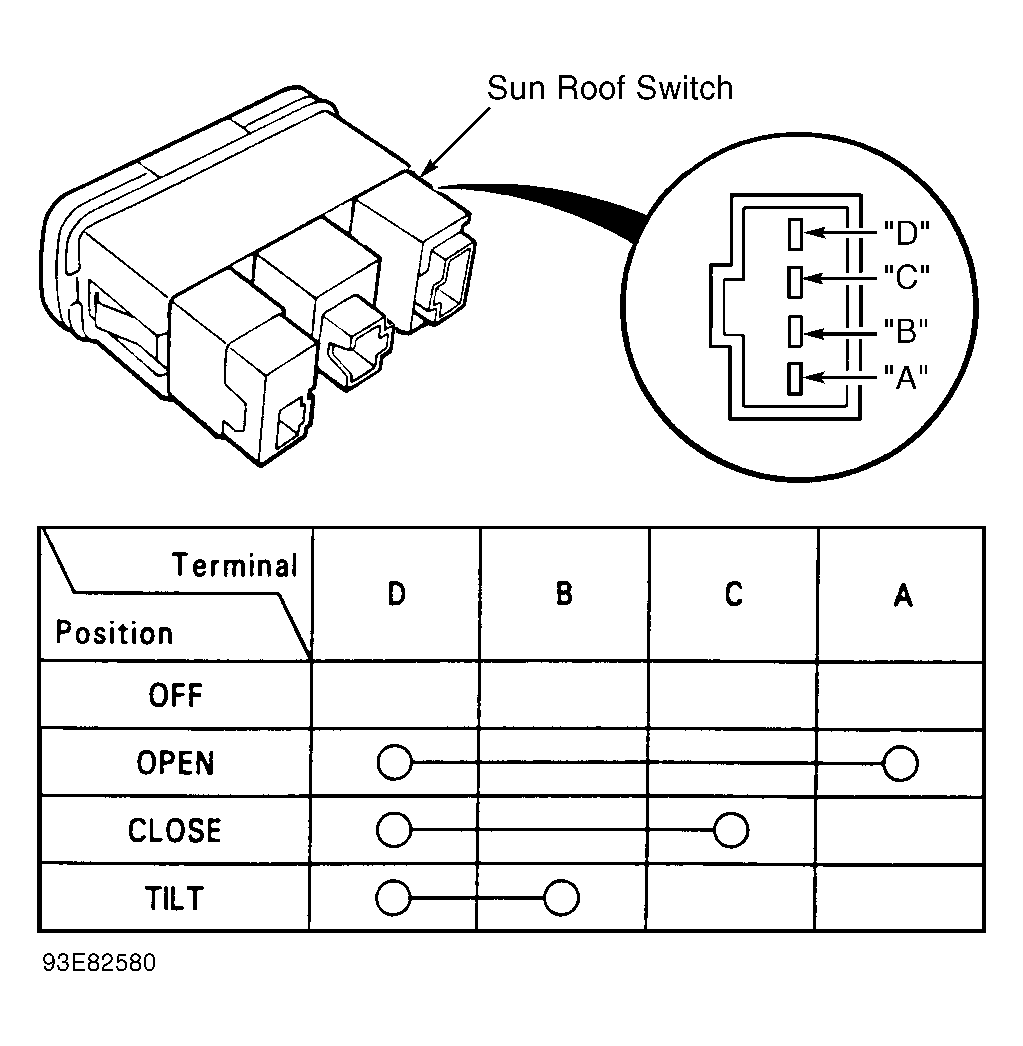

Fig 1: Testing Sun Roof Switch Continuity
G93E82580Courtesy of AMERICAN HONDA MOTOR CO., INC.
