Clearing Problem Codes

Problem codes may be cleared from system memory by removing clock/radio fuse No. 43 (10-amp), disconnecting 4WS control unit harness connector or by disconnecting battery.

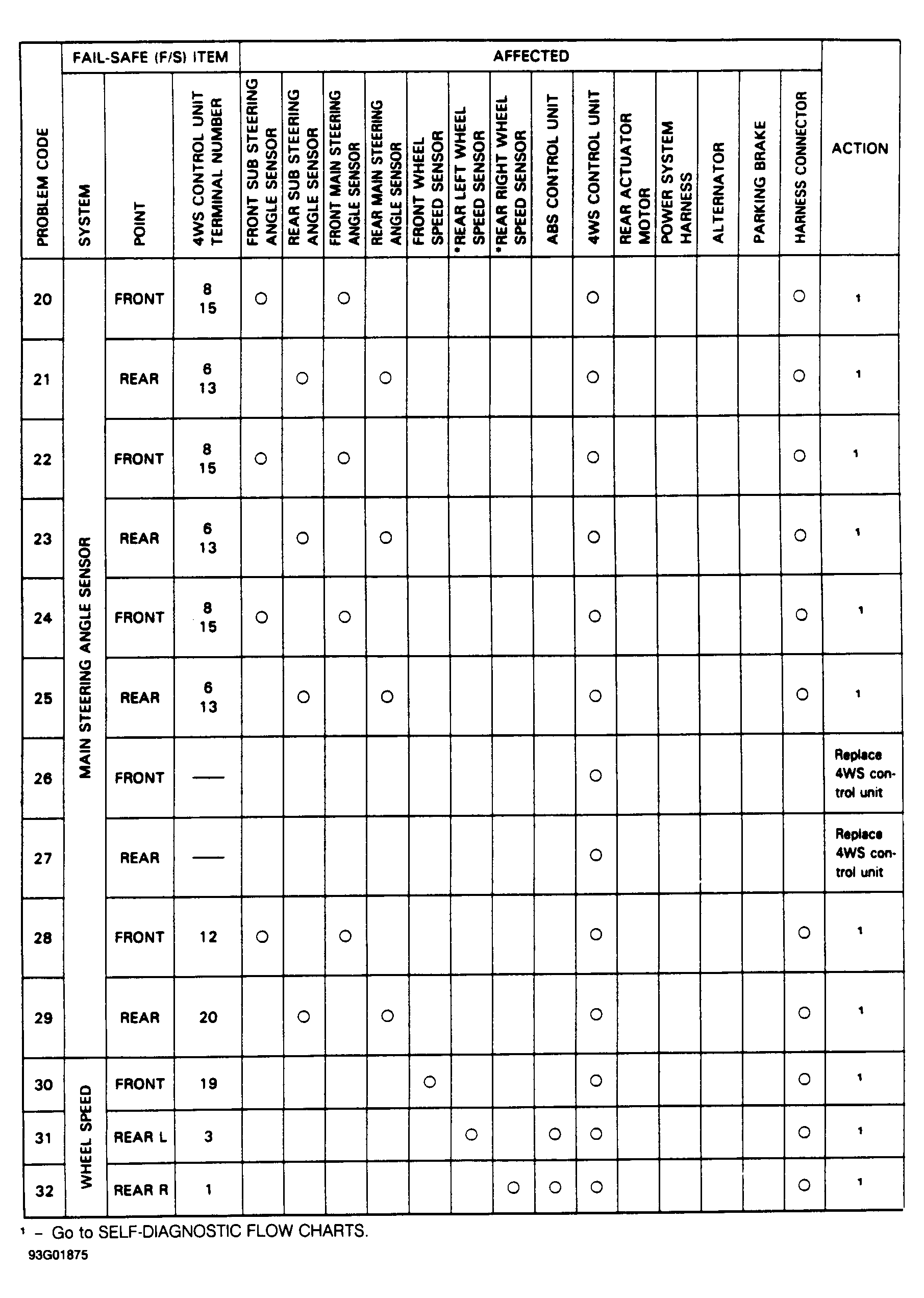

Fig 1: Identifying 4WS Problem Codes (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

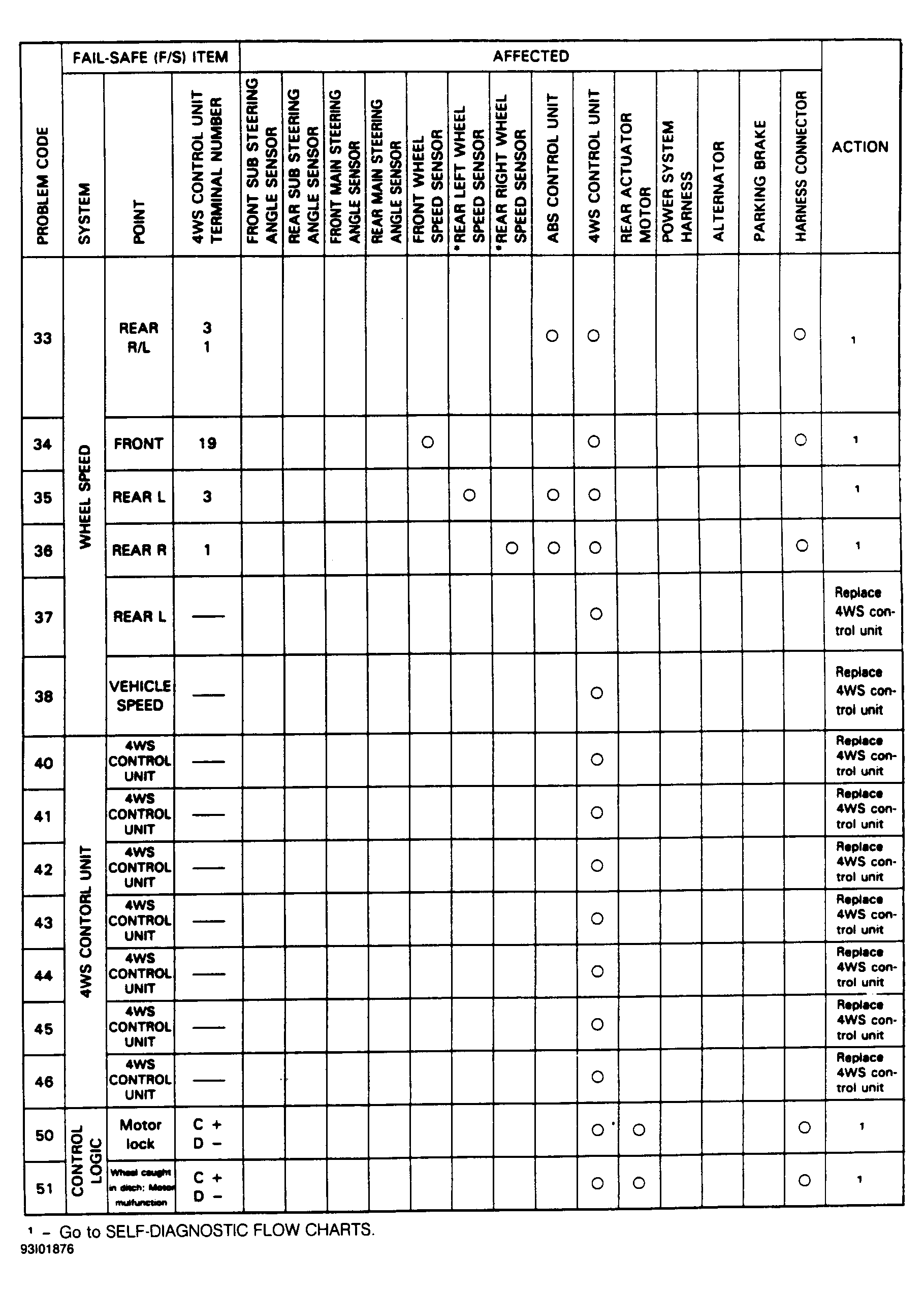

Fig 2: Identifying 4WS Problem Codes (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying 4WS Problem Codes (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying 4WS Problem Codes (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
