Wiring Diagrams

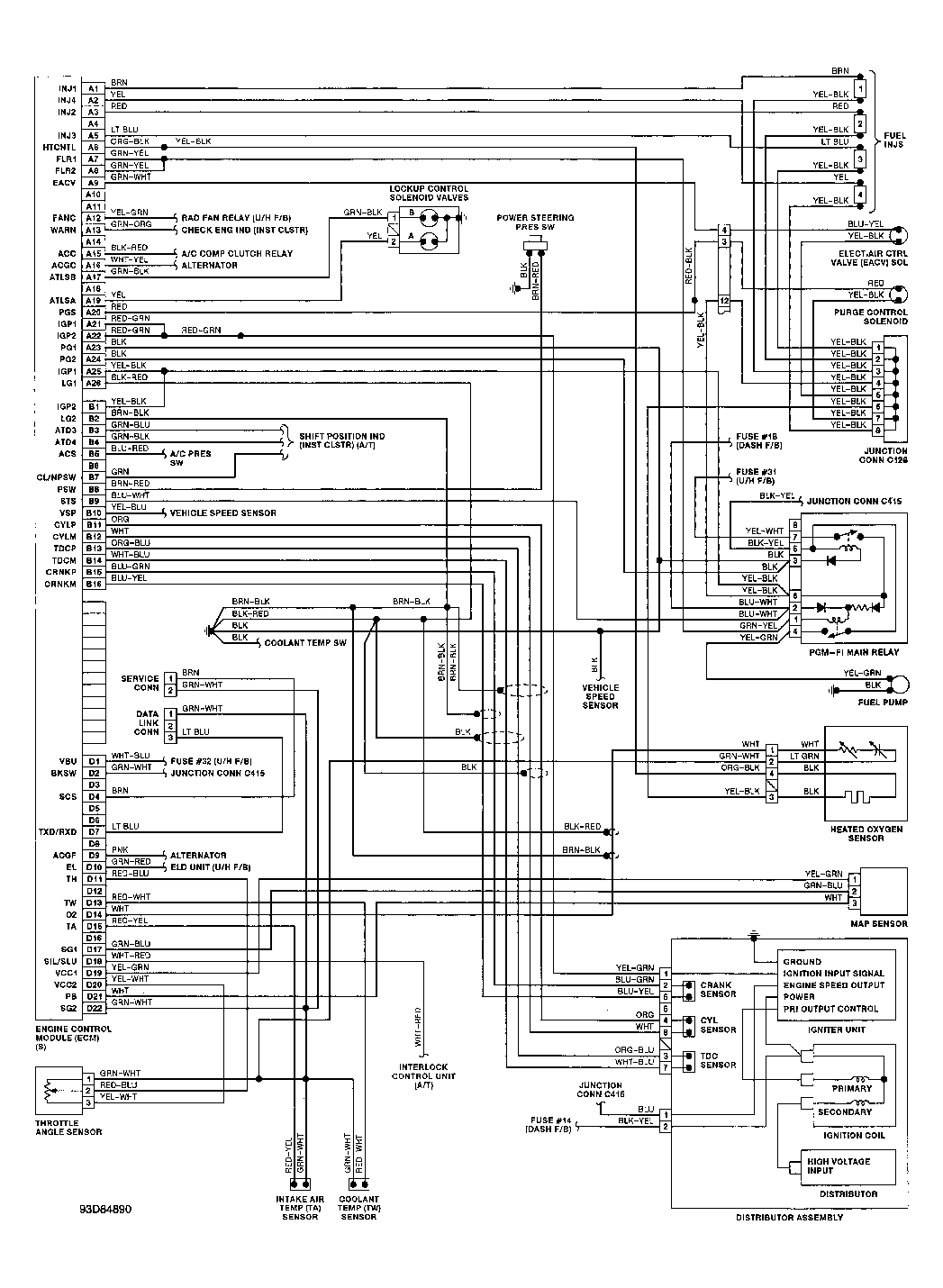

Fig 1: Wiring Diagram (Accord 2.2L)

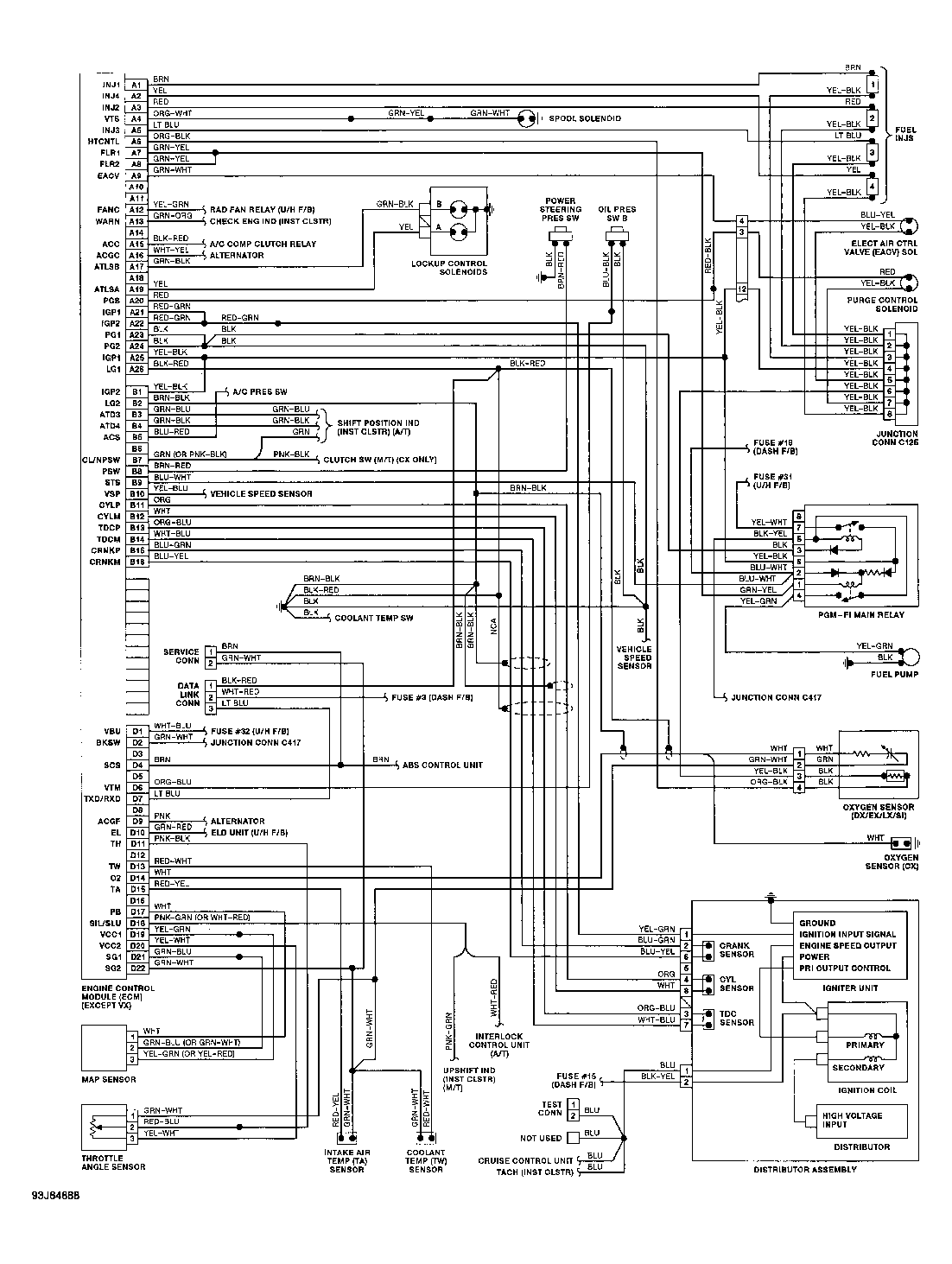

Fig 2: Wiring Diagram (Civic 1.5L & 1.6L - Except VX)

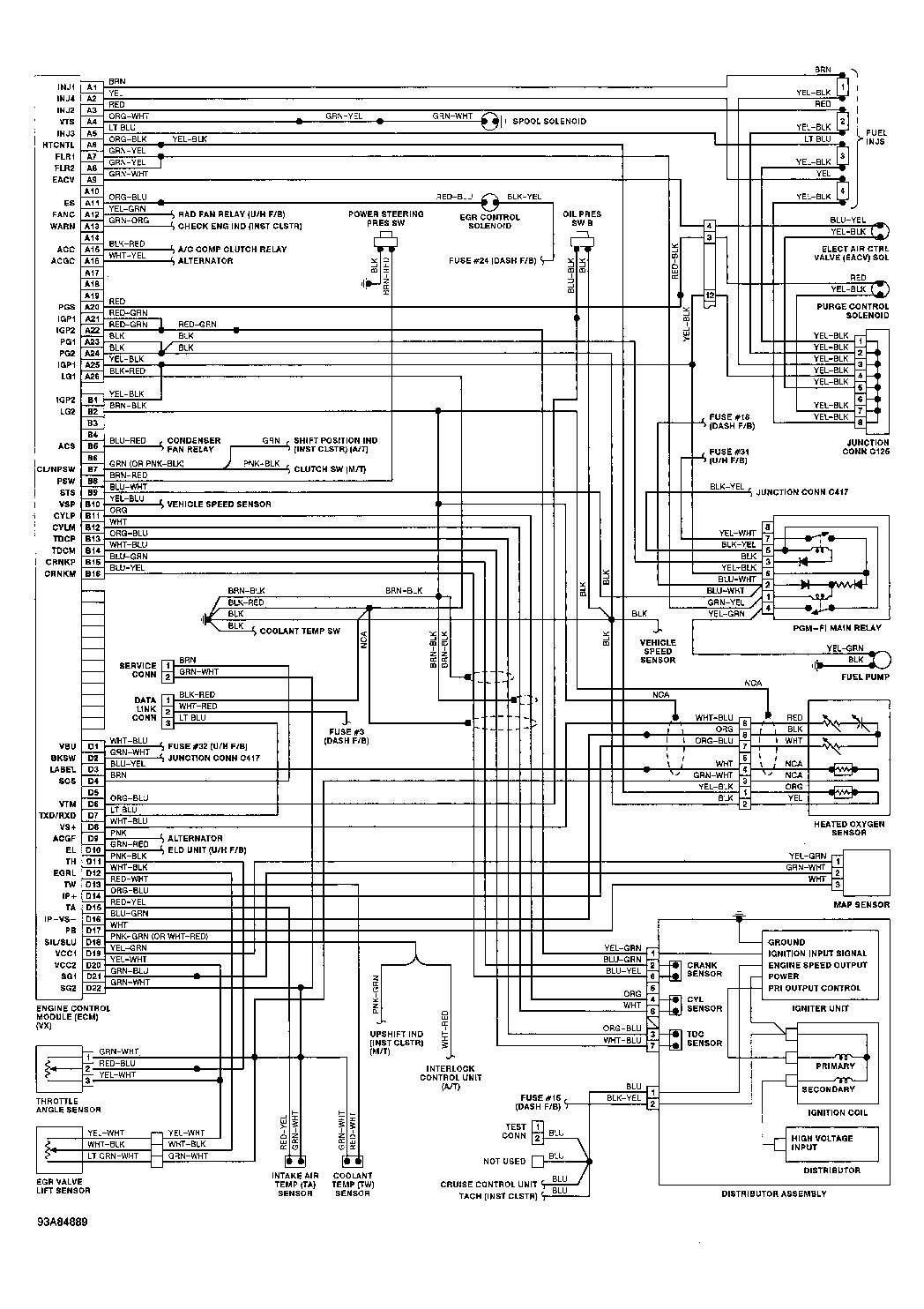

Fig 3: Wiring Diagram (Civic 1.5L - VX - VTEC-E)

Fig 4: Wiring Diagram (Civic Del Sol 1.5L - S)

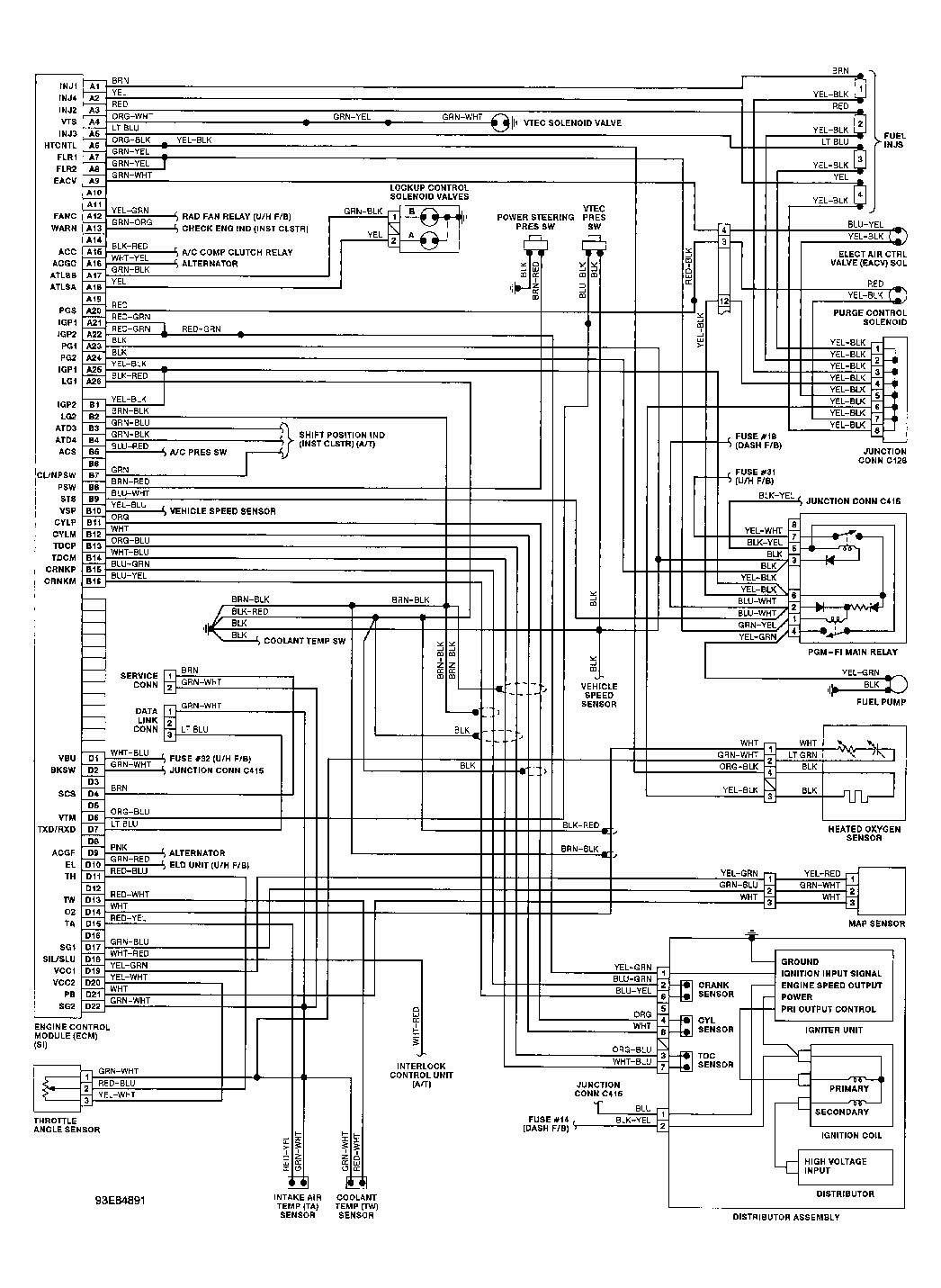

Fig 5: Wiring Diagram (Civic Del Sol 1.6L - Si)

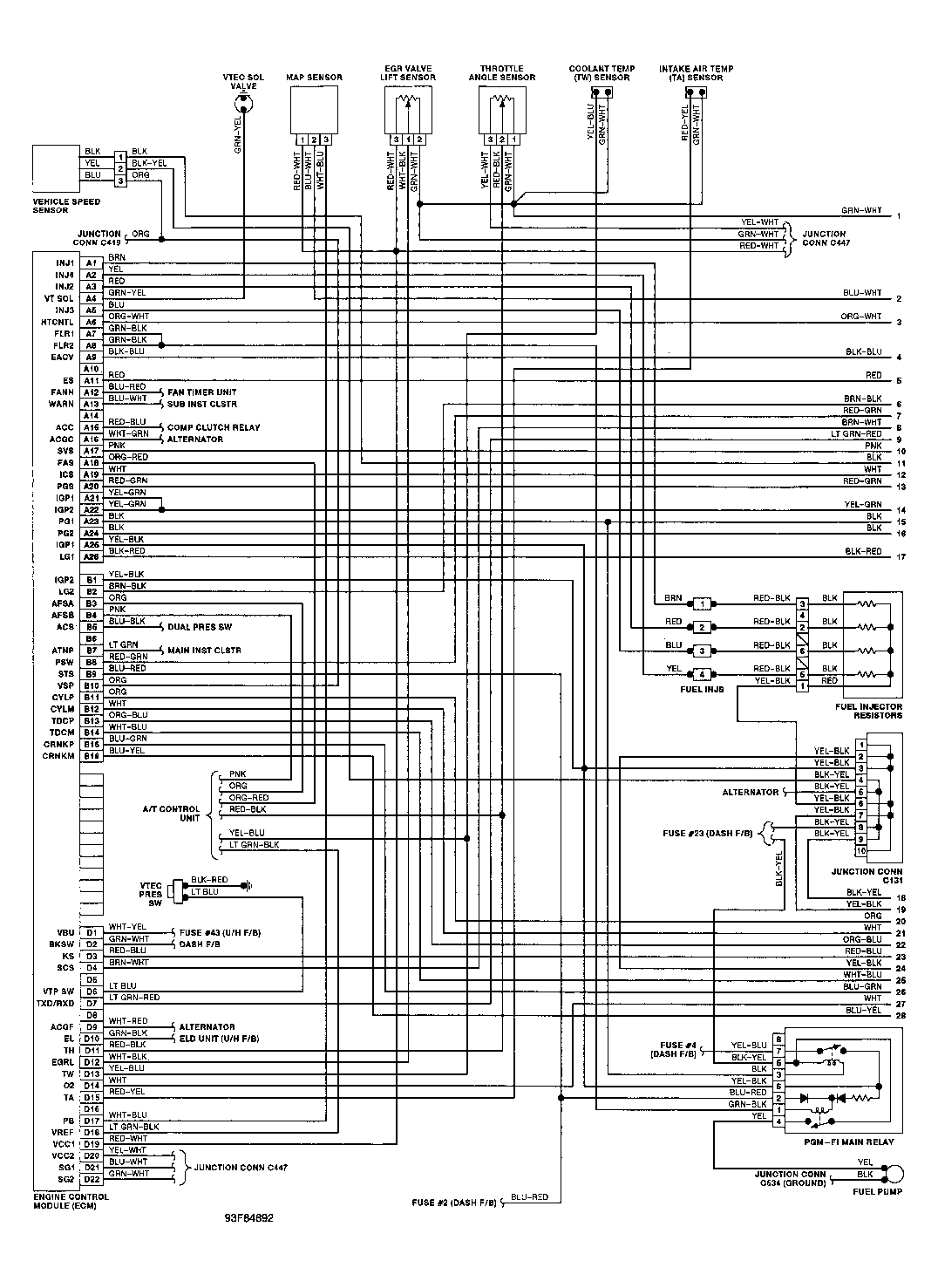

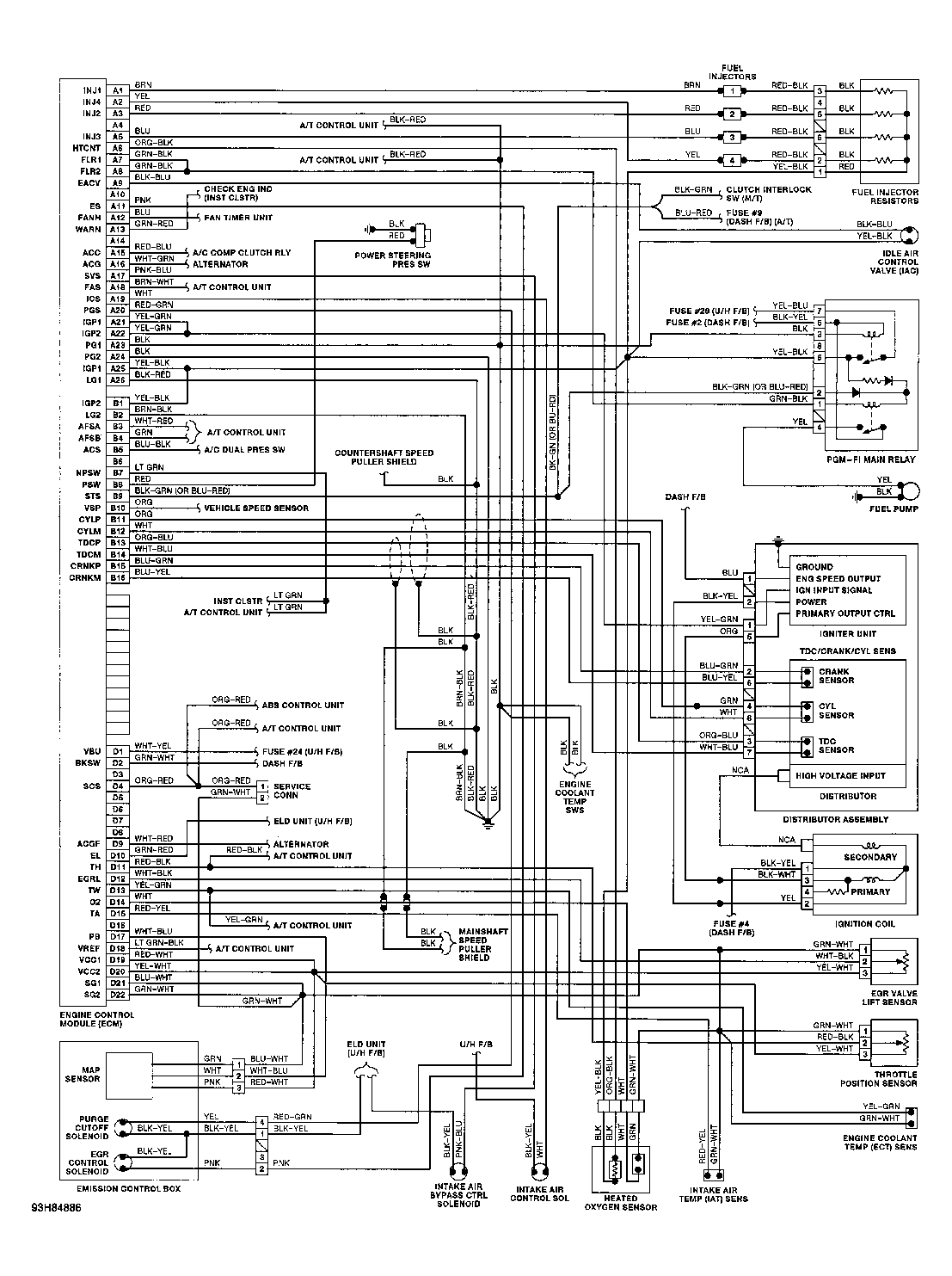

Fig 6: Wiring Diagram (Prelude 2.2L & 2.3L - 1 Of 2)

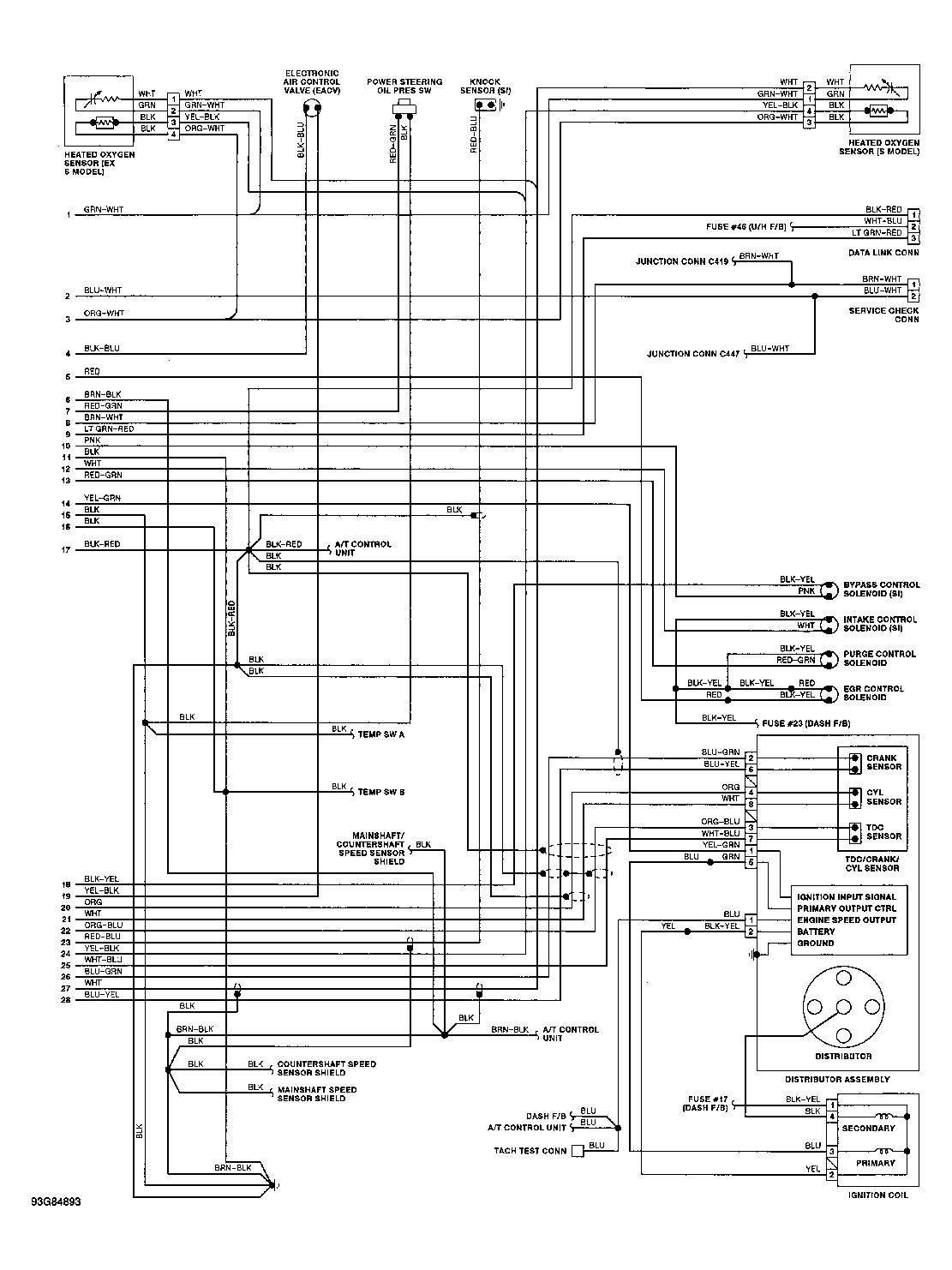

Fig 7: Wiring Diagram (Prelude 2.2L & 2.3L - 2 Of 2)
