Code 21 - VTEC Solenoid Valve

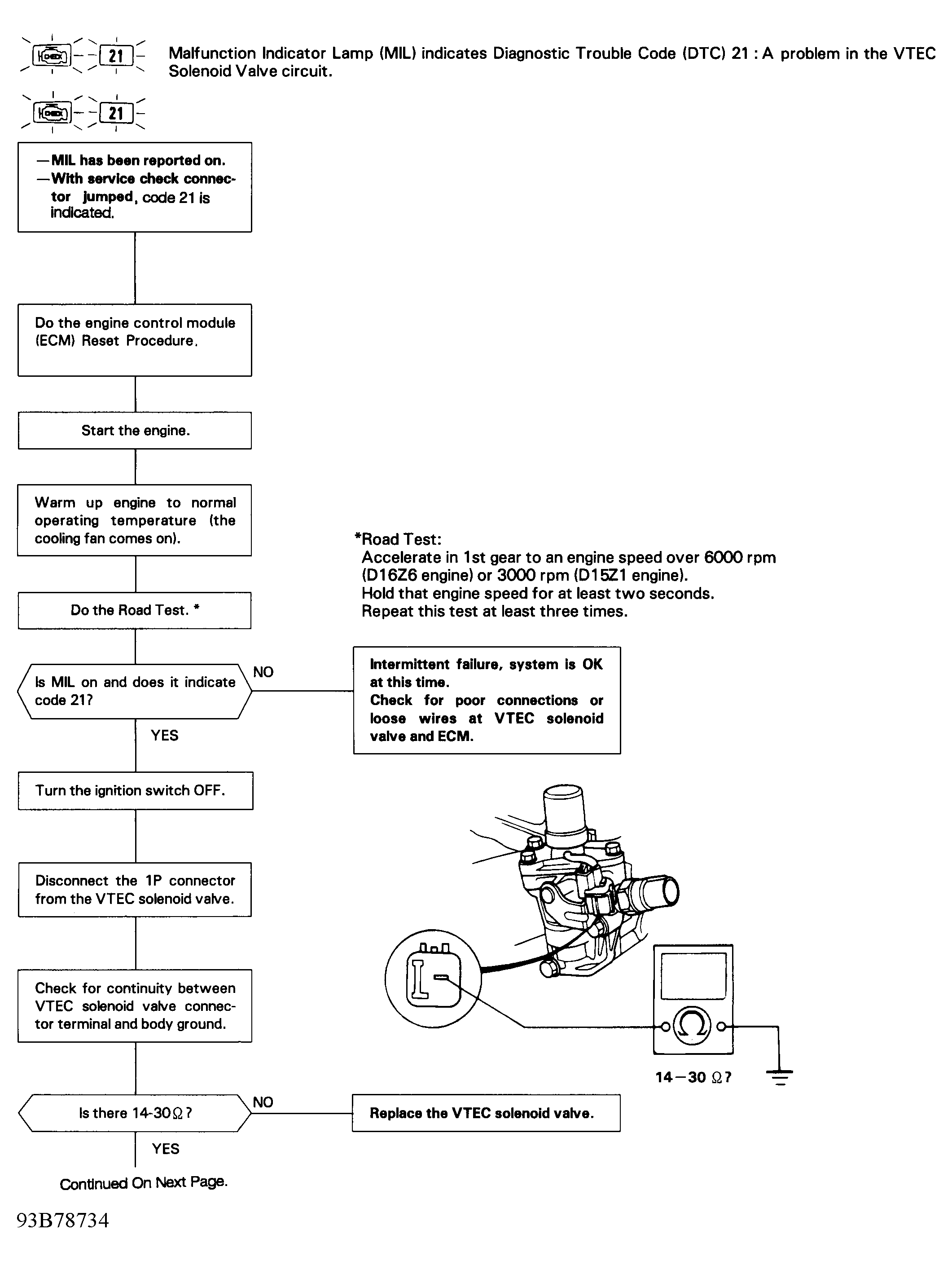

Fig 1: Code 21 Flowchart, VTEC Solenoid Valve (1 of 2)
G93B78734Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Code 21 Flowchart, VTEC Solenoid Valve (2 of 2)
G93C78735Courtesy of AMERICAN HONDA MOTOR CO., INC.
