Seat Belt Switch

  1. Slide the drivers seat back, then disconnect the 2-P connector from the seat belt switch. See Fig 1 .
  2. There should be continuity between the "A" and "B" terminals when the seat belt is unbuckled. There should be no continuity when the seat belt is buckled.

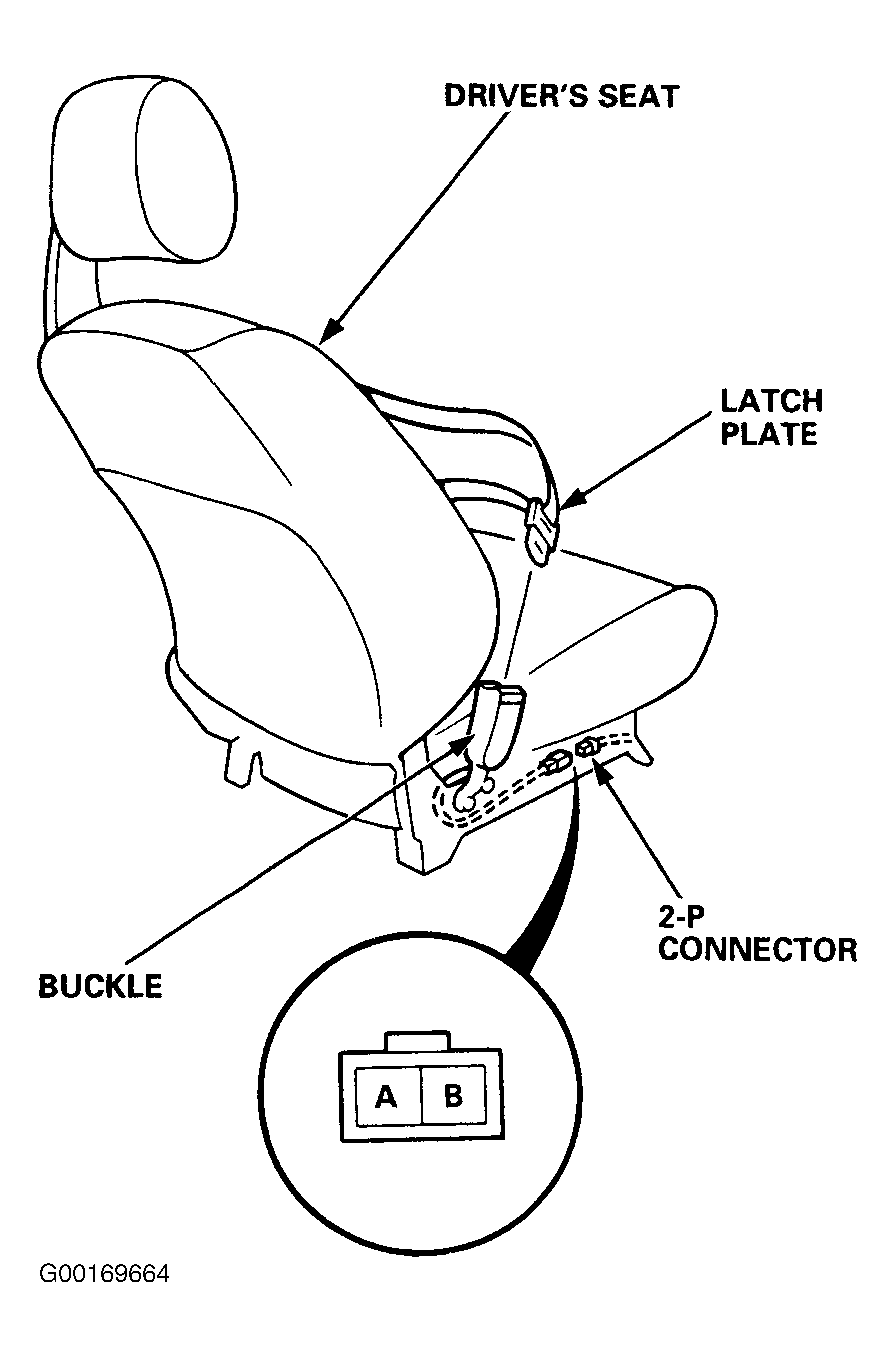

Fig 1: Locating & Identifying Power Seat Belt Switch Connector
G00169664Courtesy of AMERICAN HONDA MOTOR CO., INC.
