Bulb Check System (Brake System Light)

For connector terminal identification, see Figure . For input test, see Fig 1 .

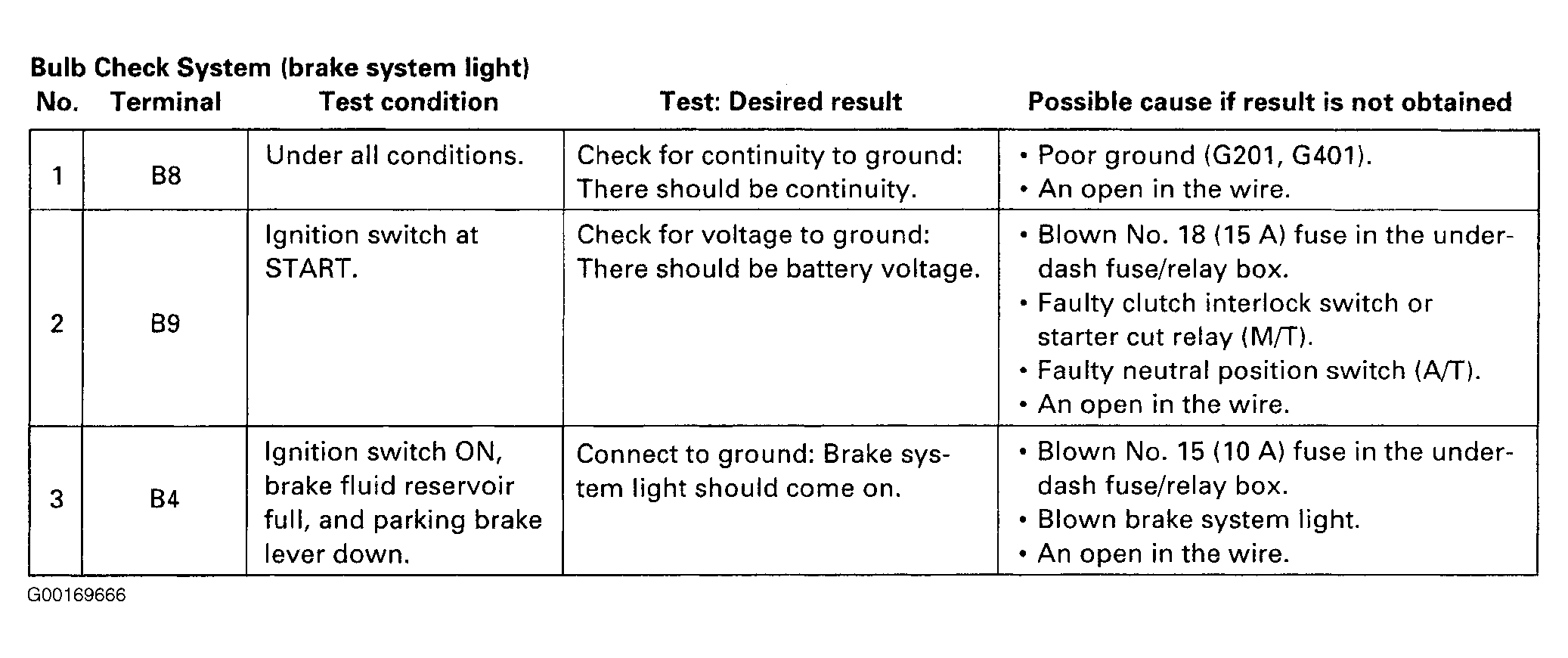

Fig 1: Bulb Check System (Brake System Light) Input Test
G00169666Courtesy of AMERICAN HONDA MOTOR CO., INC.
