Code 20 - Electrical Load Detector (Eld)

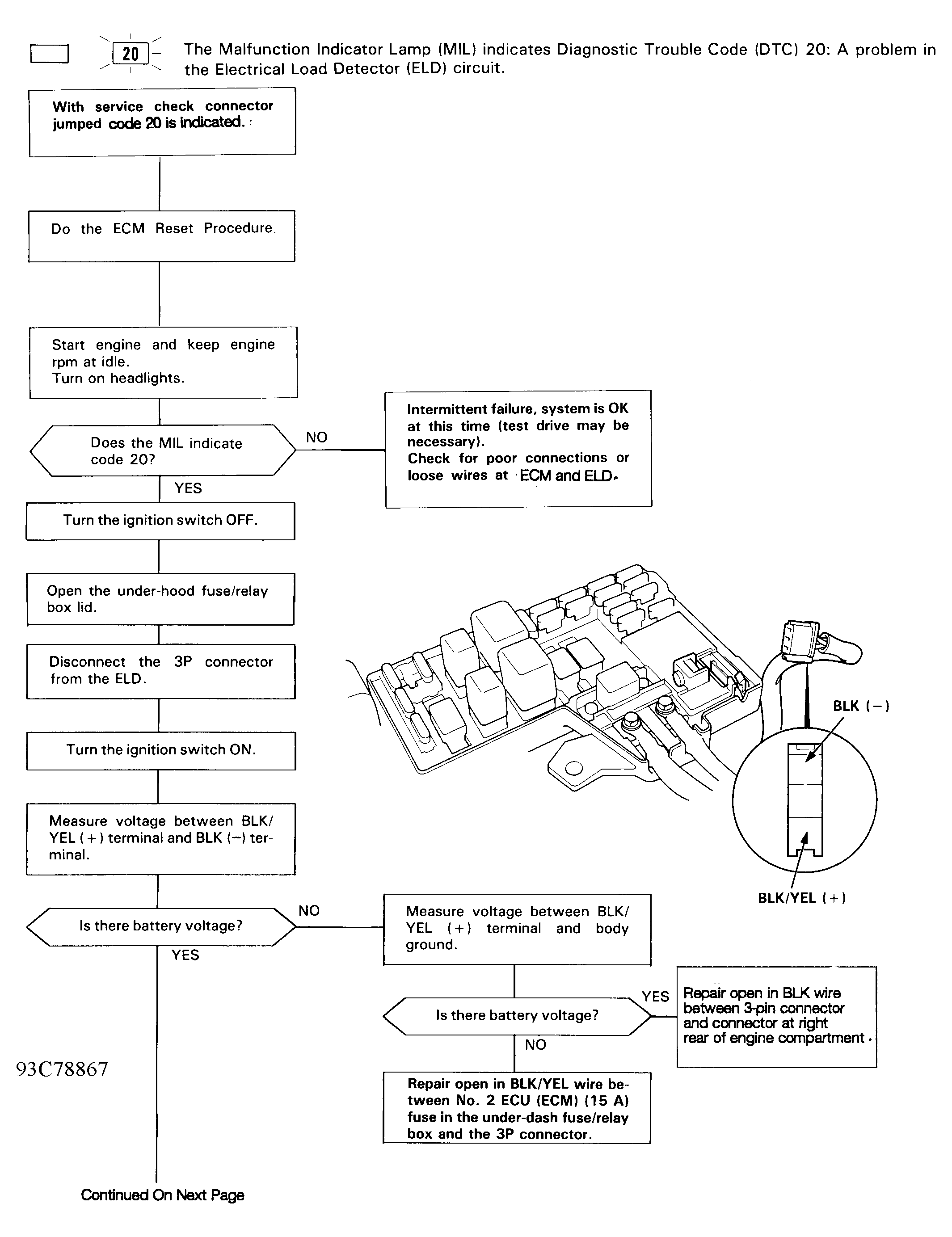

Fig 1: Code 20 Flowchart, Electrical Load Detector (1 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

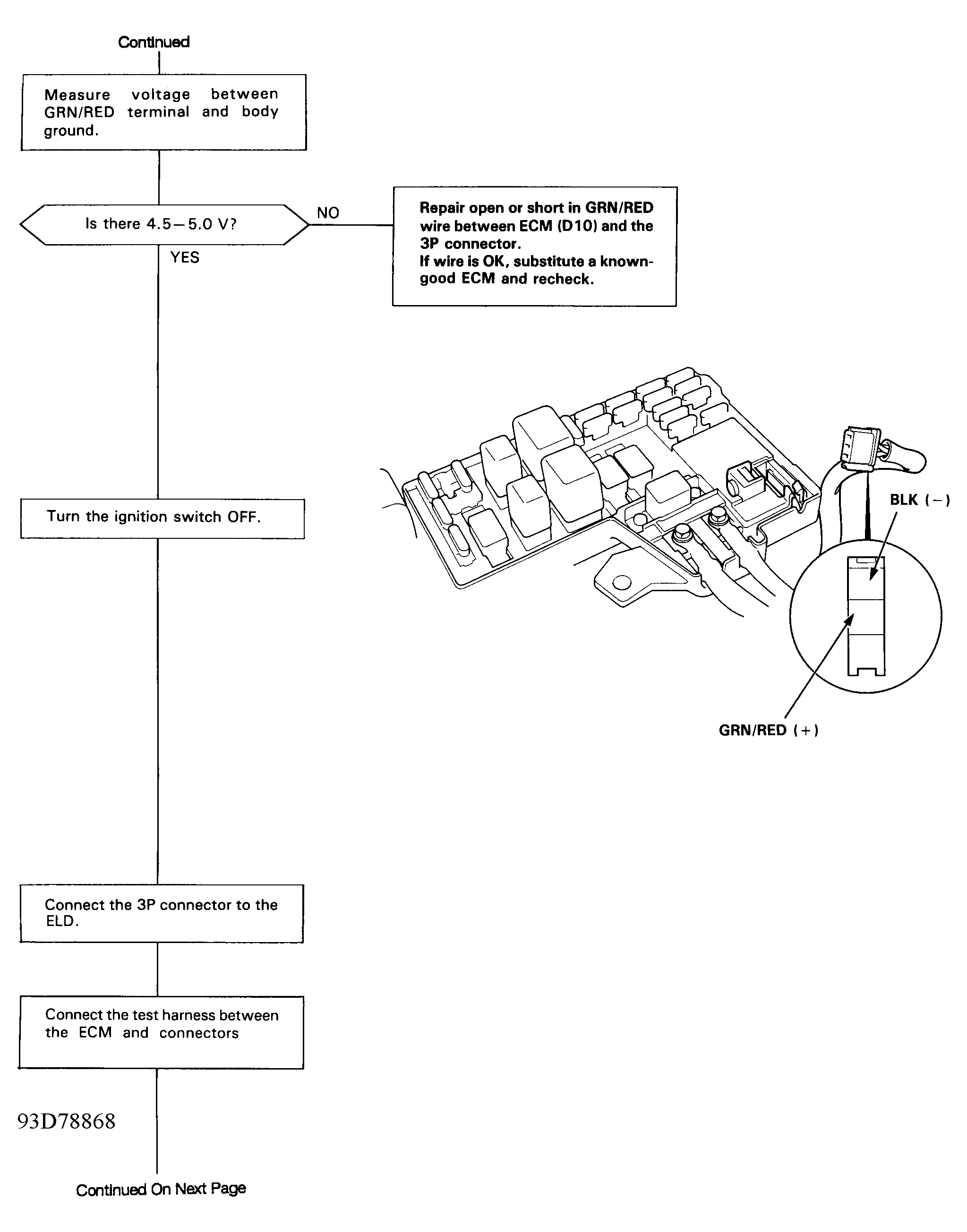

Fig 2: Code 20 Flowchart, Electrical Load Detector (2 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

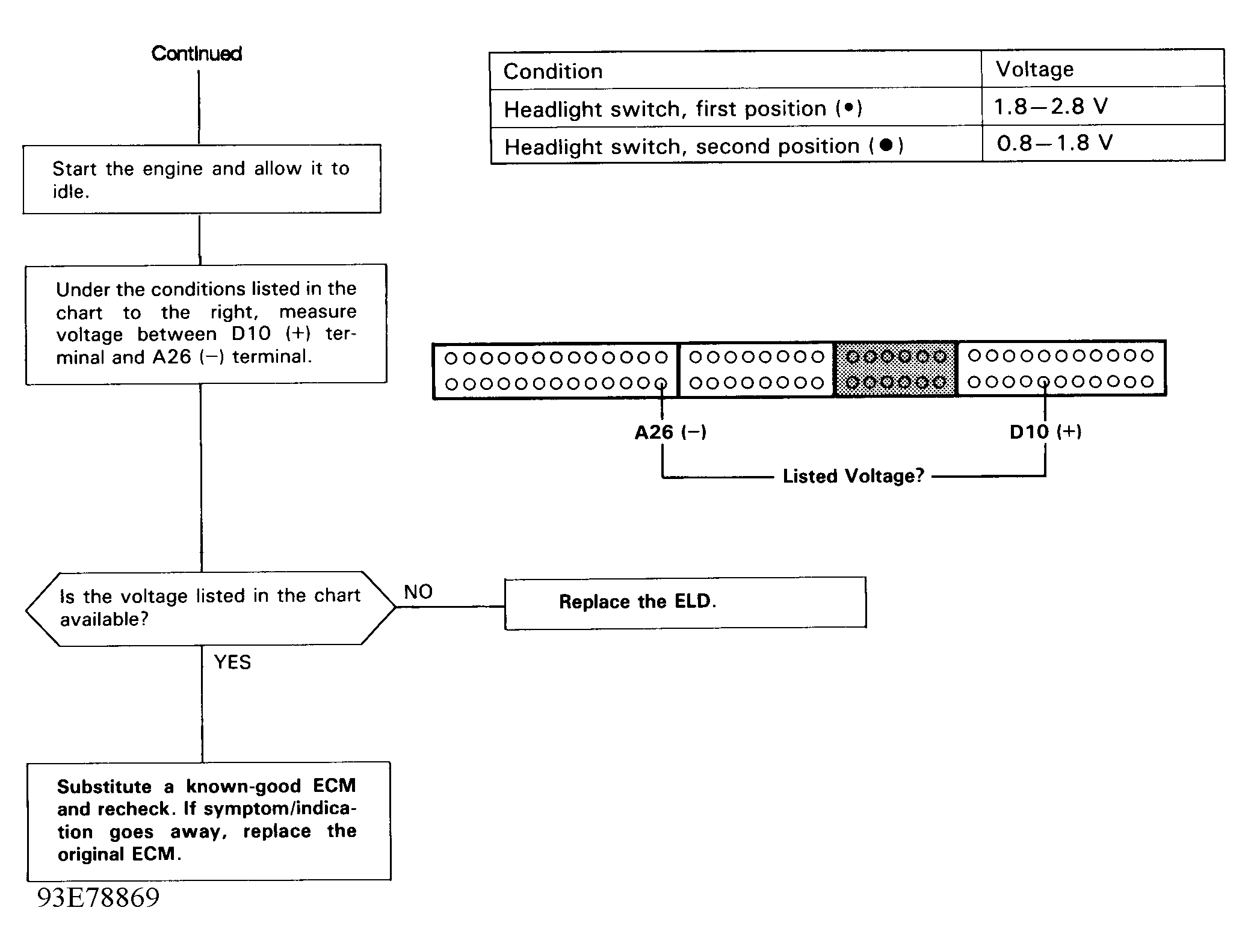

Fig 3: Code 20 Flowchart, Electrical Load Detector (3 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
