Passenger's Window Switch Test

Remove power window switch. See PASSENGER'S POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See POWER WINDOW PASSENGER'S SWITCH CONTINUITY TEST table.

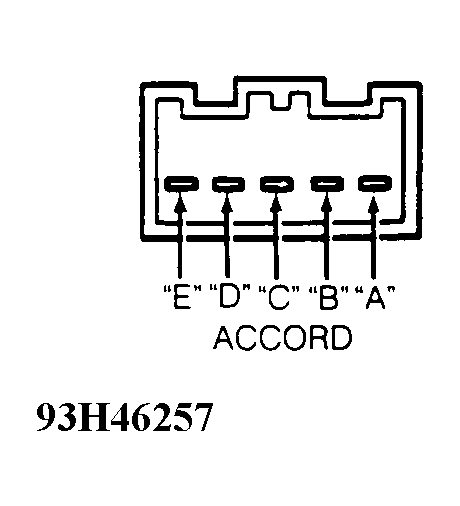

Fig 1: Passenger Power Window Switch Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER WINDOW PASSENGER'S SWITCH CONTINUITY TEST

Switch Position	Continuity
Off	"A" & "D"; "B" & "C"
Up	"A" & "D"; "B" & "E"
Down	"B" & "C"; "D" & "E"
