Master Switch Test

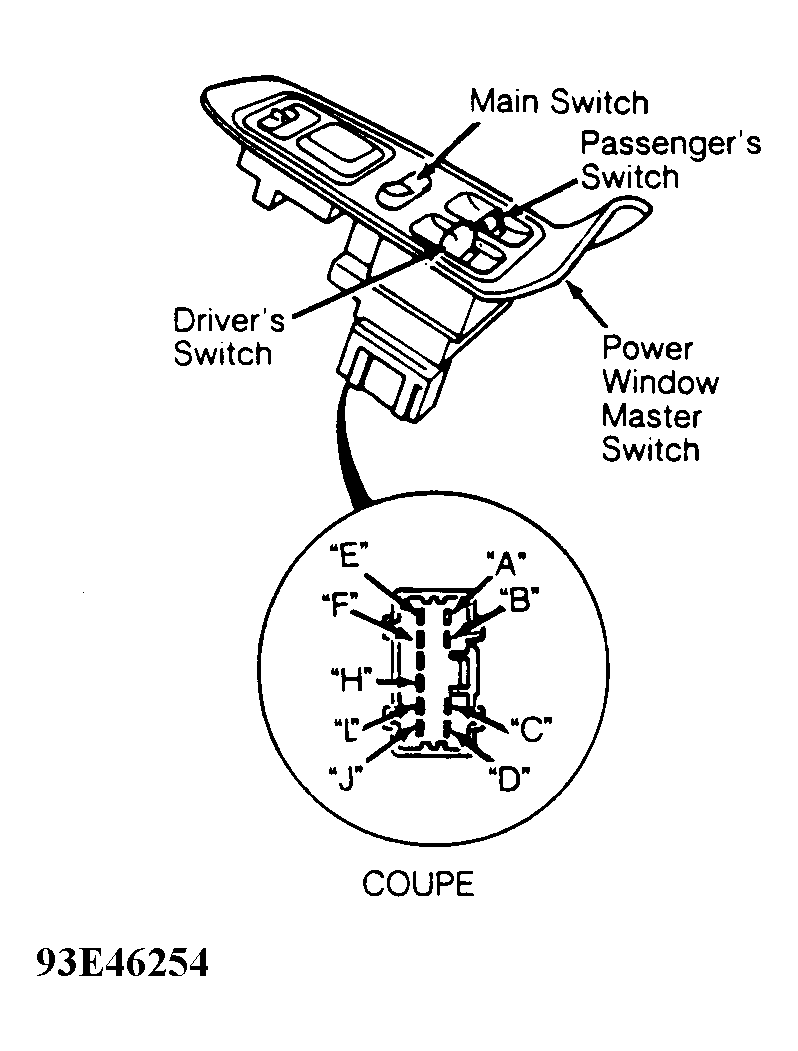

Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1

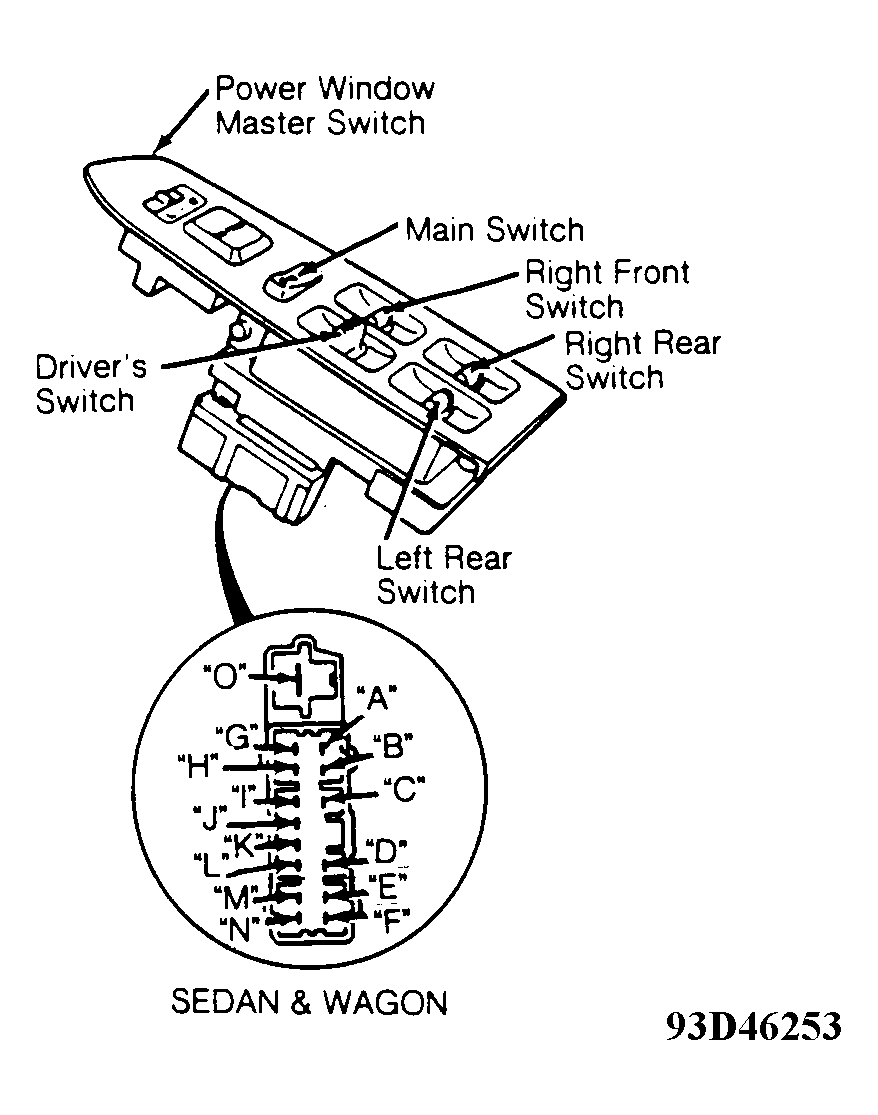

and Fig 2
. See appropriate POWER WINDOW MASTER SWITCH CONTINUITY TEST table.
Courtesy of AMERICAN HONDA MOTOR CO., INC. POWER WINDOW MASTER SWITCH CONTINUITY TEST (COUPE)
| Position |
Main Switch |
Pin Continuity |
| Driver' Switch |
| Off |
|
"F", "H" & "I" |
| Up |
|
"I" & "J" |
| Down |
|
"F" & "J" |
| Down (AUTO) |
|
"F" & "J" |
| Passenger's Switch |
| Off |
On |
"B", "C" & "D" |
| Off |
Off |
"C" & "D" |
| Up |
On |
"D" & "E" |
| Up |
Off |
"D" & "E" |
| Down |
On |
"C" & "E" |
| Down |
Off |
"C" & "E" |
Courtesy of AMERICAN HONDA MOTOR CO., INC. POWER WINDOW MASTER SWITCH CONTINUITY TEST (SEDAN/WAGON)
| Position |
Main Switch |
Pin Continuity |
| Left Front Switch |
| Off |
|
"H", "I" & "J" |
| Up |
|
"G" & "J" |
| Down |
|
"G" & "H" |
| Down (AUTO) |
|
"G" & "H" |
| Right Front Switch |
| Off |
On |
"A", "B" & "O" |
| Off |
Off |
"A" & "B" |
| Up |
On |
"M" & "B" |
| Up |
Off |
"M" & "B" |
| Down |
On |
"M" & "A" |
| Down |
Off |
"M" & "A" |
| Right Rear Switch |
| Off |
On |
"F", "E" & "O" |
| Off |
Off |
"F" & "E" |
| Up |
On |
"N" & "F" |
| Up |
Off |
"N" & "F" |
| Down |
On |
"N" & "E" |
| Down |
Off |
"N" & "E" |
| Left Rear Switch |
| Off |
On |
"C", "D" & "O" |
| Off |
Off |
"C" & "D" |
| Up |
On |
"L" & "D" |
| Up |
Off |
"L" & "D" |
| Down |
On |
"L" & "C" |
| Down |
Off |
"L" & "C" |
