Code 3 - Map Sensor Circuit

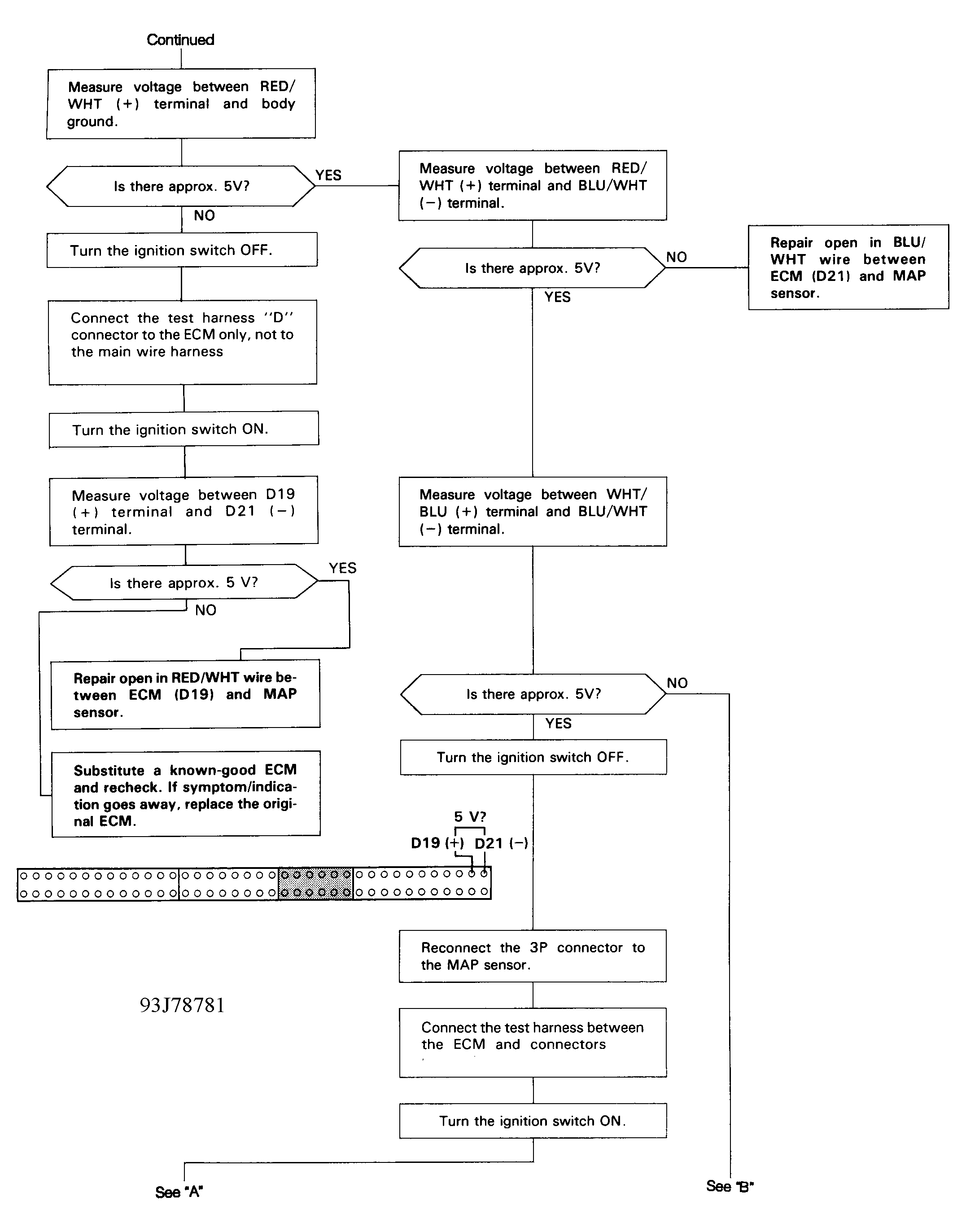

Fig 1: Code 3 Flowchart, MAP Sensor Circuit (1 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

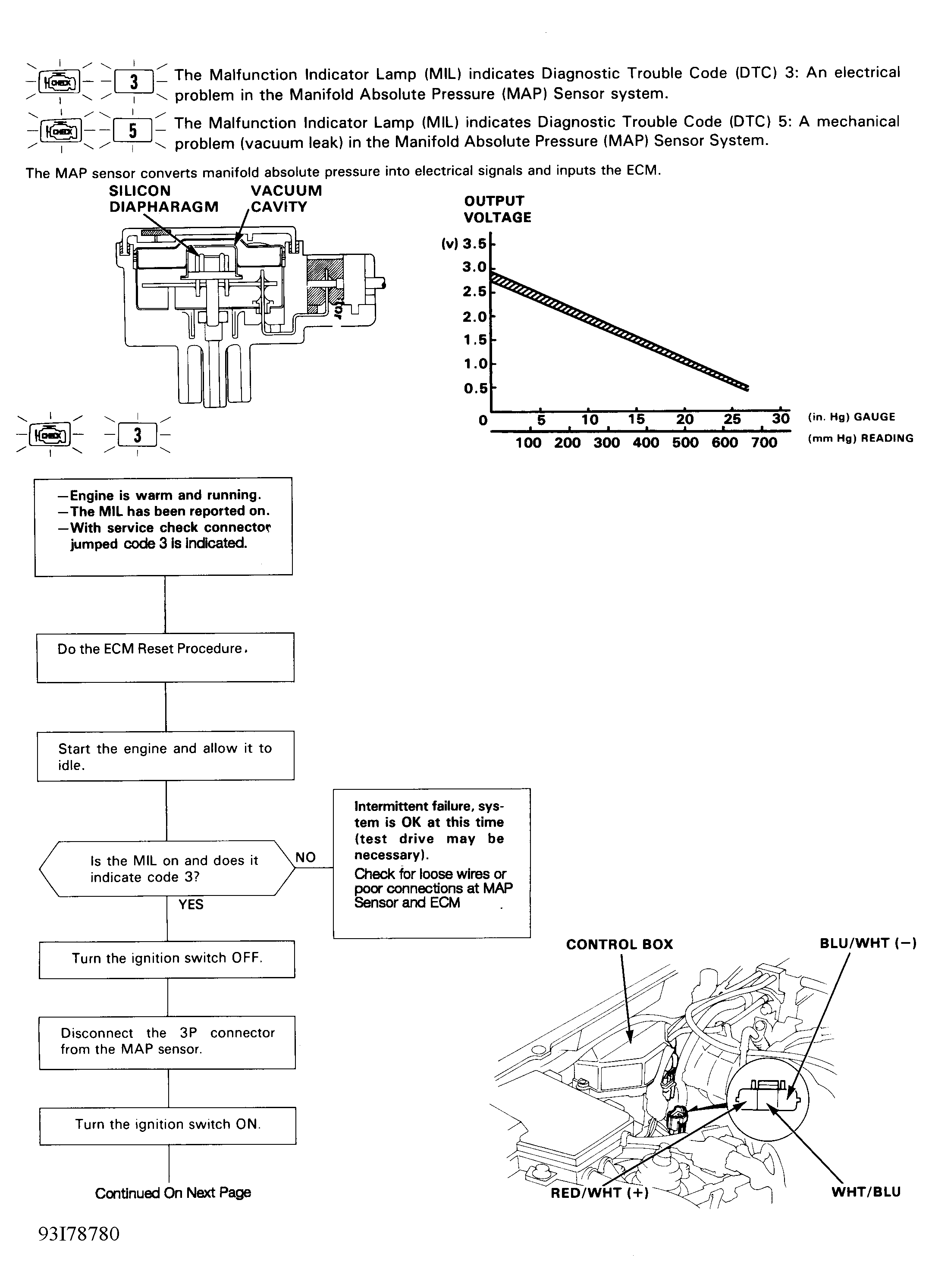

Fig 2: Code 3 Flowchart, MAP Sensor Circuit (2 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

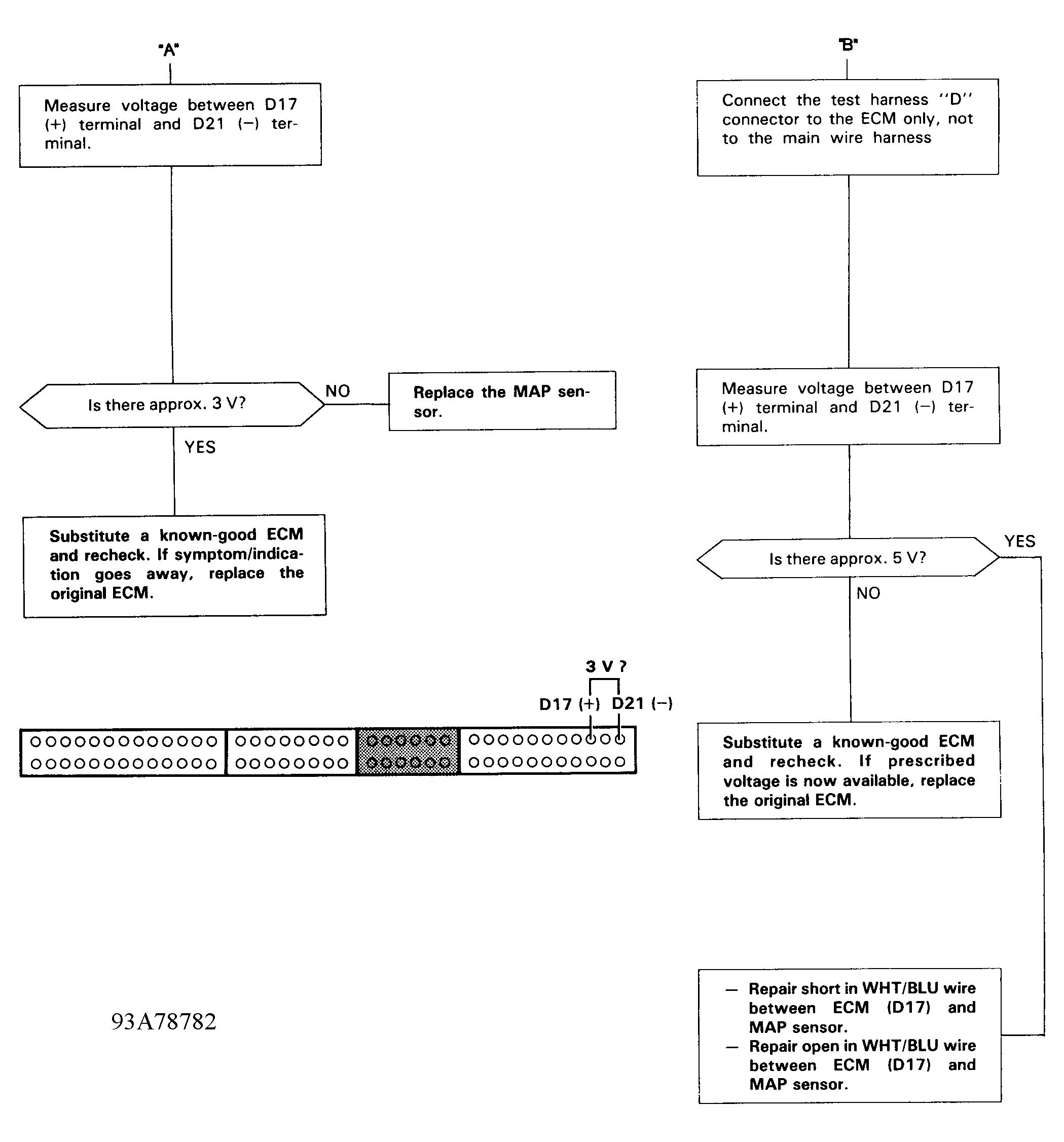

Fig 3: Code 3 Flowchart, MAP Sensor Circuit (3 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
