Toe-In Adjustment: Civic

Secure steering wheel in straight-ahead position. Measure front wheel toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is needed, loosen tie rod lock nuts. Turn both tie rods equally in the same direction until front wheels are in straight-ahead position and toe-in reading is correct. Tighten tie rod lock nuts. Reposition tie rod boots if twisted. Tighten adjusting bolts.
Ensure parking brake is released. Check rear wheel toe-in. If adjustment is needed, hold adjusting bolt on rear compensator arm and loosen lock nut. See Fig 1. Adjust rear toe-in by sliding rear control arm until rear toe-in is correct. Install NEW lock nut, and tighten it while holding adjusting bolt.

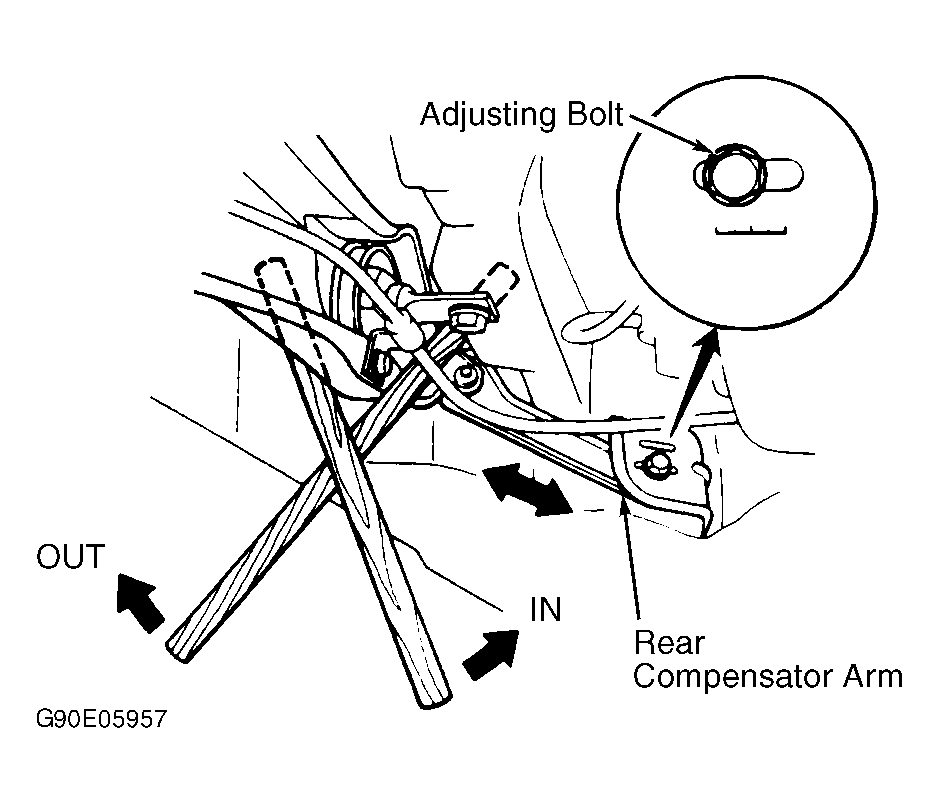

Fig 1: Adjusting Rear Toe-In (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
