Code 41 - Oxygen Sensor Heater Circuit

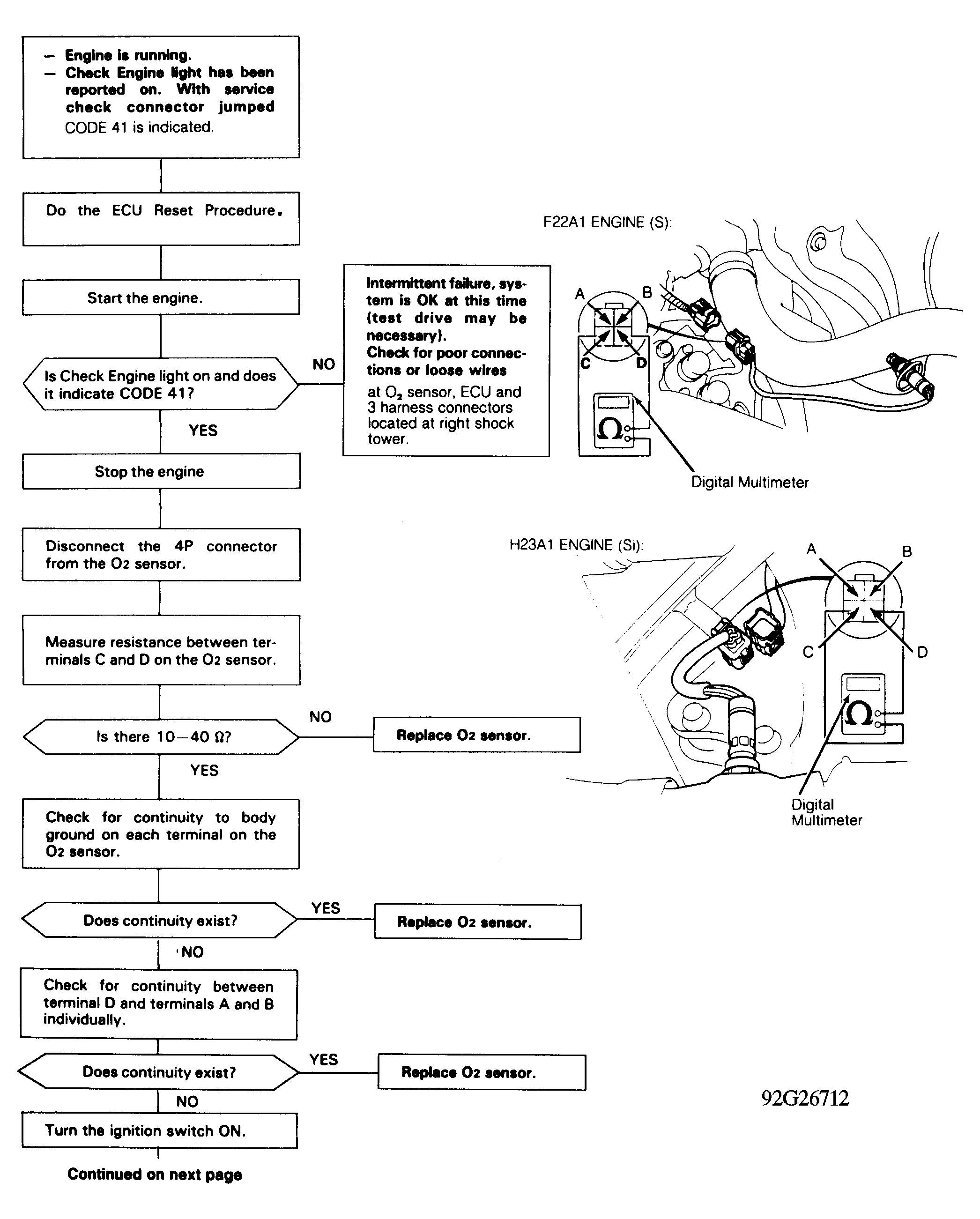

Fig 1: Code 41 Chart (1 OF 3) - Oxygen Sensor Heater CKT.
G92G26712

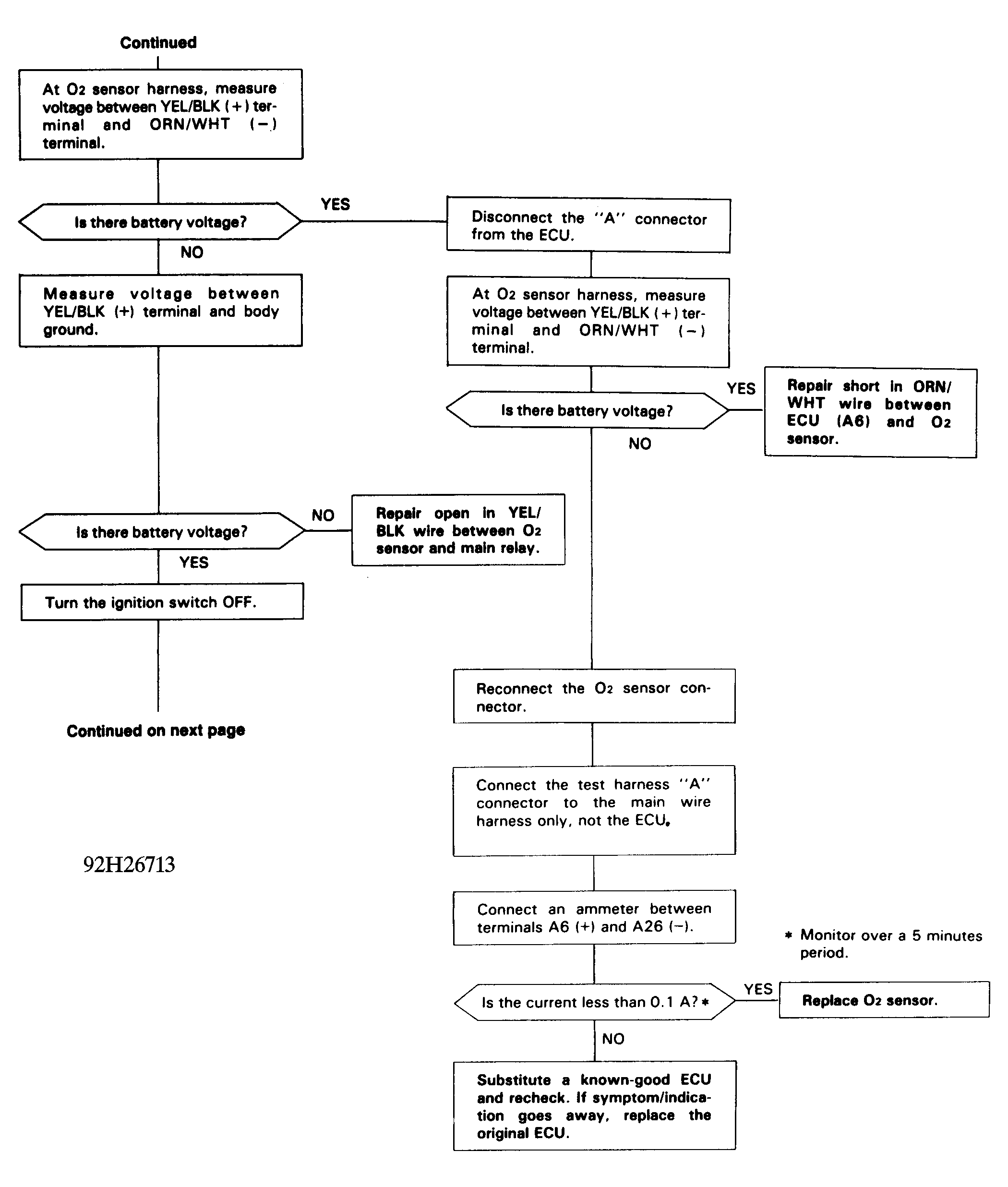

Fig 2: Code 41 Chart (2 OF 3) - Oxygen Sensor Heater CKT.
G92H26713

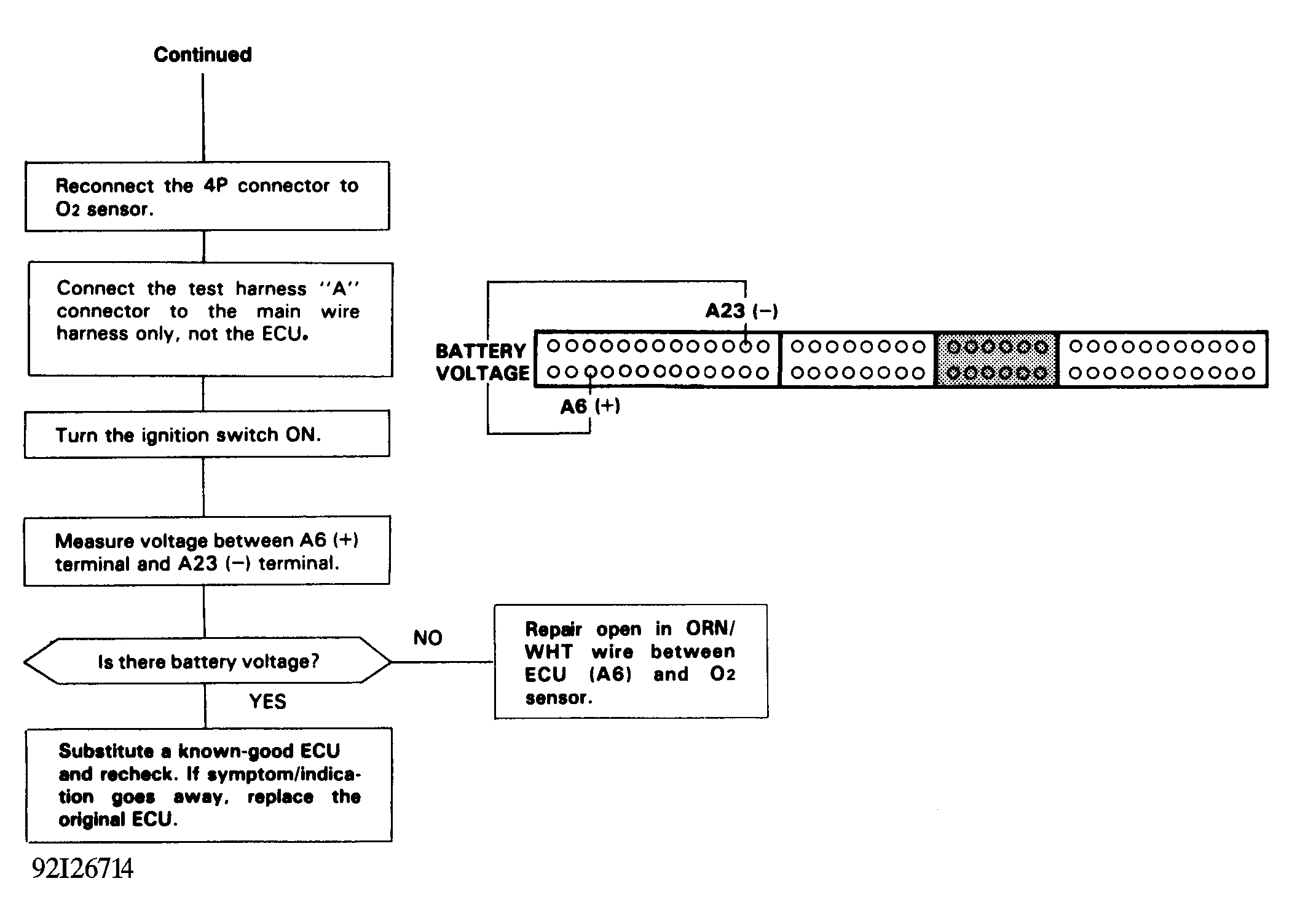

Fig 3: Code 41 Chart (3 OF 3) - Oxygen Sensor Heater CKT.
G92I26714
