Code 12 - Exhaust Gas RECIRCULATION (EGR) System

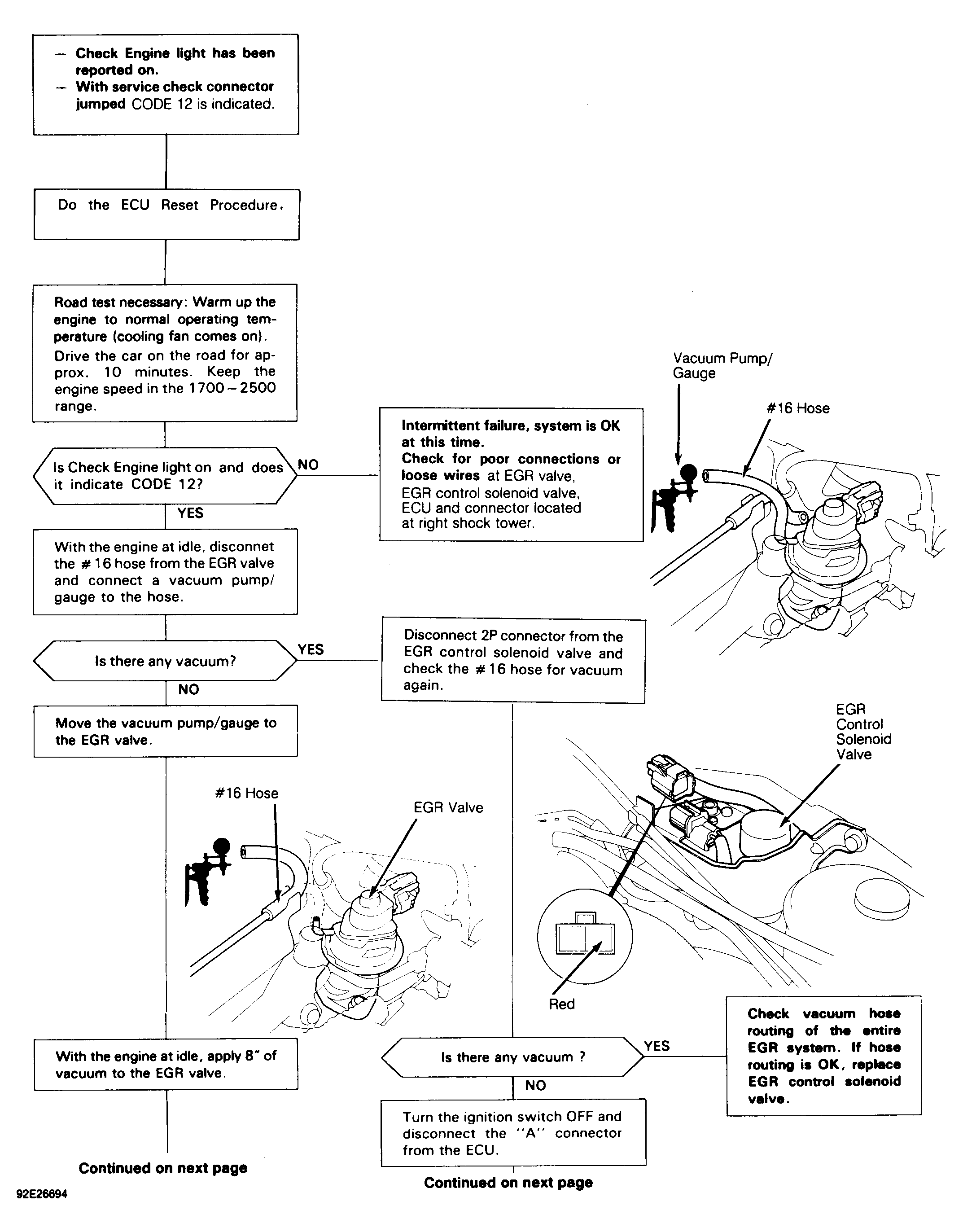

Fig 1: Code 12 Chart (1 Of 4) - Exhaust Gas Recirculation (EGR) System
G92E26694

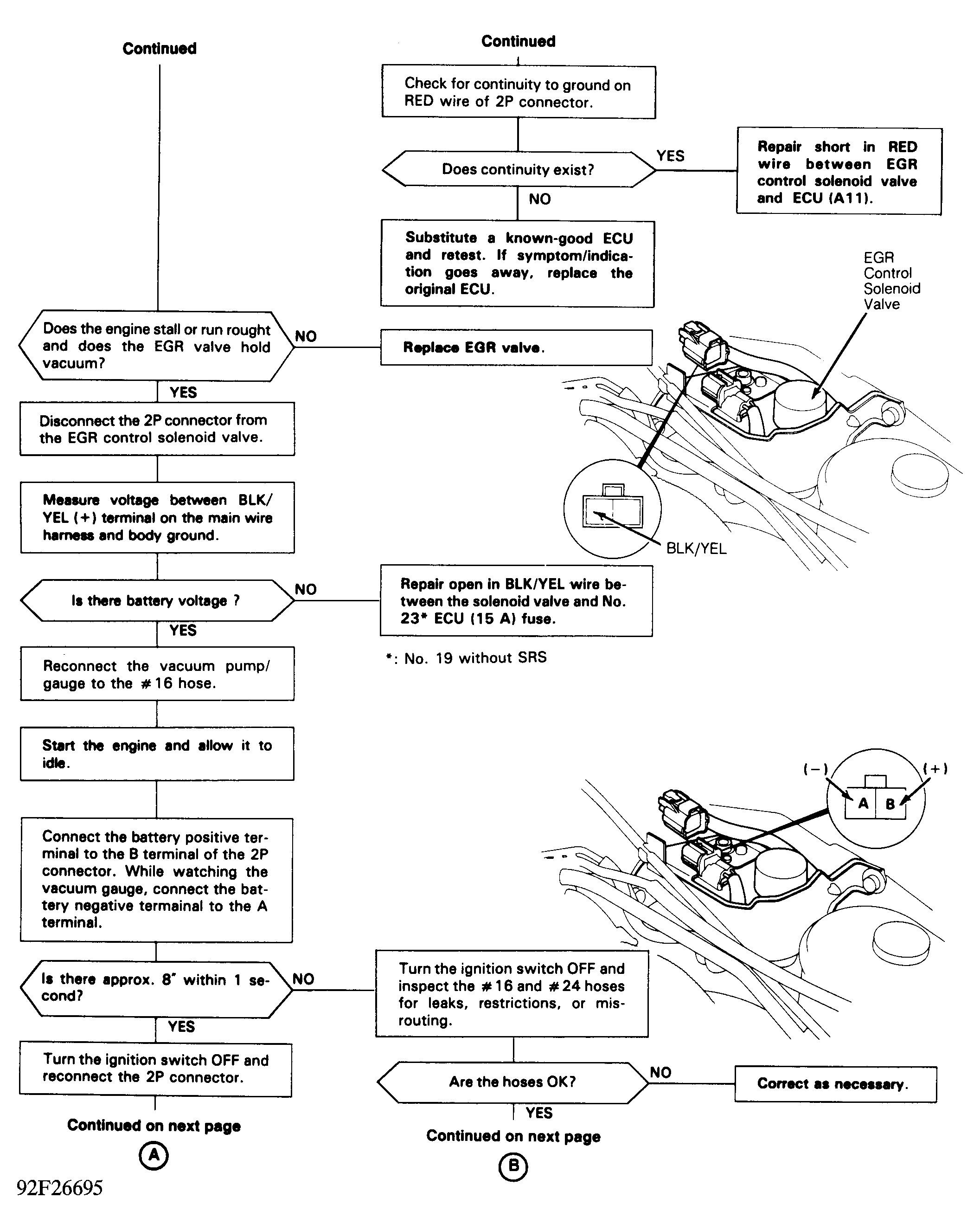

Fig 2: Code 12 Chart (2 Of 4) - Exhaust Gas Recirculation (EGR) System
G92F26695

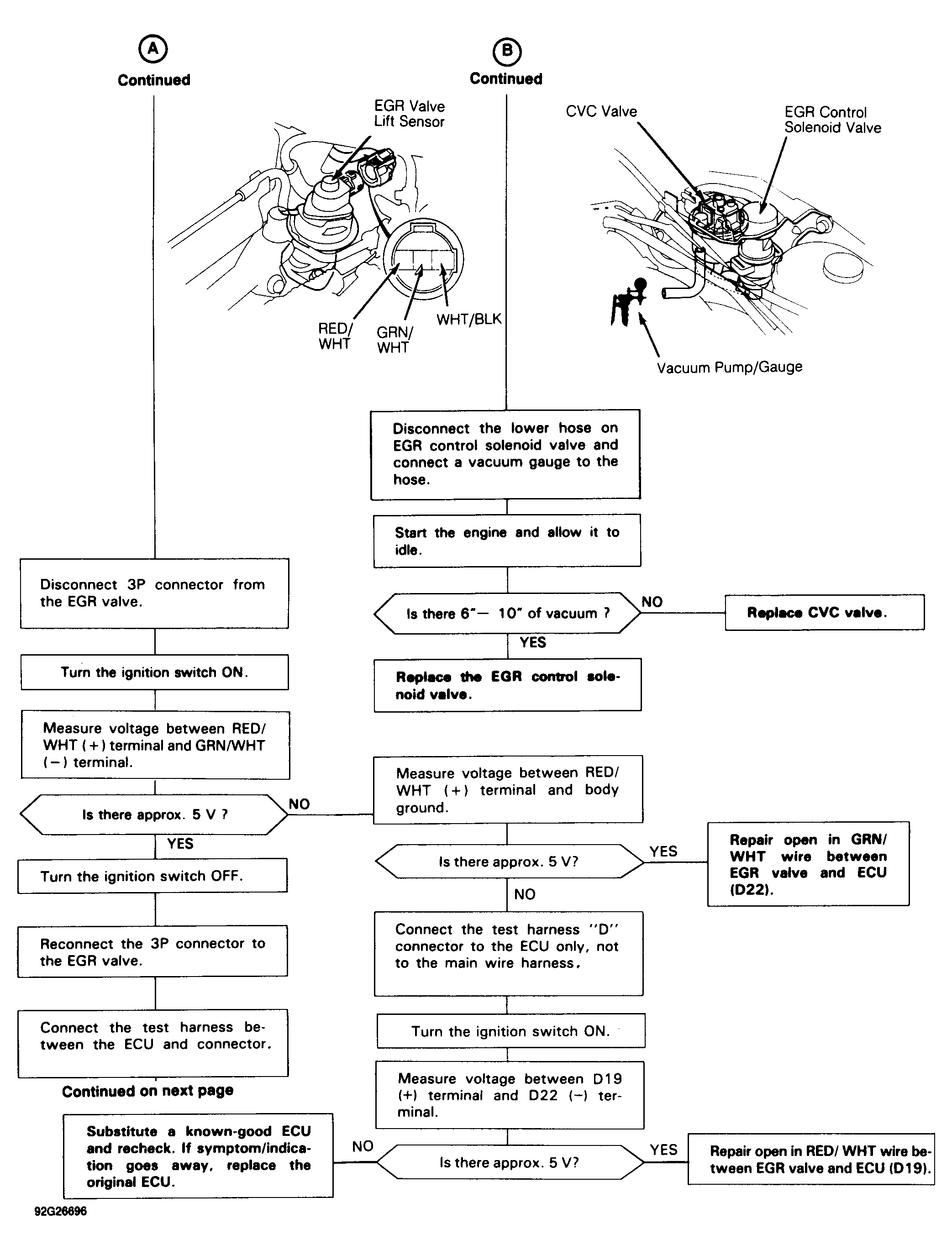

Fig 3: Code 12 Chart (3 Of 4) - Exhaust Gas Recirculation (EGR) System
G92G26696

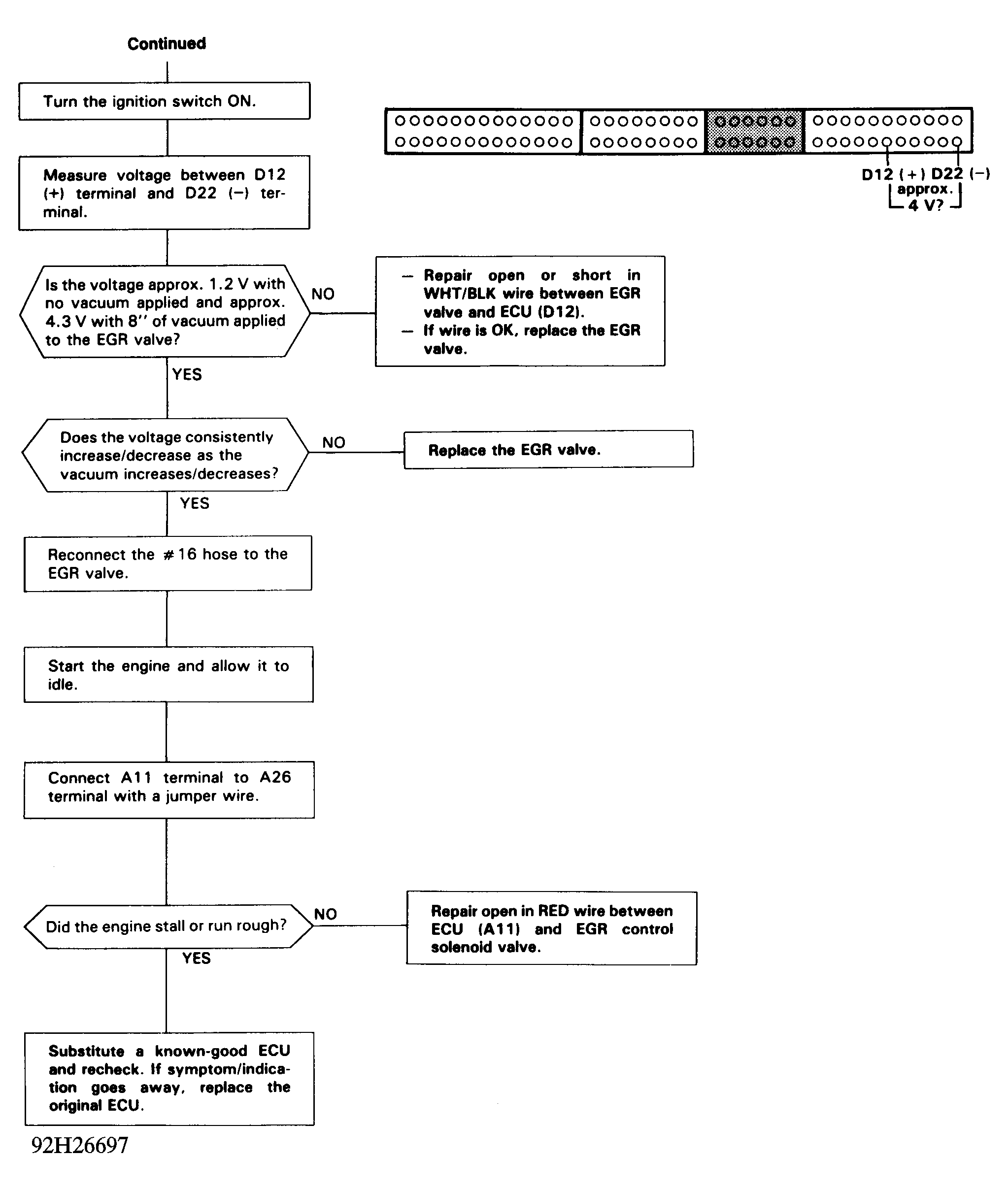

Fig 4: Code 12 Chart (4 Of 4) - Exhaust Gas Recirculation (EGR) System
G92H26697
