Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind right quarter trim panel. | |
| A/T Control Unit | Behind right kick panel. | |
| Cruise Control Unit | Behind left side of dash, above accelerator pedal bracket. | |

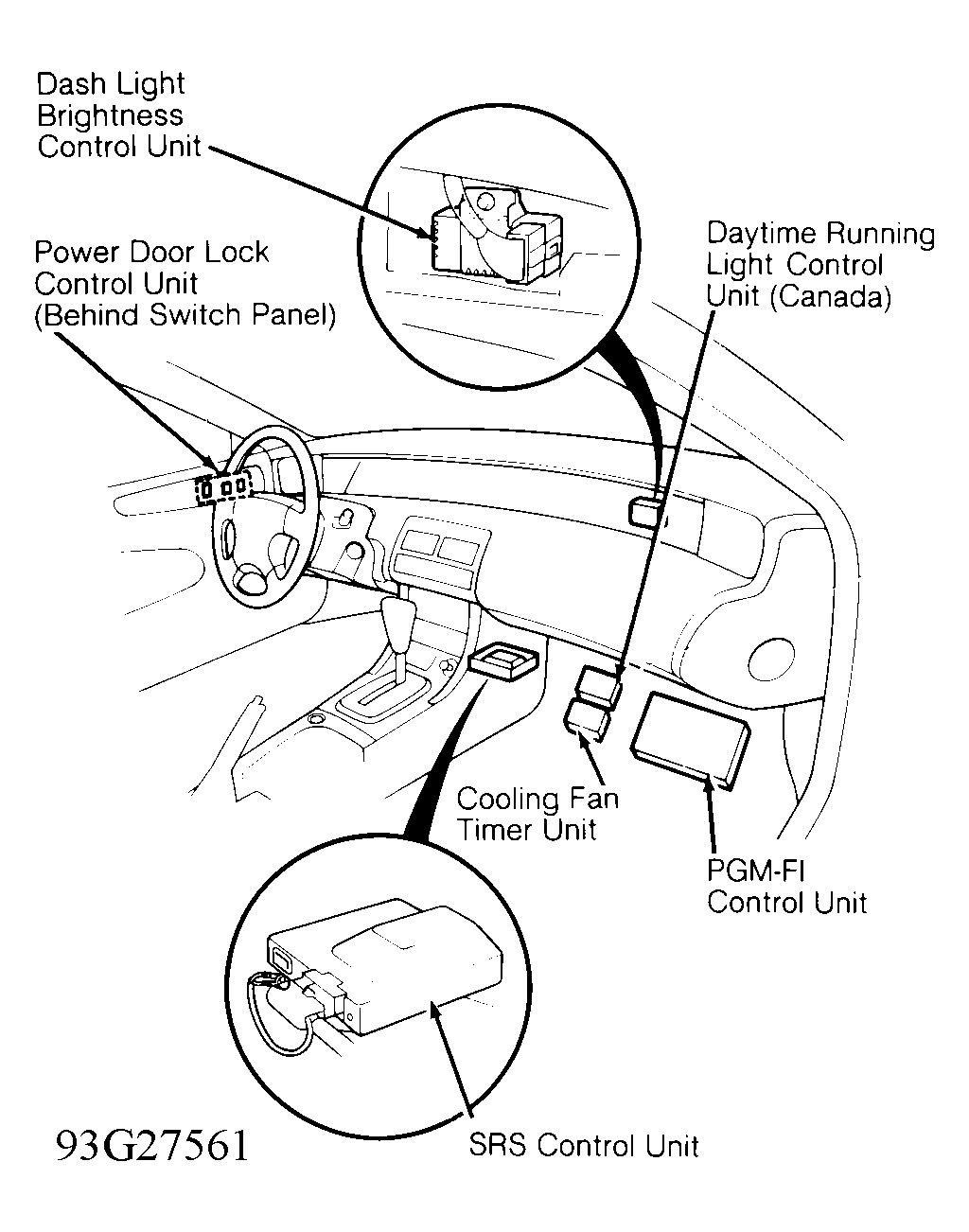

| Dash Light Brightness Control Unit | Behind right side of dash. See Figure . | |
| Daytime Running Light (DRL) Control Unit (Canada) | On passenger-side footwell, under carpet. See Figure . | |
| Electric Load Detector (ELD) Unit | ||
| 2.3L DOHC | On bottom of engine compartment fuse/relay block. See Figure . | |
| 2.2L SOHC | On bottom of engine compartment fuse/relay block. See Figure . | |
| Heated Seats (Canada) | ||
| Seat Heater Relay | Under each front seat. | |
| Seat Heater Main Relay | On left side of firewall. | |
| Integrated Control Unit | Behind passenger compartment fuse/relay block. See Figure . | |
| Interlock Control Unit | Behind left side of dash, above kick panel. | |
| PGM-FI Control Unit | On passenger-side footwell, under carpet. See Figure . | |
| Power Door Lock Control Unit | In driver's door, behind door panel. See Figure . | |
| SRS (Air Bag) Control Unit | Under evaporator housing, mounted on floor hump. See Figure . | |
| 4WS Control Unit | Behind left rear seat. | |
