Code 6 - Coolant Temperature (TW) Sensor Circuit
Code 6 - Coolant Temperature (TW) Sensor Circuit

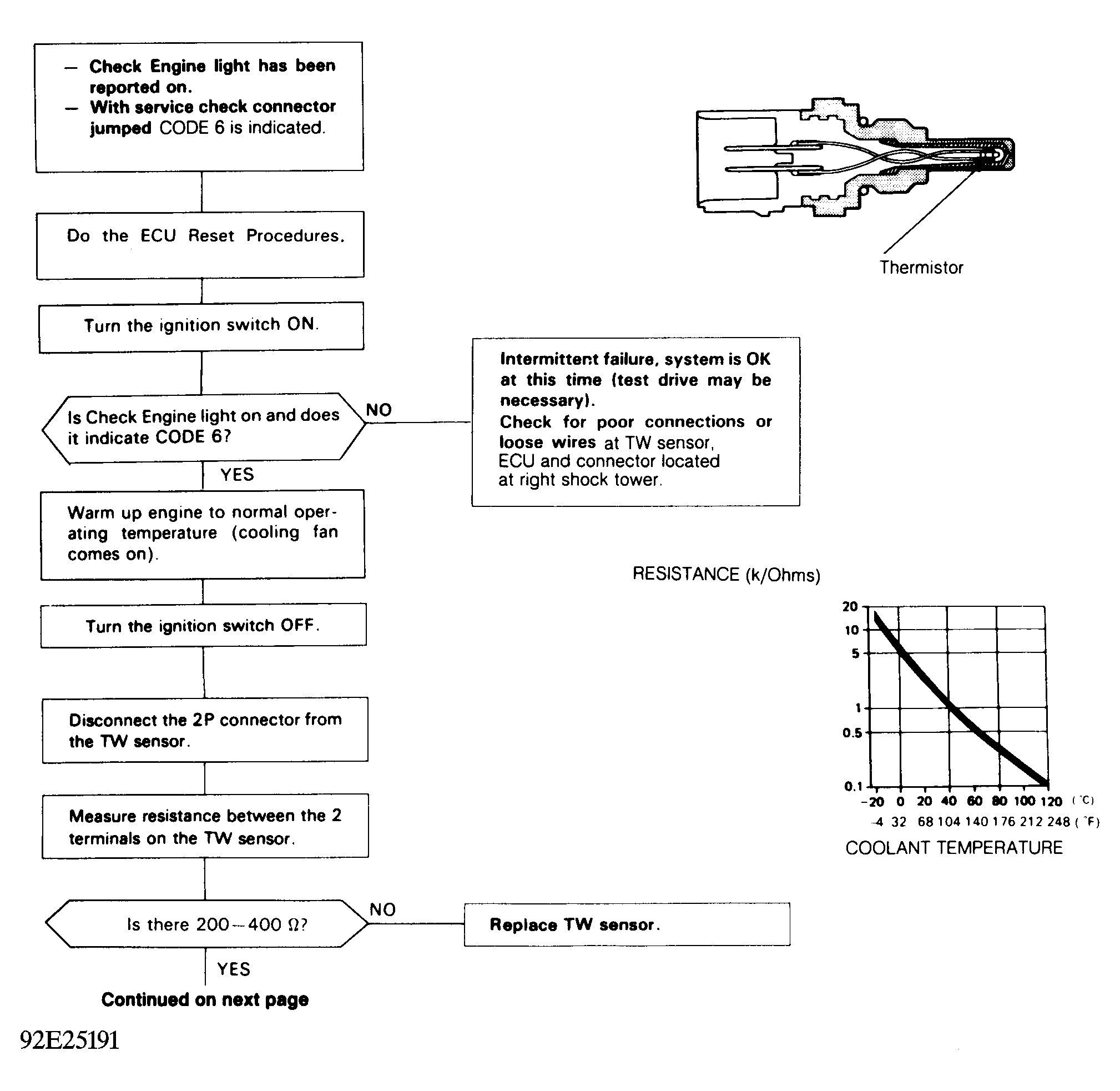

Fig 1: Code 6 Chart (1 Of 2) - Coolant Temp. (TW) Sensor CKT.

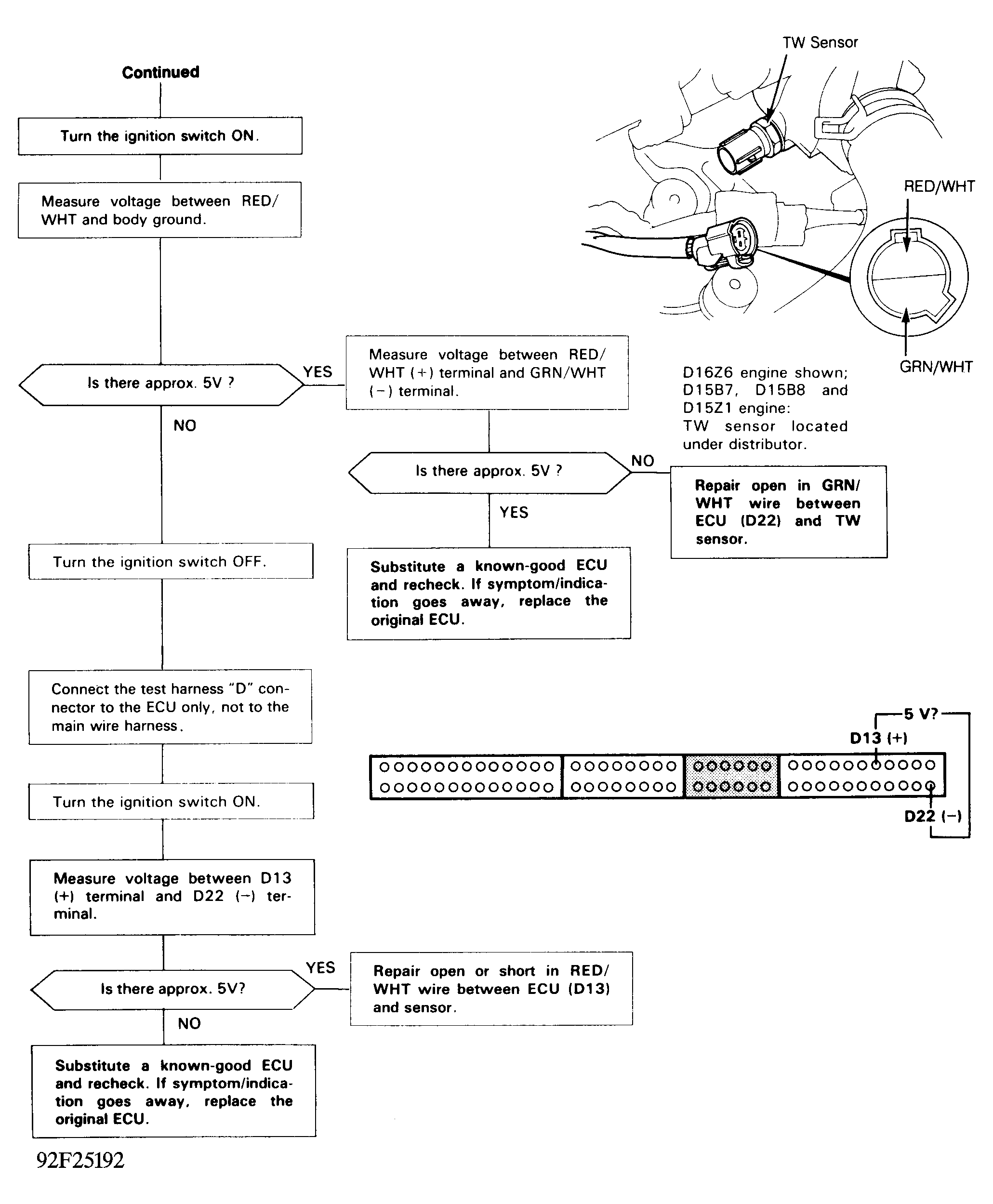

Fig 2: Code 6 Chart (2 Of 2) - Coolant Temp. (TW) Sensor CKT.
