Code 12 - Exhaust Gas RECIRCULATION (EGR) System

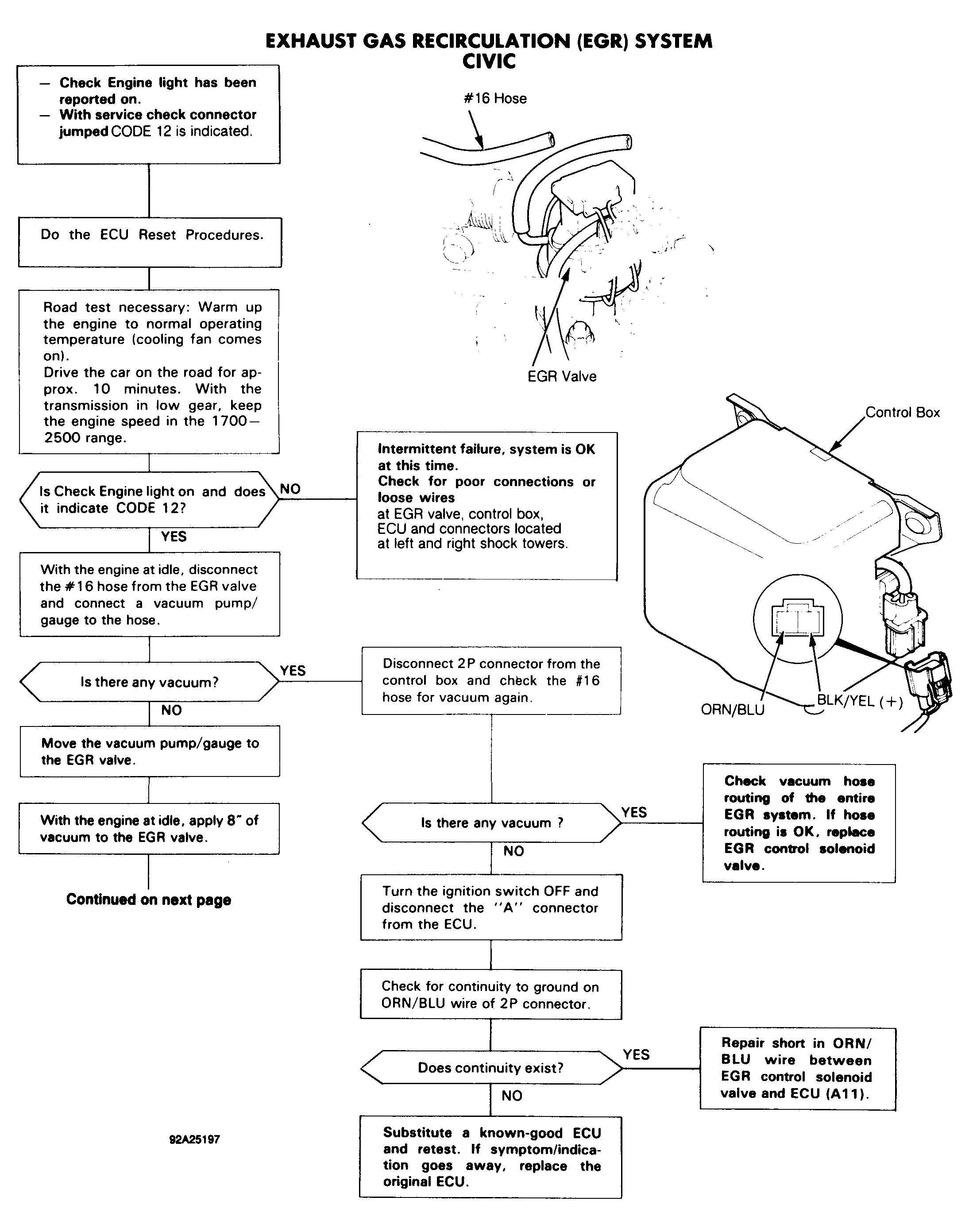

Fig 1: Code 12 Chart (1 OF 4) - EGR System
G92A25197

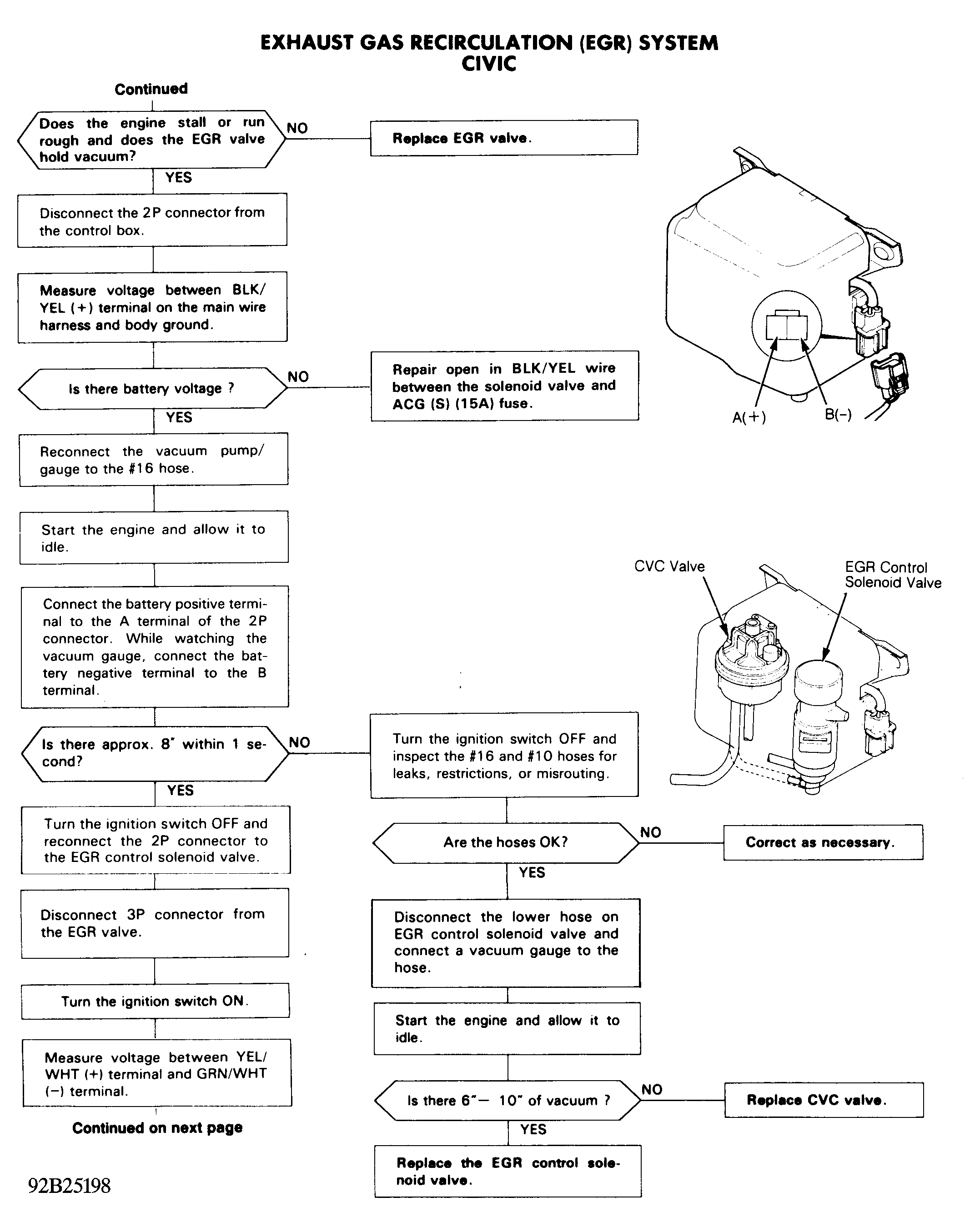

Fig 2: Code 12 Chart (2 OF 4) - EGR System
G92B25198

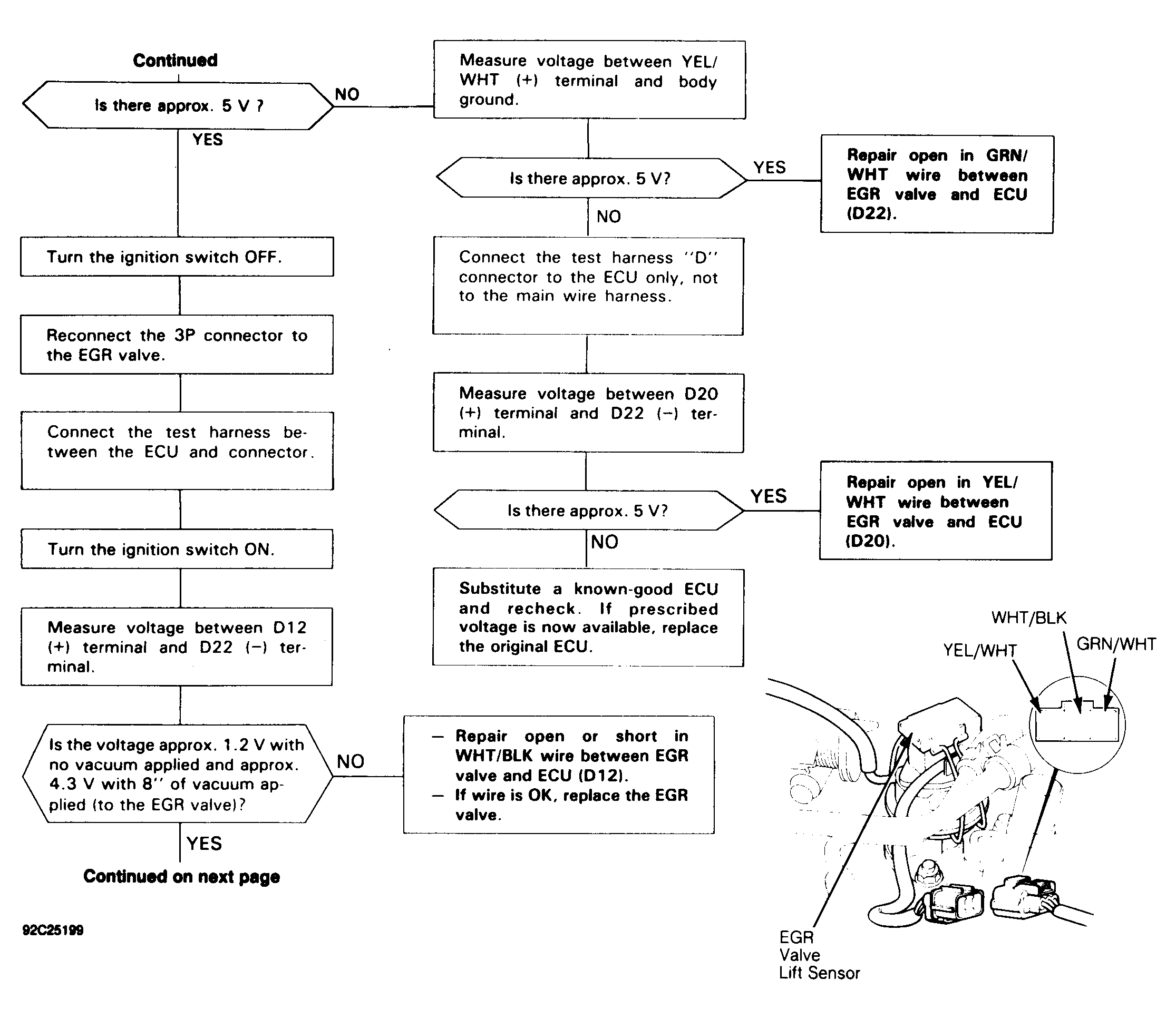

Fig 3: Code 12 Chart (3 OF 4) - EGR System
G92C25199

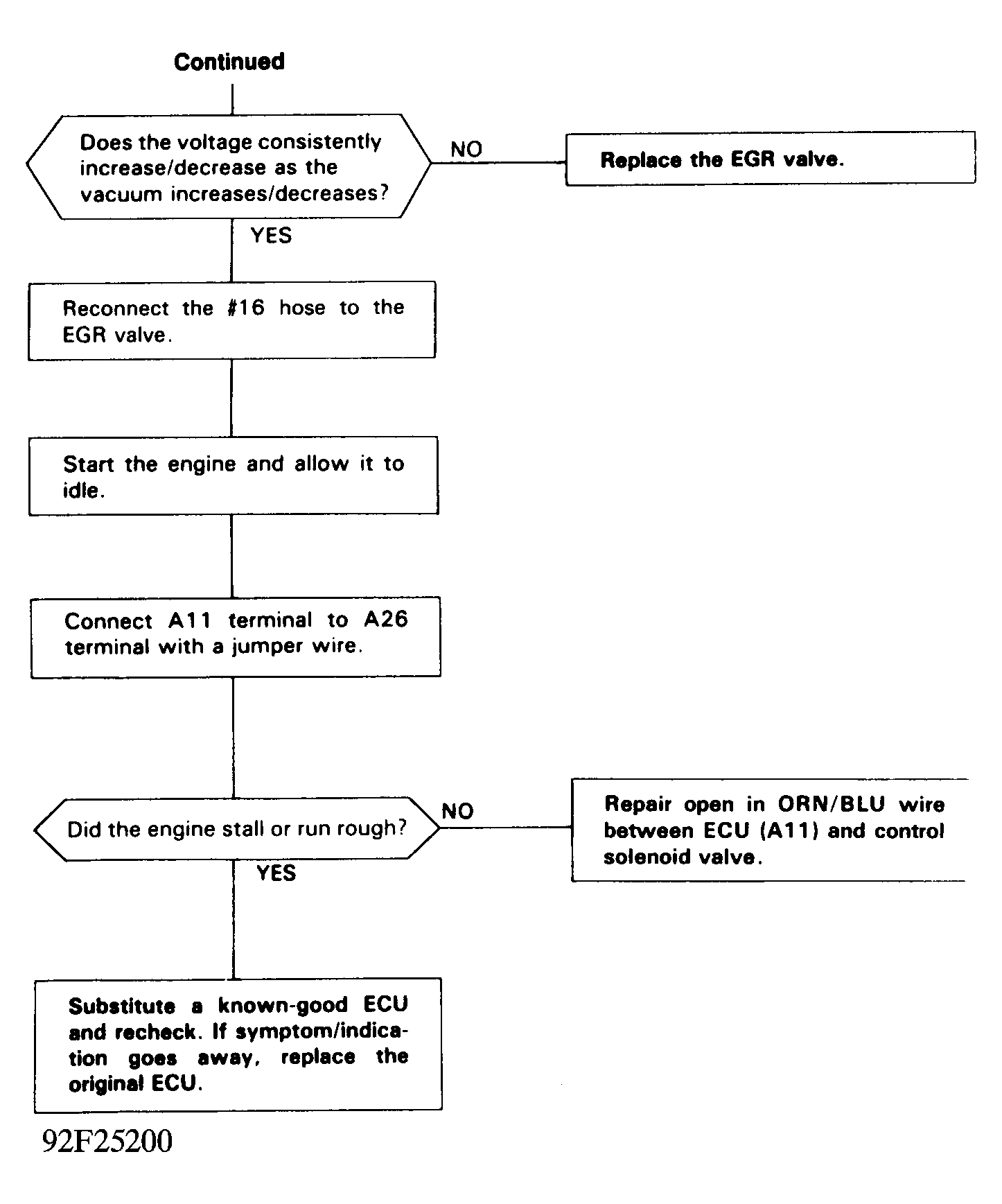

Fig 4: Code 12 Chart (4 OF 4) - EGR System
G92F25200
