Code 5 - Map Sensor (Mechanical) (D15B7)

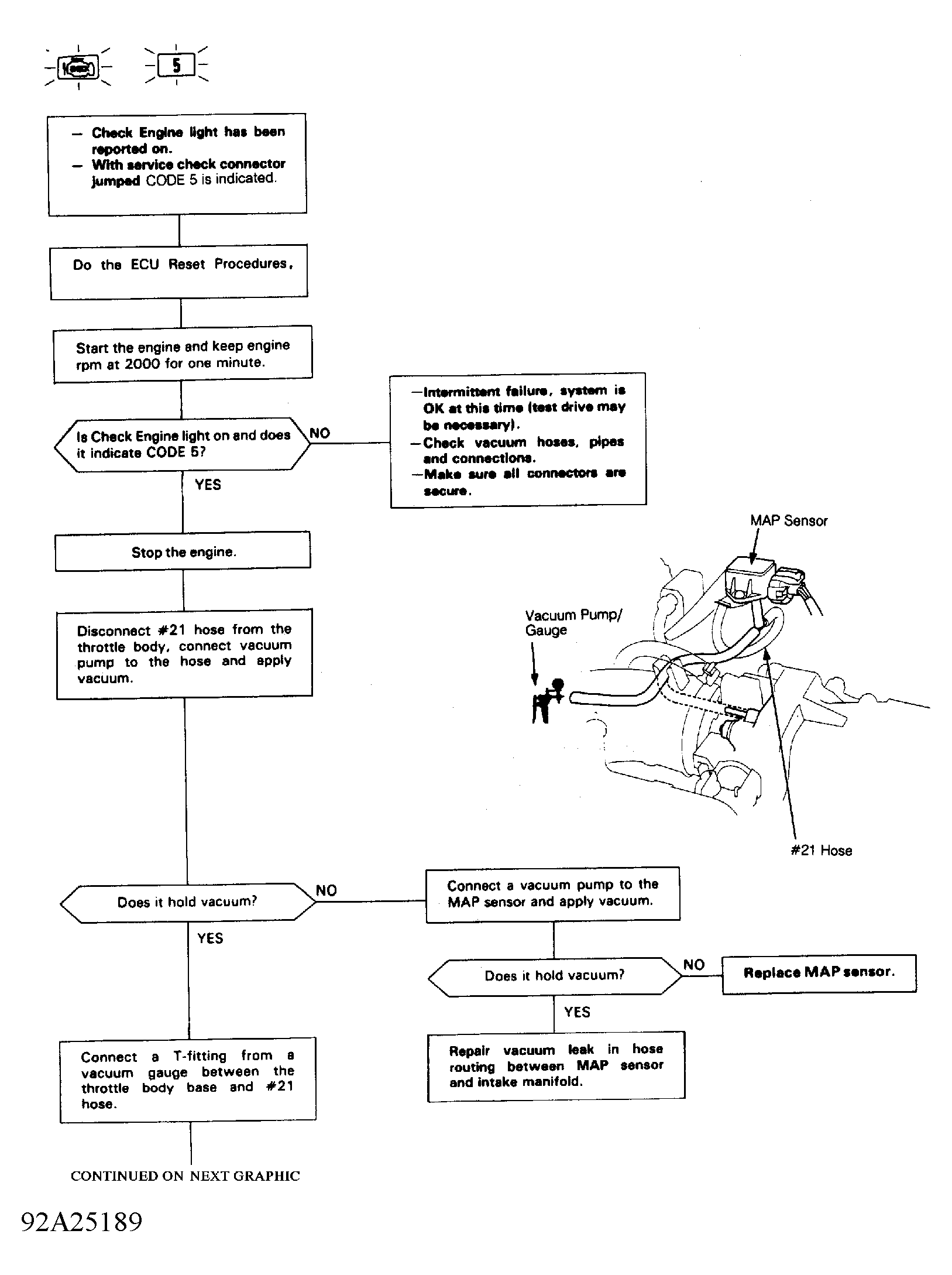

Fig 1: Code 5 Chart (1 OF 2) - MAP Sensor (Mechanical) D15B7

G92A25189

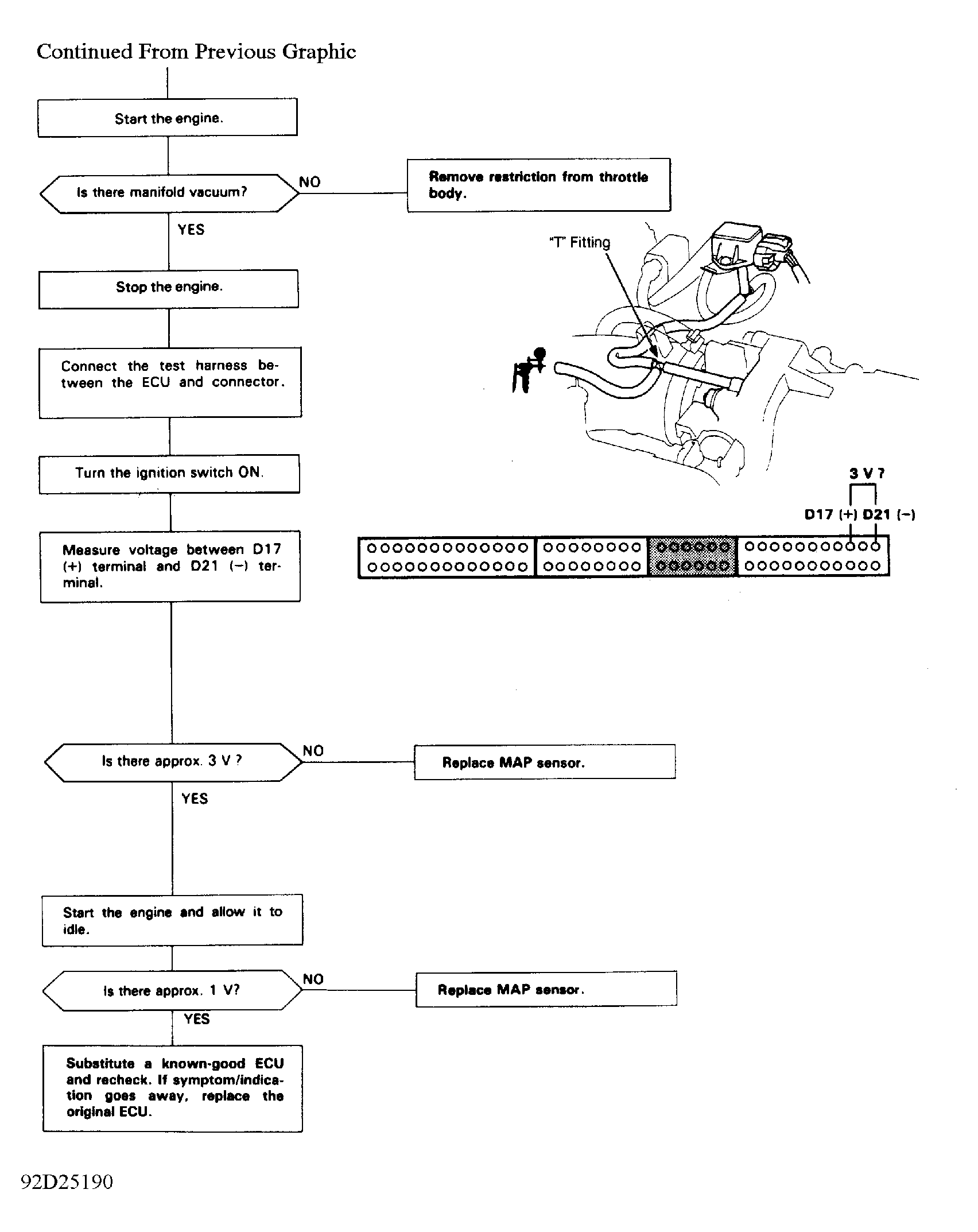

Fig 2: Code 5 Chart (2 OF 2) - MAP Sensor (Mechanical) D15B7

G92D25190
