Code 41 - LAF Sensor Heater Circuit (D15Z1)

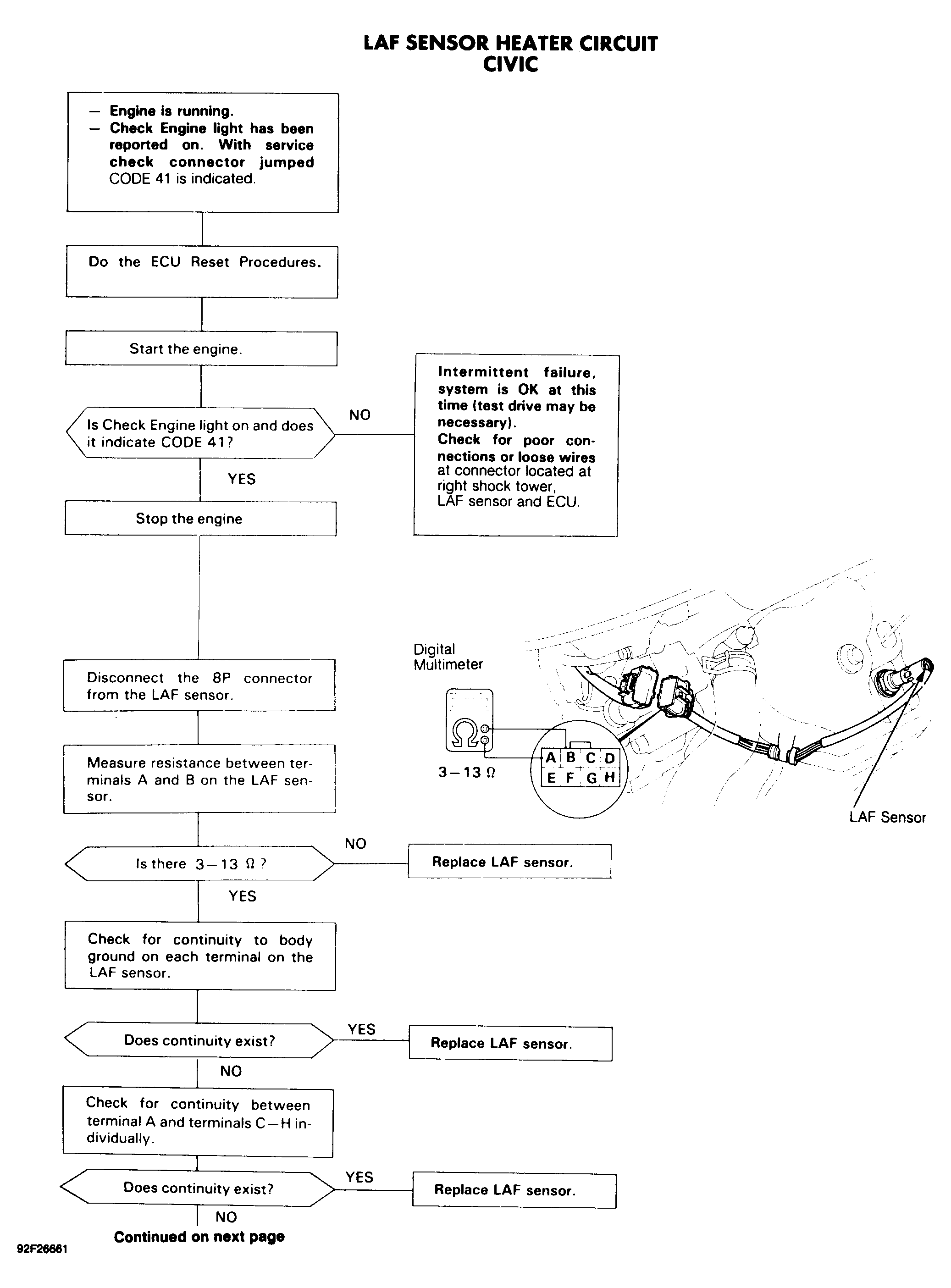

Fig 1: Code 41 Chart (1 Of 2) - LAF Sensor Heater CKT. (D15Z1)

G92F26661

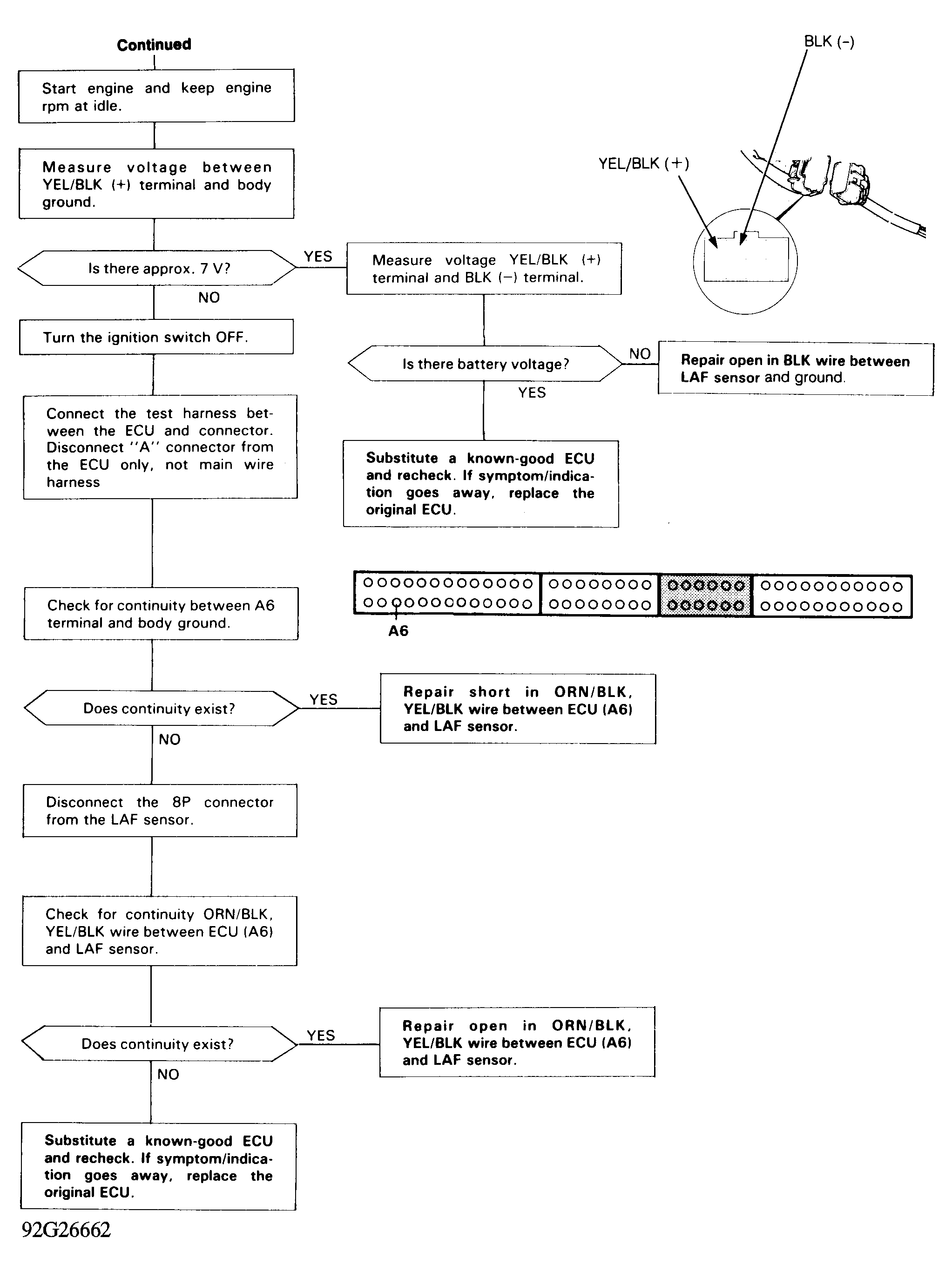

Fig 2: Code 41 Chart (2 Of 2) - LAF Sensor Heater CKT. (D15Z1)

G92G26662
