Code 14 - Electric Air Control Valve (EACV) System
Code 14 - Electric Air Control Valve (EACV) System

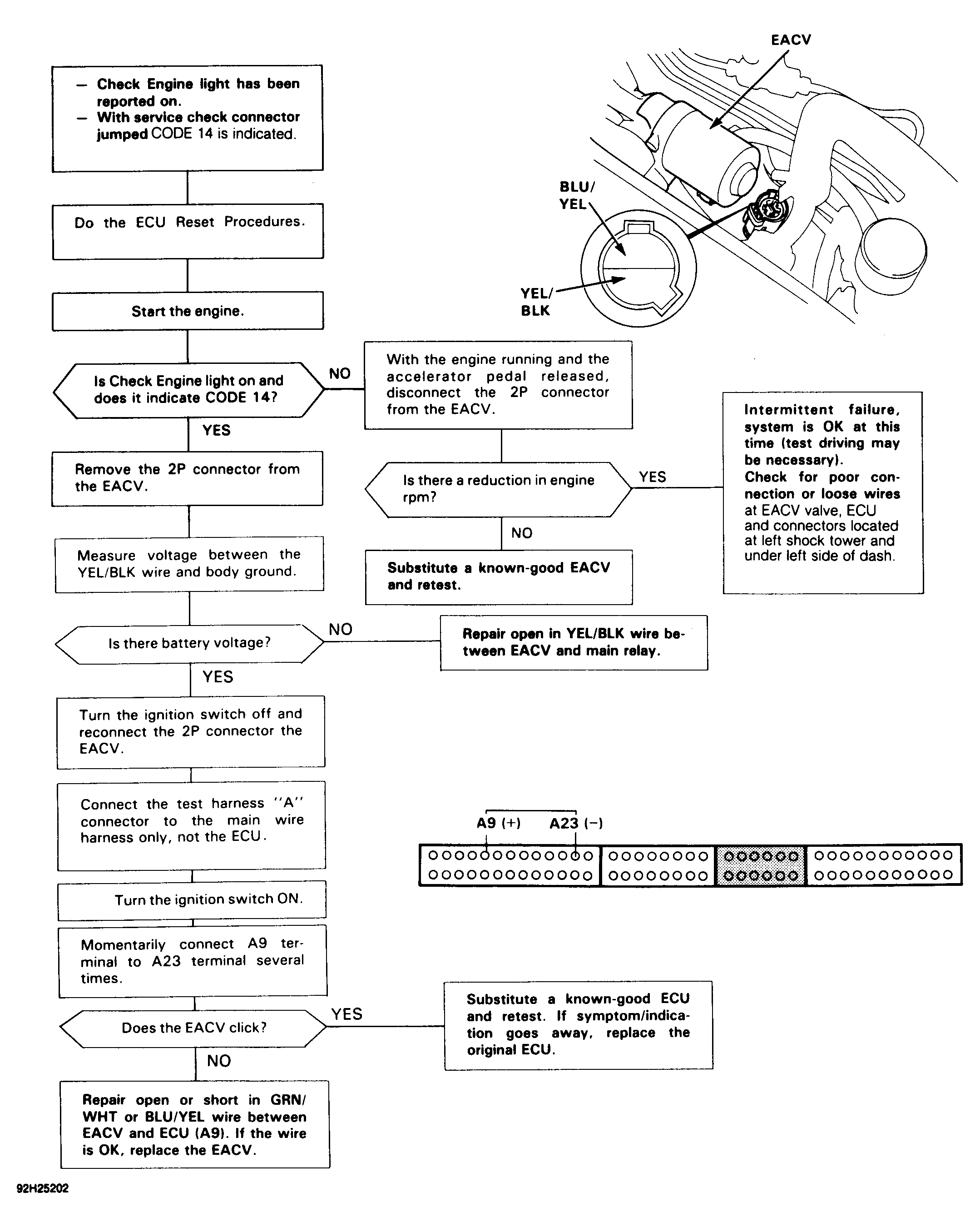

Fig 1: CODE 14 - Electric Air Control Valve (EACV) System
