Code 1 - Oxygen Sensor Circuit (D15B8)

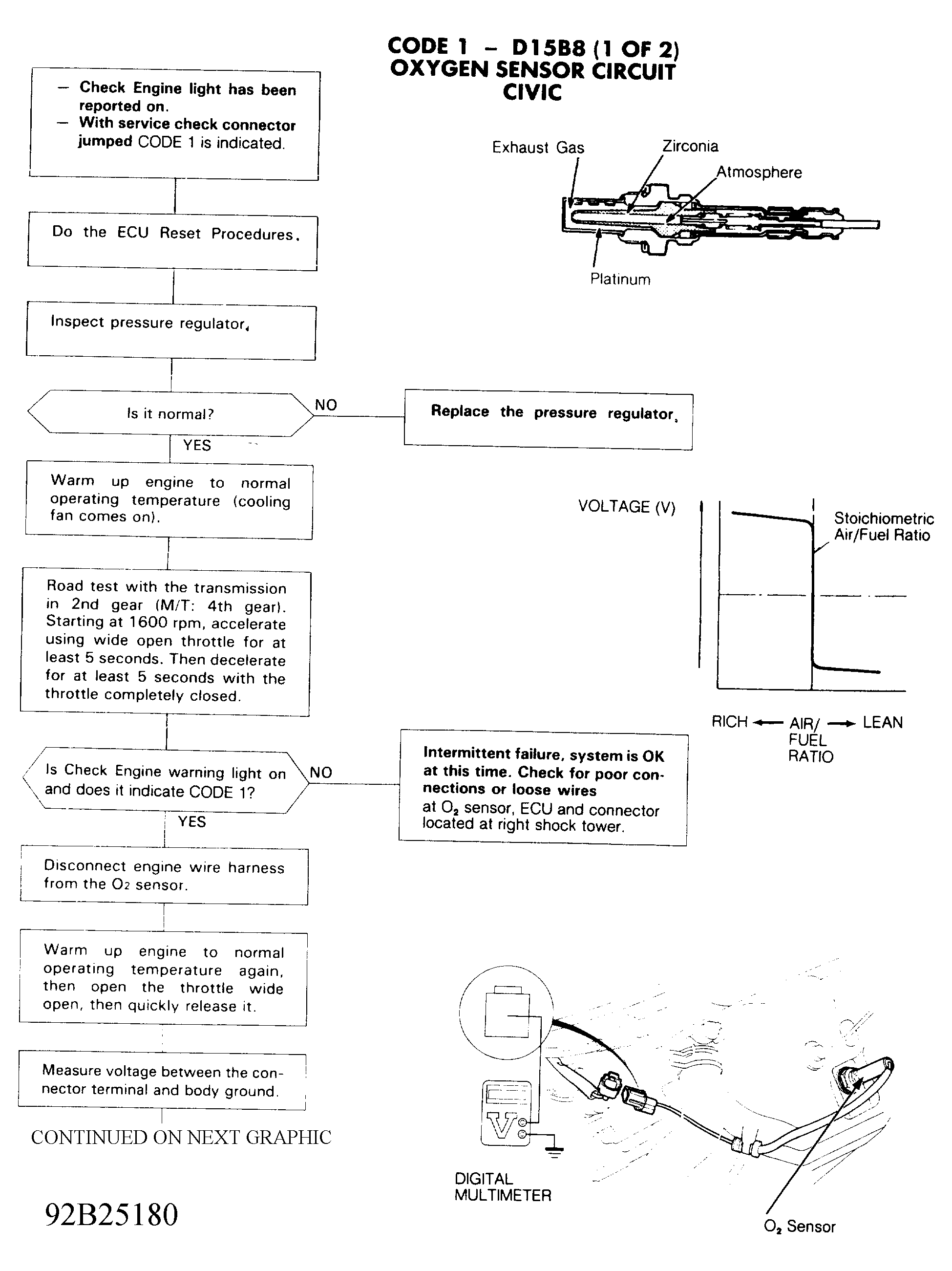

Fig 1: Code 1 Chart (1 Of 2) - Oxygen Sensor CKT. (D15B8)

G92B25180

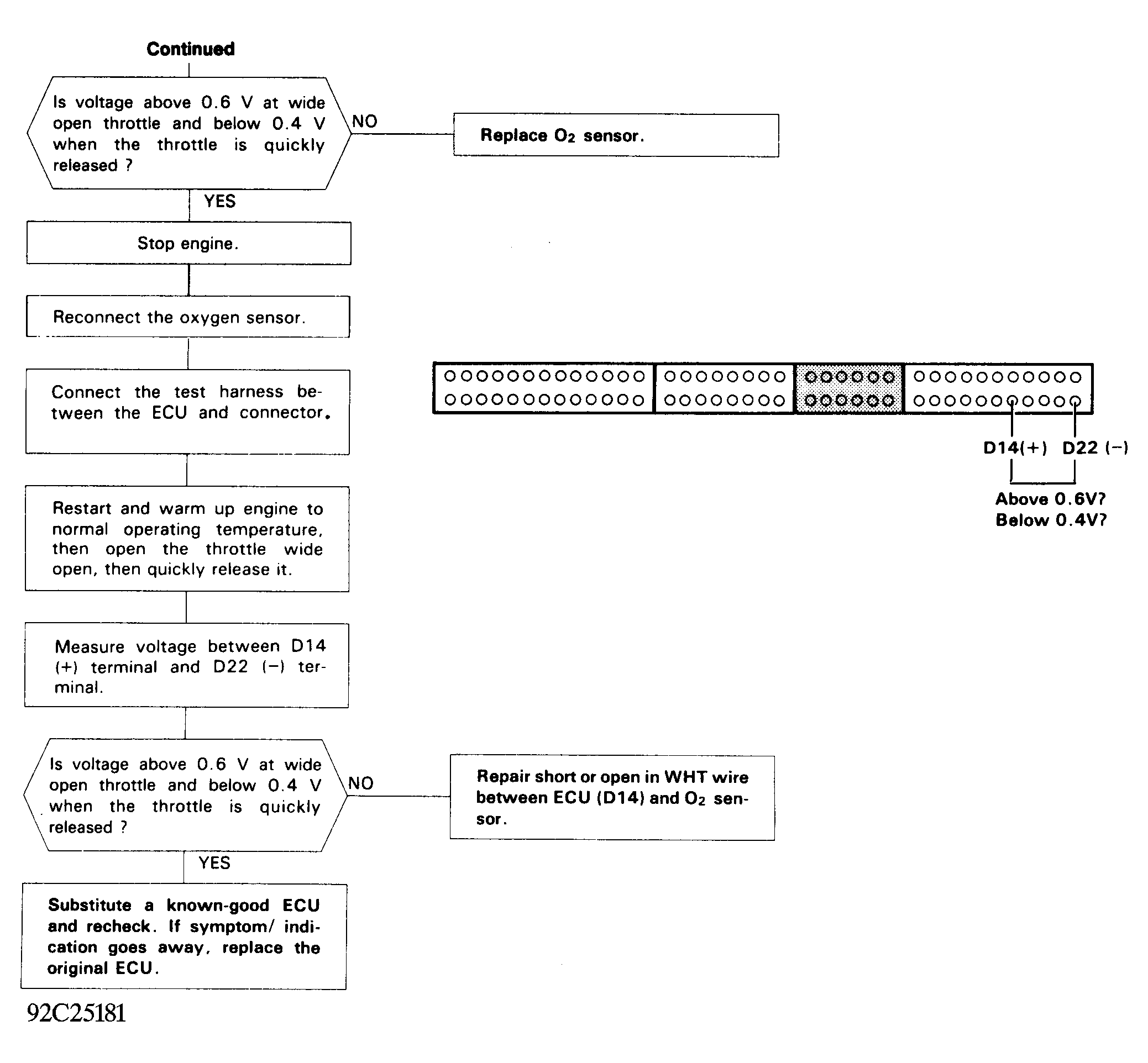

Fig 2: Code 1 Chart (2 Of 2) - Oxygen Sensor CKT. (D15B8)

G92C25181
