Intermittent Wiper Relay System (Some Model Versions)

For connector terminal identification, see Figure . For input test, see Fig 1 .

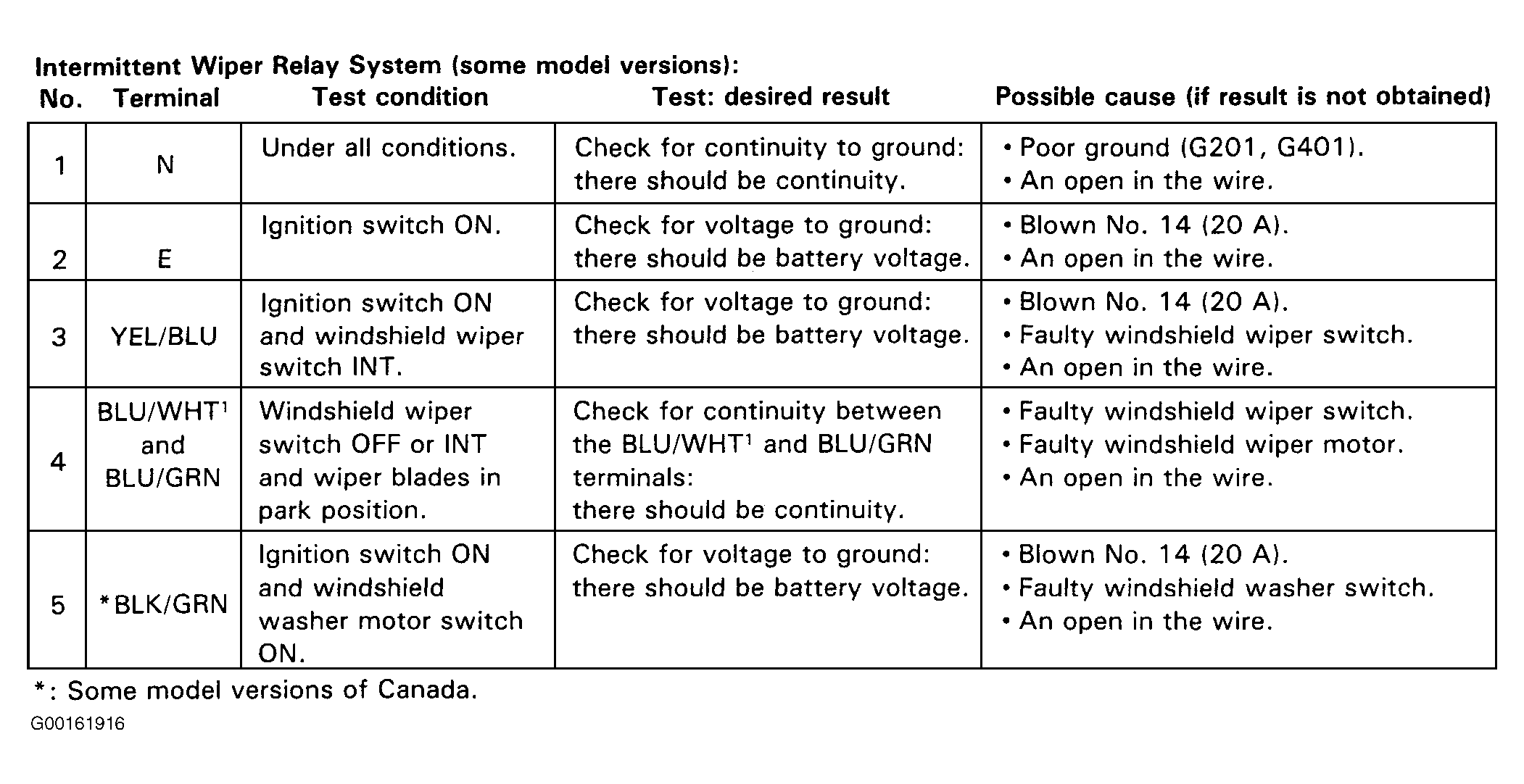

Fig 1: Intermittent Wiper Relay System (Some Model Versions) Input Test
G00161916Courtesy of AMERICAN HONDA MOTOR CO., INC.
