Code 5 - Map Sensor (Mechanical) D15B8, D15Z1 & D16Z6
Code 5 - Map Sensor (Mechanical) D15B8, D15Z1 & D16Z6

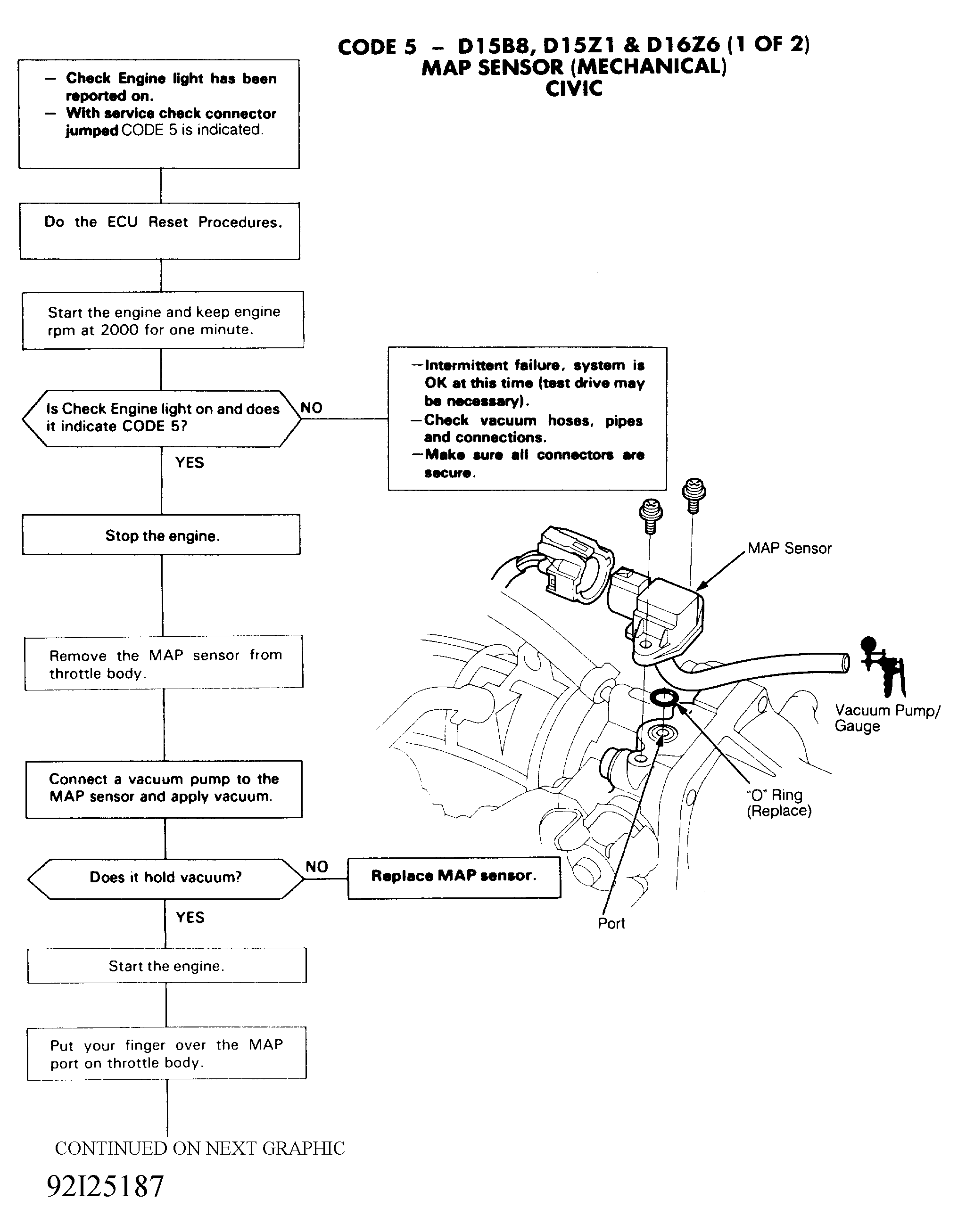

Fig 1: Code 5 Chart (1 Of 2) MAP Sensor Mech. D15B8,D15Z1,D16Z6

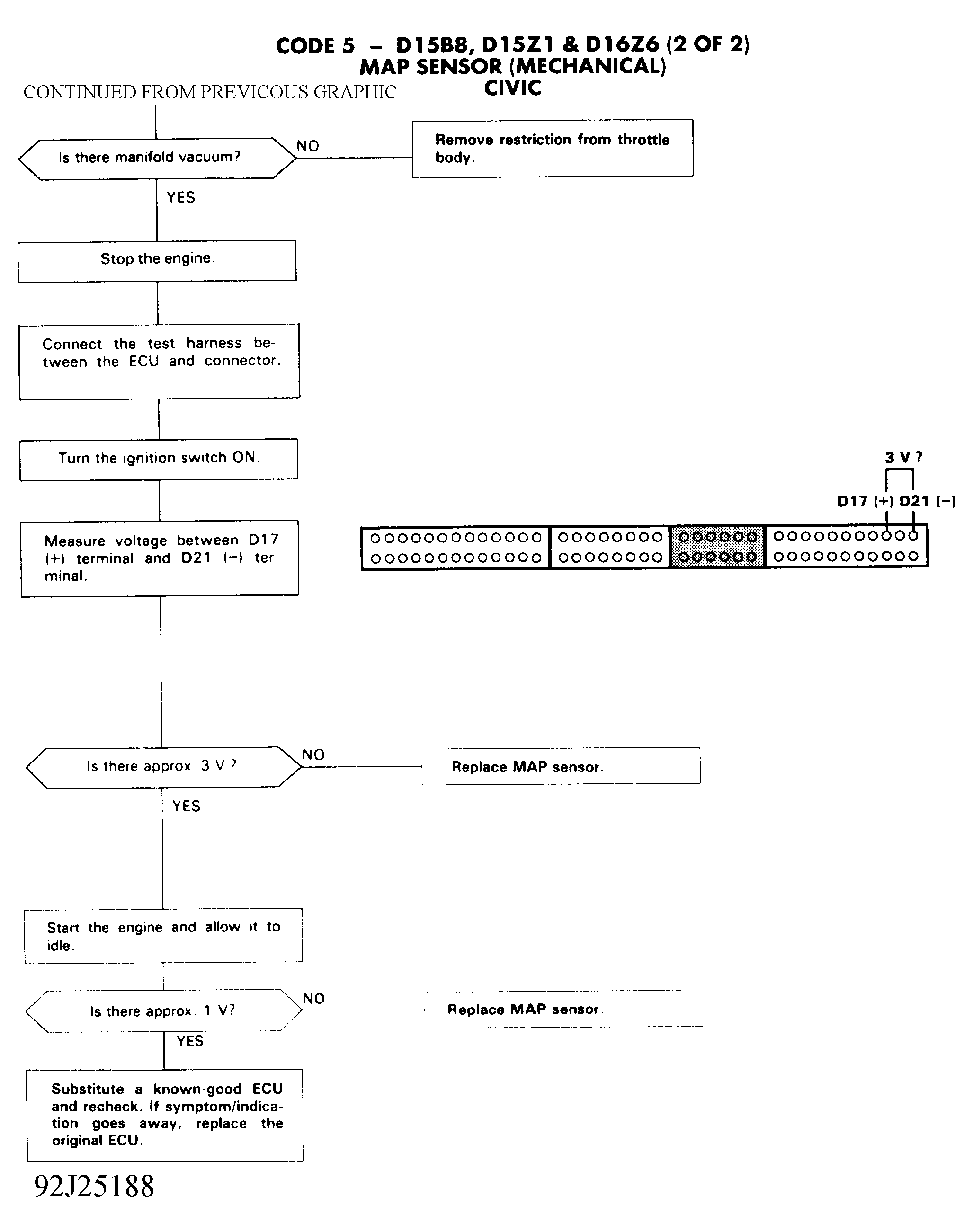

Fig 2: Code 5 Chart (2 Of 2) MAP Sensor Mech. D15B8,D15Z1,D16Z6
