Code 8 - TDC Sensor Circuit
Code 8 - TDC Sensor Circuit

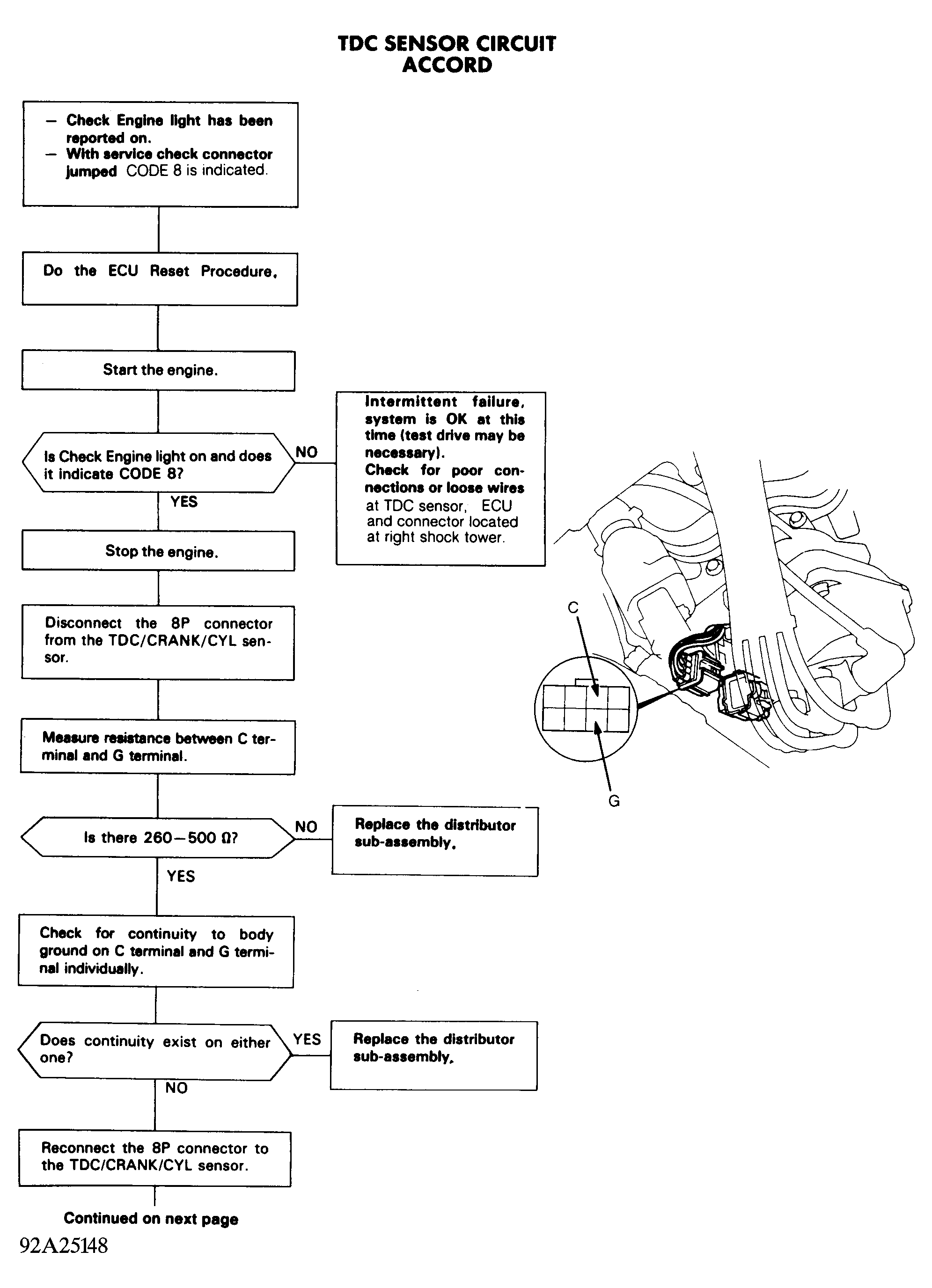

Fig 1: Code 8 Chart (1 OF 2) - TDC Sensor Circuit

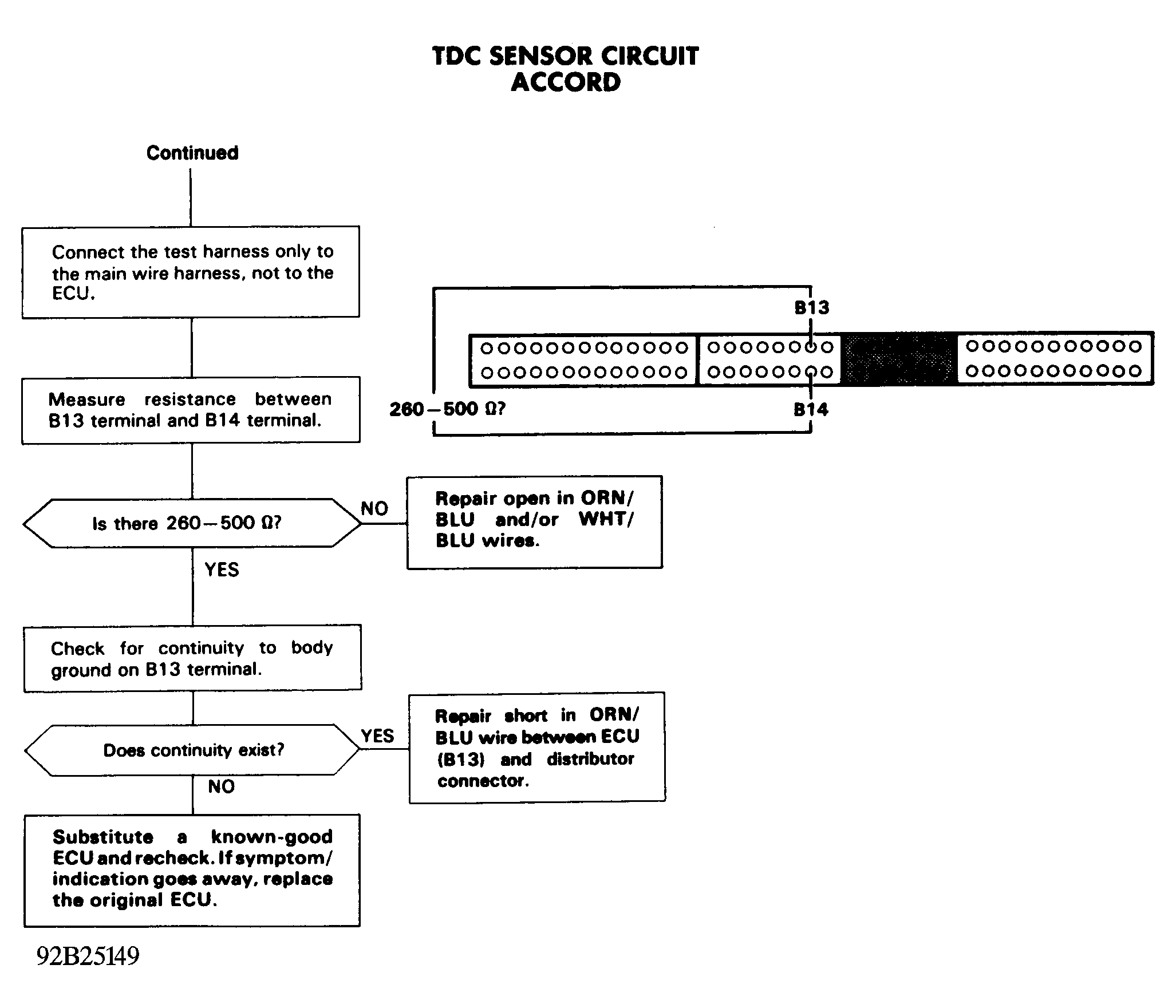

Fig 2: Code 8 Chart (2 OF 2) - TDC Sensor Circuit
