Code 5 - Map Sensor (Mechanical)
Code 5 - Map Sensor (Mechanical)

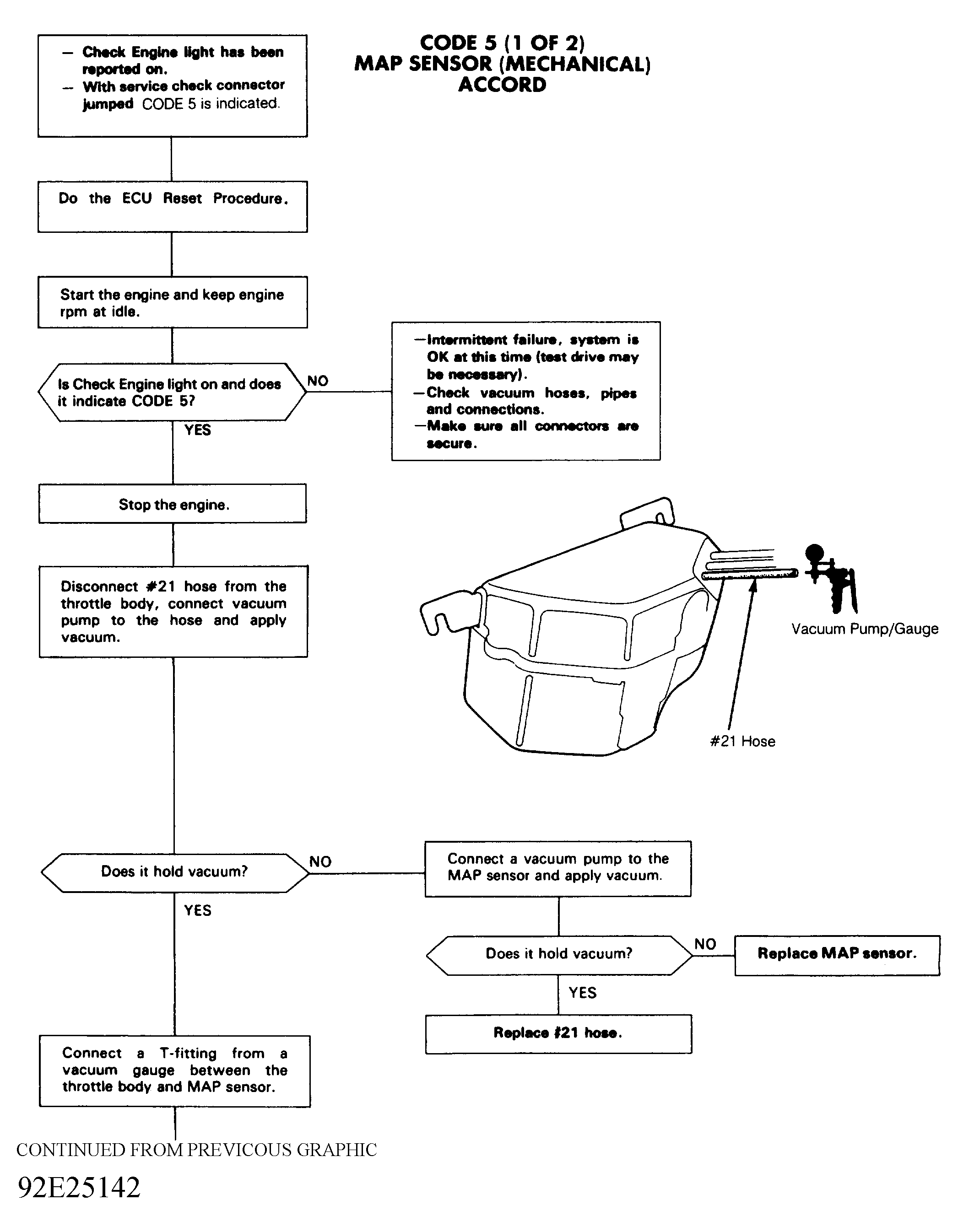

Fig 1: Code 5 Chart (1 OF 2) - MAP Sensor (Mechanical)

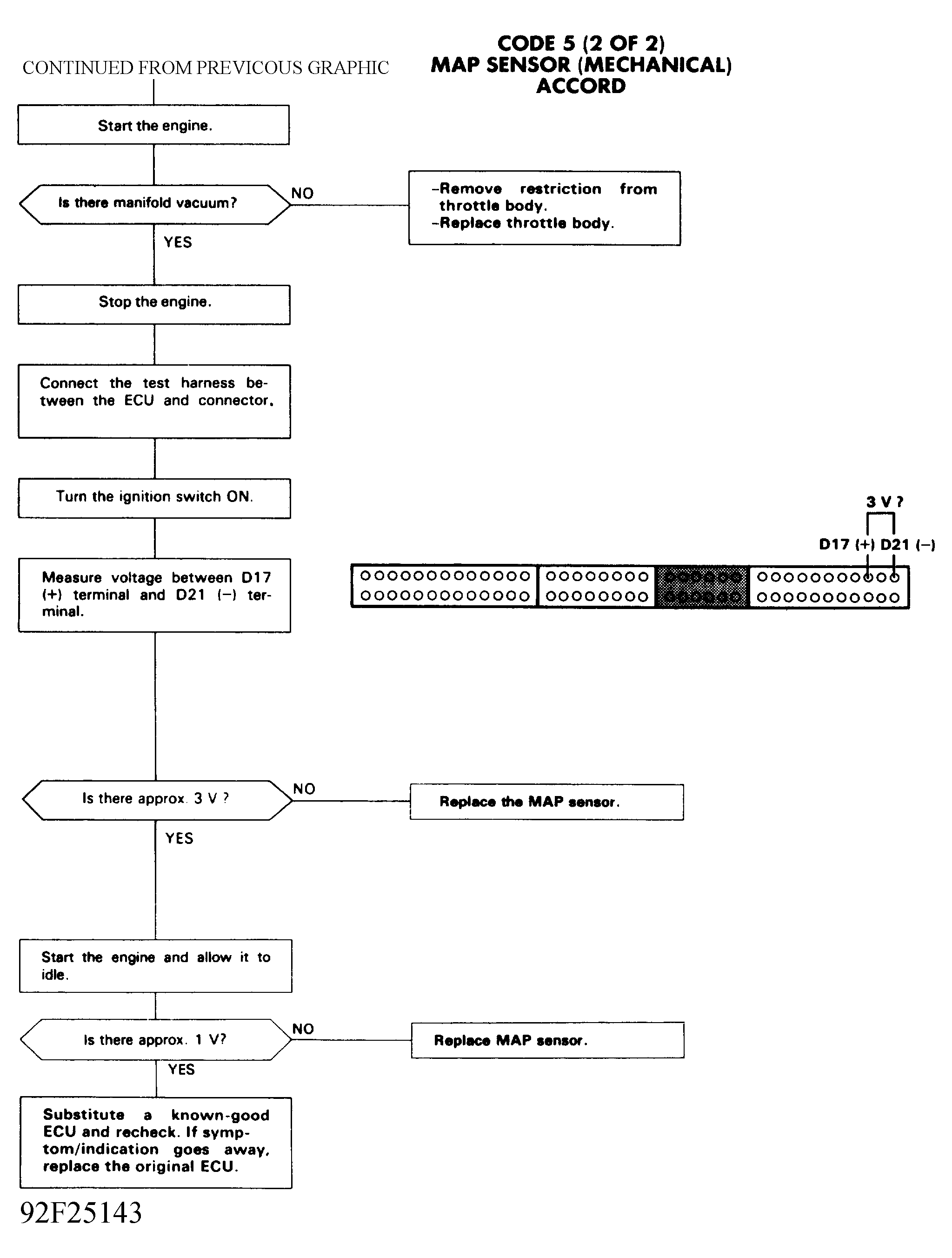

Fig 2: Code 5 Chart (2 OF 2) - MAP Sensor (Mechanical)
