Accord DX, 4D Sedan, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Charts
>>
Code 4 - Crank Sensor Circuit
Code 4 - Crank Sensor Circuit

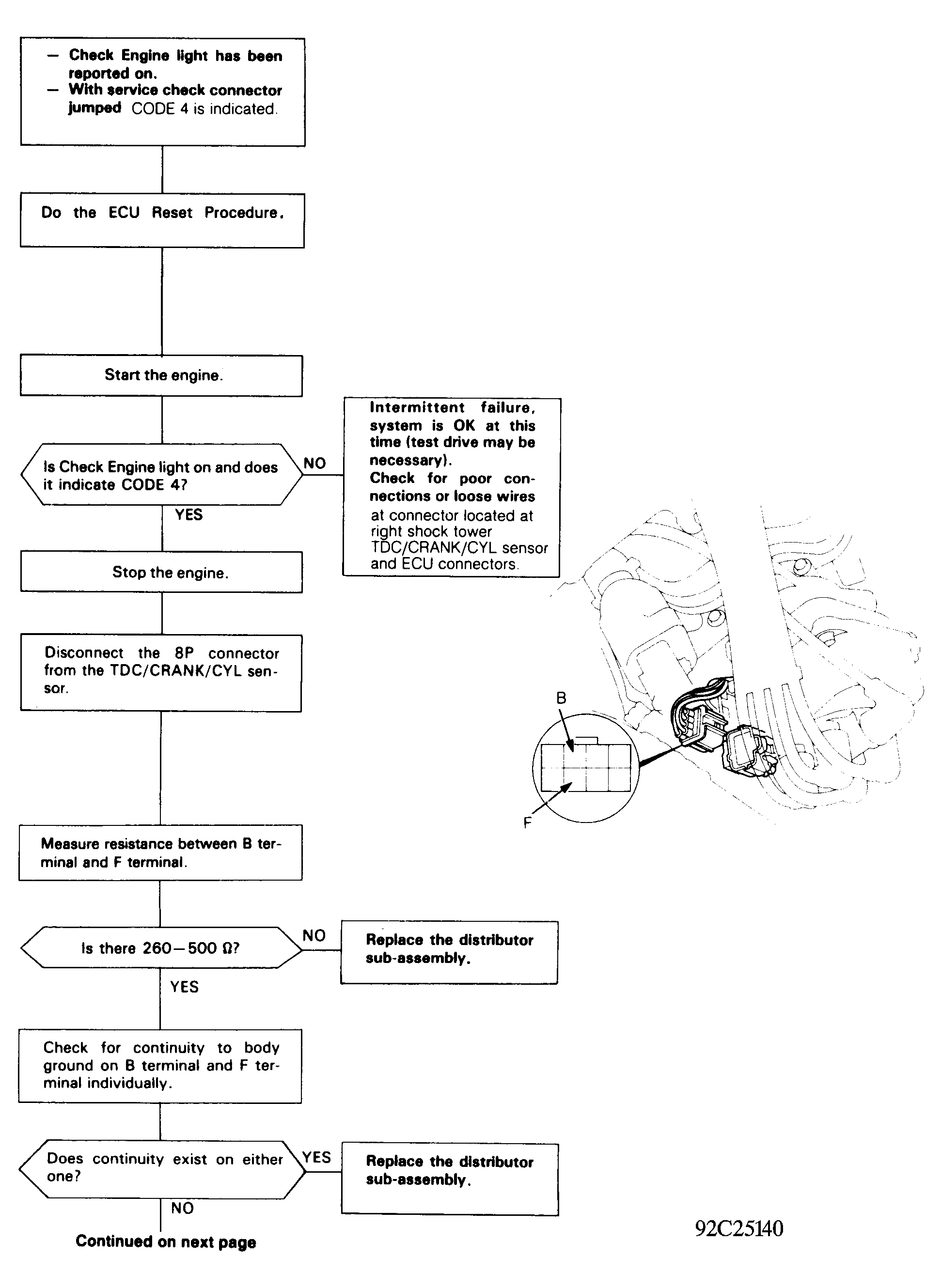

Fig 1: Code 4 Chart (1 of 2) - Crank Sensor Circuit

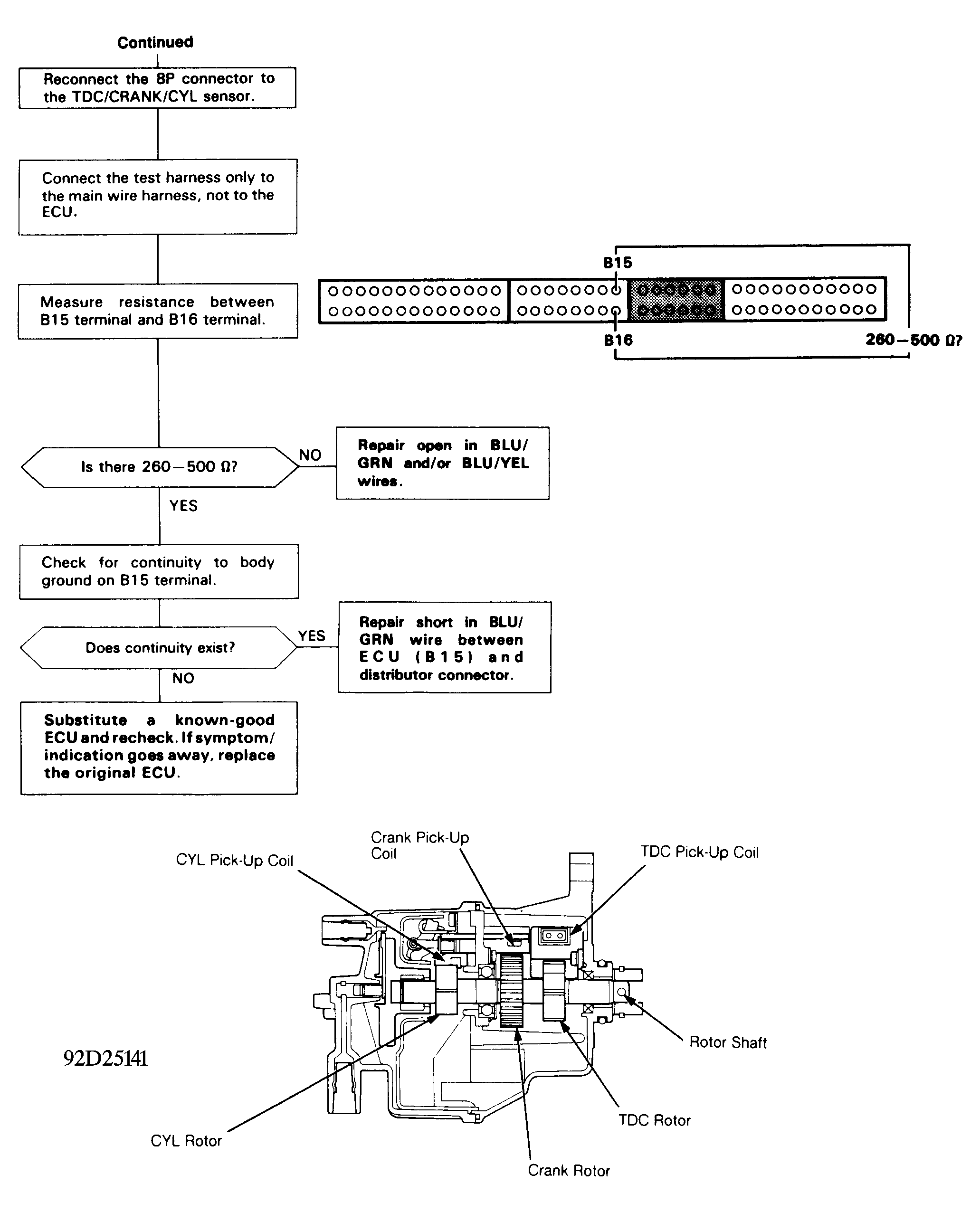

Fig 2: Code 4 Chart (2 of 2) - Crank Sensor Circuit
